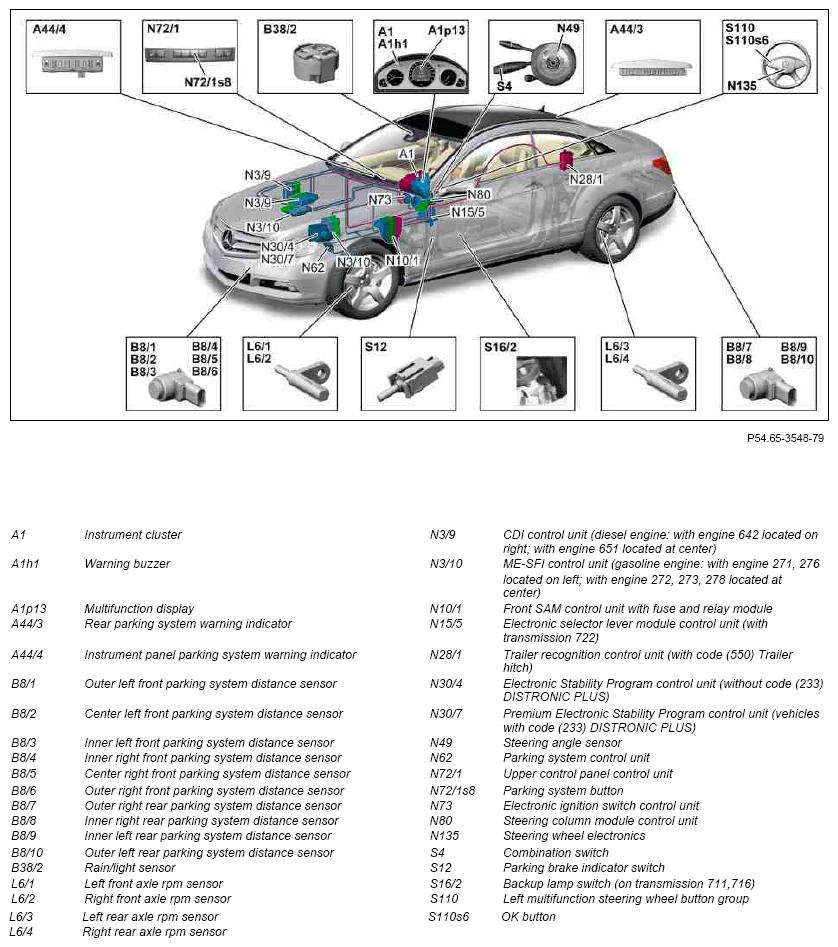

Overview of system components, parking system - GF54.65-P-9992CA
MODEL 207 up to model year 2014 with CODE 220 (PARKTRONIC) with CODE 498 (Japanese version)
MODEL 207 up to model year 2014 with CODE 230 (Advanced Parking Guidance) without CODE 498 (Japanese version)
Illustrated on model 207.3
| Component description for instrument cluster | A1 | GF54.30-P-6000CA | |
| Component description for CDI control unit | MODEL 207 with ENGINE 642.8 up to model year 2014 with CODE 220 (PARKTRONIC) with CODE 498 (Japanese version) MODEL 207 with ENGINE 642.8 up to model year 2014 with CODE 230 (Advanced Parking Guidance) without CODE 498 (Japanese version) N3/9 |
GF07.16-P-6000OG | |
| MODEL 207 with ENGINE 651.9 up to model year 2014 with CODE 220 (PARKTRONIC) with CODE 498 (Japanese version) MODEL 207 with ENGINE 651.9 up to model year 2014 with CODE 230 (Advanced Parking Guidance) without CODE 498 (Japanese version) N3/9 |
GF07.16-P-6000OM | ||
| Component description for ME-SFI (ME) control unit | MODEL 207 with ENGINE 271.8 up to model year 2014 with CODE 220 (PARKTRONIC) with CODE 498 (Japanese version) MODEL 207 with ENGINE 271.8 up to model year 2014 with CODE 230 (Advanced Parking Guidance) without CODE 498 (Japanese version) N3/10 |
GF07.61-P-6000MG | |
| MODEL 207 with ENGINE 272.9 (except 272.984) up to model year 2014 with CODE 220 (PARKTRONIC) with CODE 498 (Japanese version) MODEL 207 with ENGINE 272.9 (except 272.984) up to model year 2014 with CODE 230 (Advanced Parking Guidance) without CODE 498 (Japanese version) N3/10 |
GF07.61-P-6000MI | ||
| MODEL 207 with ENGINE 272.984 up to model year 2014 with CODE 220 (PARKTRONIC) with CODE 498 (Japanese version) MODEL 207 with ENGINE 272.984 up to model year 2014 with CODE 230 (Advanced Parking Guidance) without CODE 498 (Japanese version) N3/10 |
GF07.61-P-6000MIE | ||
| MODEL 207 with ENGINE 273.9 up to model year 2014 with CODE 220 (PARKTRONIC) with CODE 498 (Japanese version) MODEL 207 with ENGINE 273.9 up to model year 2014 with CODE 230 (Advanced Parking Guidance) without CODE 498 (Japanese version) N3/10 |
GF07.61-P-6000ML | ||
| MODEL 207 with ENGINE 276.9 up to model year 2014 with CODE 220 (PARKTRONIC) with CODE 498 (Japanese version) MODEL 207 with ENGINE 276.9 up to model year 2014 with CODE 230 (Advanced Parking Guidance) without CODE 498 (Japanese version) N3/10 |
GF07.61-P-6000MM | ||
| MODEL 207 with ENGINE 278.9 up to model year 2014 with CODE 220 (PARKTRONIC) with CODE 498 (Japanese version) MODEL 207 with ENGINE 278.9 up to model year 2014 with CODE 230 (Advanced Parking Guidance) without CODE 498 (Japanese version) N3/10 |
GF07.61-P-6000MMA | ||
| Component description for front SAM control unit with fuse and relay module | N10/1 | GF54.21-P-6070CA | |
| Component description for electronic selector lever module control unit | MODEL 207 with TRANSMISSION 722.6 up to model year 2012 with CODE 220 (PARKTRONIC) with CODE 498 (Japanese version) MODEL 207 with TRANSMISSION 722.6 up to model year 2012 with CODE 230 (Advanced Parking Guidance) without CODE 498 (Japanese version) N15/5 |
GF27.60-P-5163ACL | |
| MODEL 207 with TRANSMISSION 722.9 up to model year 2014 with CODE 220 (PARKTRONIC) with CODE 498 (Japanese version) MODEL 207 with TRANSMISSION 722.9 up to model year 2014 with CODE 230 (Advanced Parking Guidance) without CODE 498 (Japanese version) N15/5 |
GF27.60-P-5163AHC | ||
| Component description for trailer recognition control unit | MODEL 207 up to model year 2014 with CODE 220 (PARKTRONIC) with CODE 498 (Japanese version) with CODE 550 (Trailer coupling) MODEL 207 up to model year 2014 with CODE 230 (Advanced Parking Guidance) with CODE 550 (Trailer coupling) without CODE 498 (Japanese version) N28/1 |
GF31.19-P-4050CA | |
| Component description for Electronic Stability Program control unit | N30/4, N30/7 | GF42.45-P-5119CA | |
| Parking system control unit component description | GF54.65-P-5002CAM | ||
| Upper control panel control unit, component description | N72/1 | GF54.21-P-6040CA | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001CA | |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051CA | |
| Table of contents for function description, parking | GF54.65-P-0992CA |
