Overview of energy management system components - GF54.10-P-9990CAM
MODEL 207.3/4 as of model year 2014

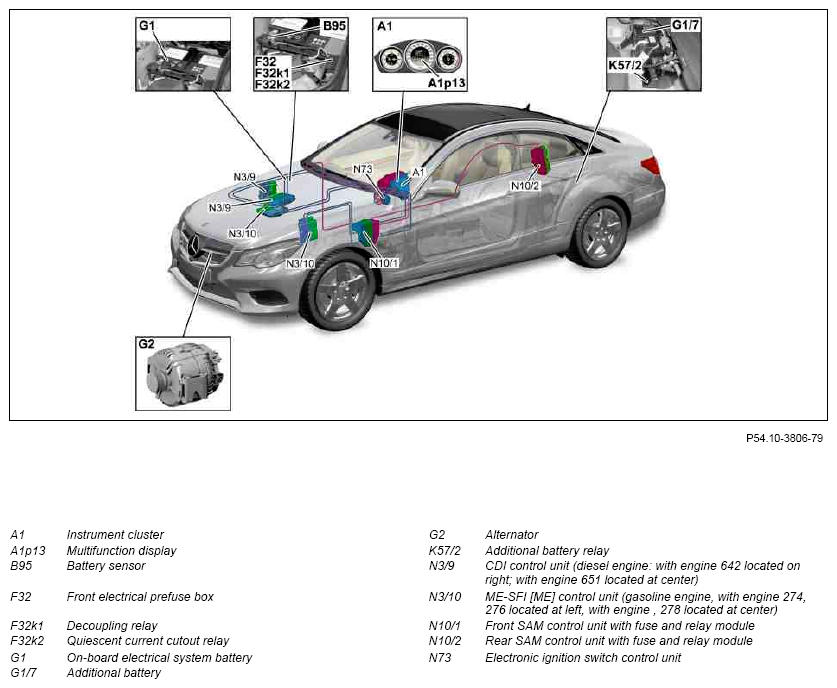

Illustration shows model 207.3
| Component description for instrument cluster | A1 | GF54.30-P-6000CA | |
| Component description for CDI control unit | MODEL 207.3/4 with ENGINE 642.8 as of model year 2014 N3/9 |
GF07.16-P-6000OG | |
| MODEL 207.3/4 with ENGINE 651.9 as of model year 2014 N3/9 |
GF07.16-P-6000OM | ||
| Component description for ME-SFI (ME) control unit | MODEL 207.3/4 with ENGINE 274.9 as of model year 2014 N3/10 |
GF07.61-P-6000MRB | |
| MODEL 207.3/4 with ENGINE 276.8 as of model year 2014 N3/10 |
GF07.61-P-6000MMP | ||
| MODEL 207.3/4 with ENGINE 276.9 as of model year 2014 N3/10 |
GF07.61-P-6000MM | ||
| MODEL 207.3/4 with ENGINE 278.9 as of model year 2014 N3/10 |
GF07.61-P-6000MMA | ||
| Component description for front SAM control unit with fuse and relay module | N10/1 | GF54.21-P-6070CA | |
| Component description for rear SAM control unit with fuse and relay module | N10/2 | GF54.21-P-6030CA | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001CA | |
| Table of contents for function description of energy management | GF54.10-P-0990CAM |
