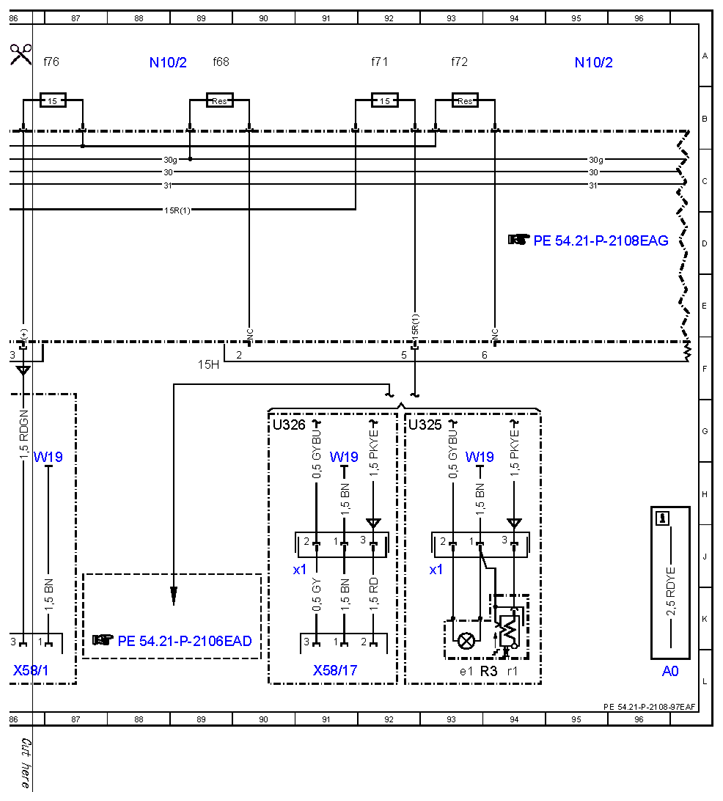

| A0 |
Color code key |
96L |

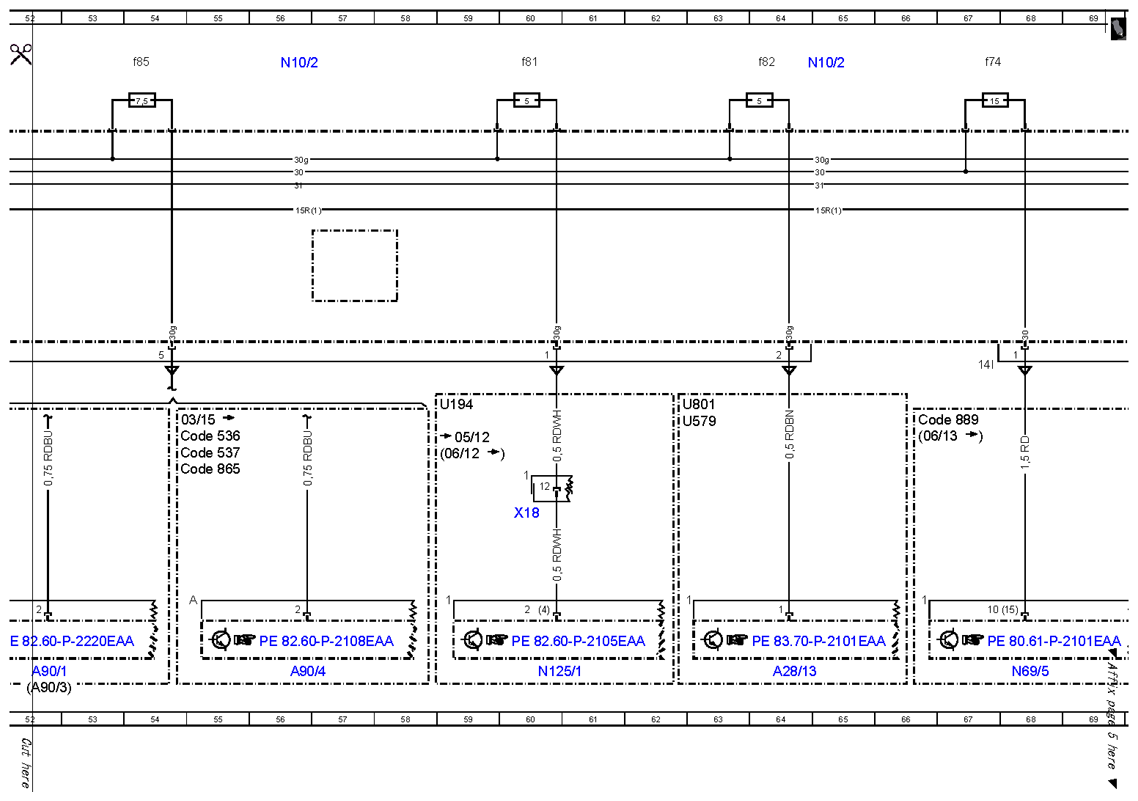

| A28/13 |
Compensator/cellular telephone system UMTS |
64L |
| A90/1 |
TV tuner (analog/digital) |
52L |
| A90/3 |
TV digital tuner |
52L |
| A90/4 |
Tuner unit |
56L |
| B84/3 |
Backup camera |
48L |

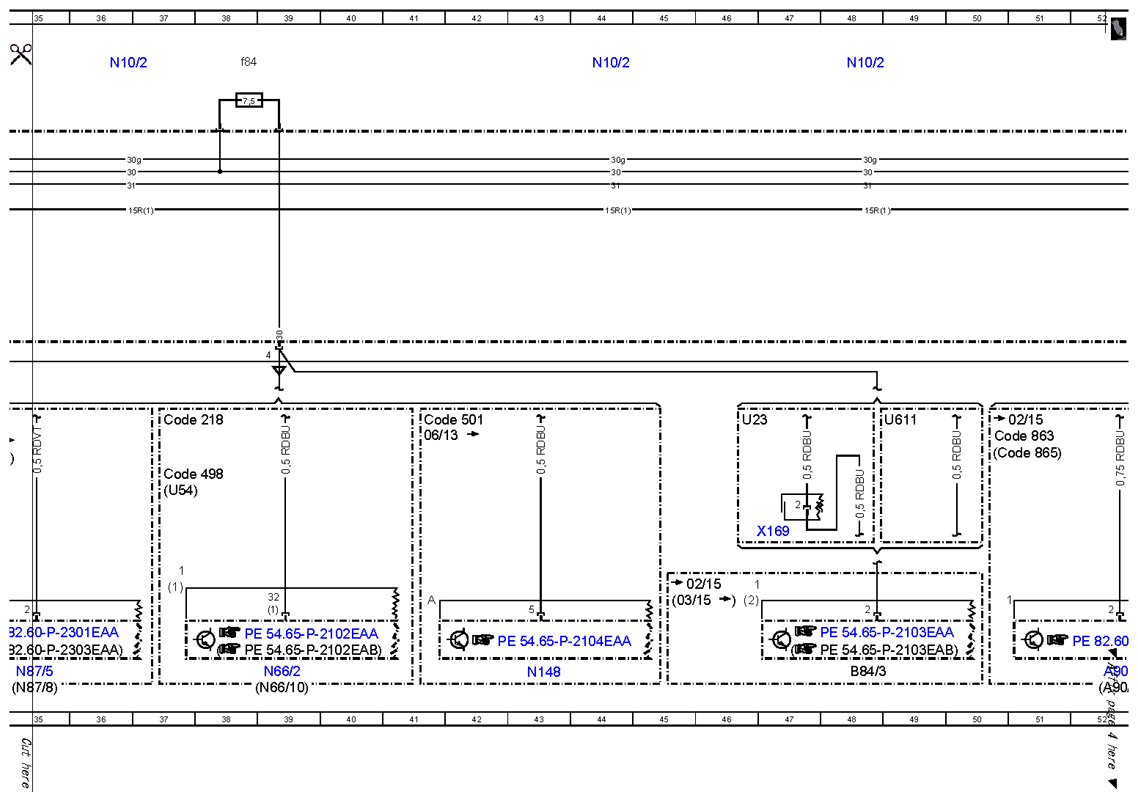

| Code 218 |
Backup camera |
37G |

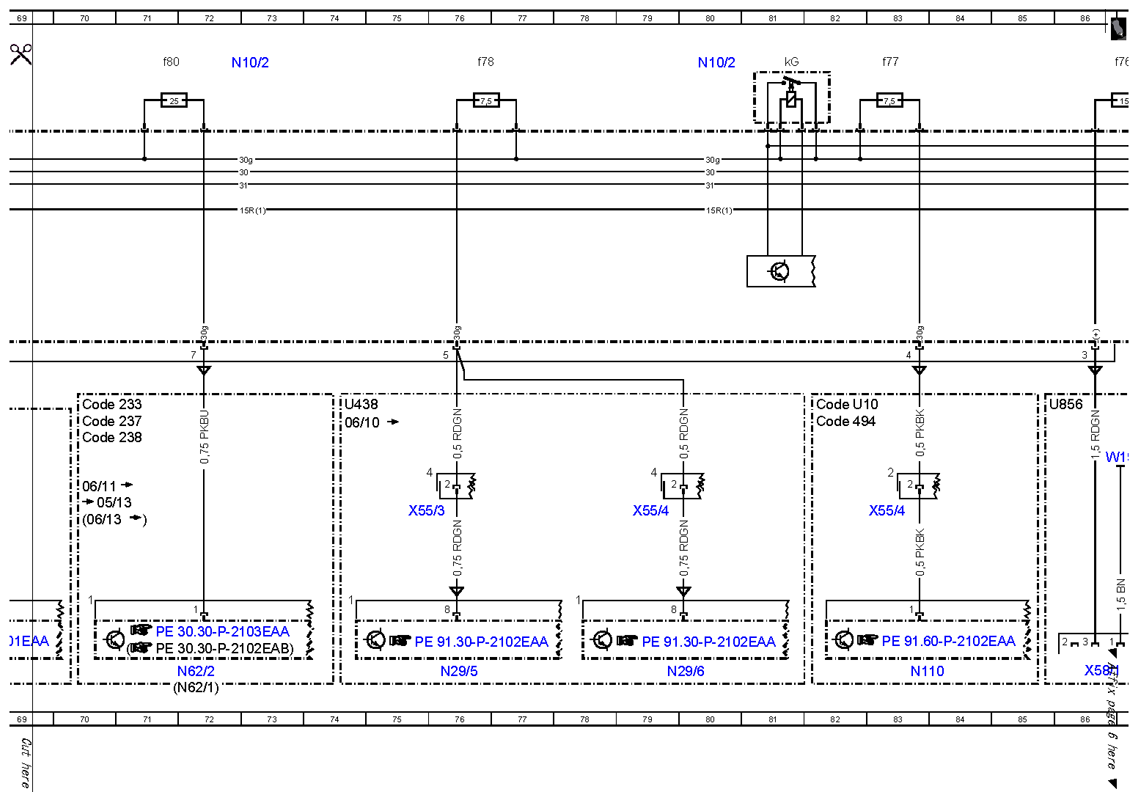

| Code 233 |
DISTRONIC PLUS |
70G |
| Code 237 |
Active Blind Spot Assist |
70G |
| Code 238 |
Active Lane Keeping Assist |
70G |

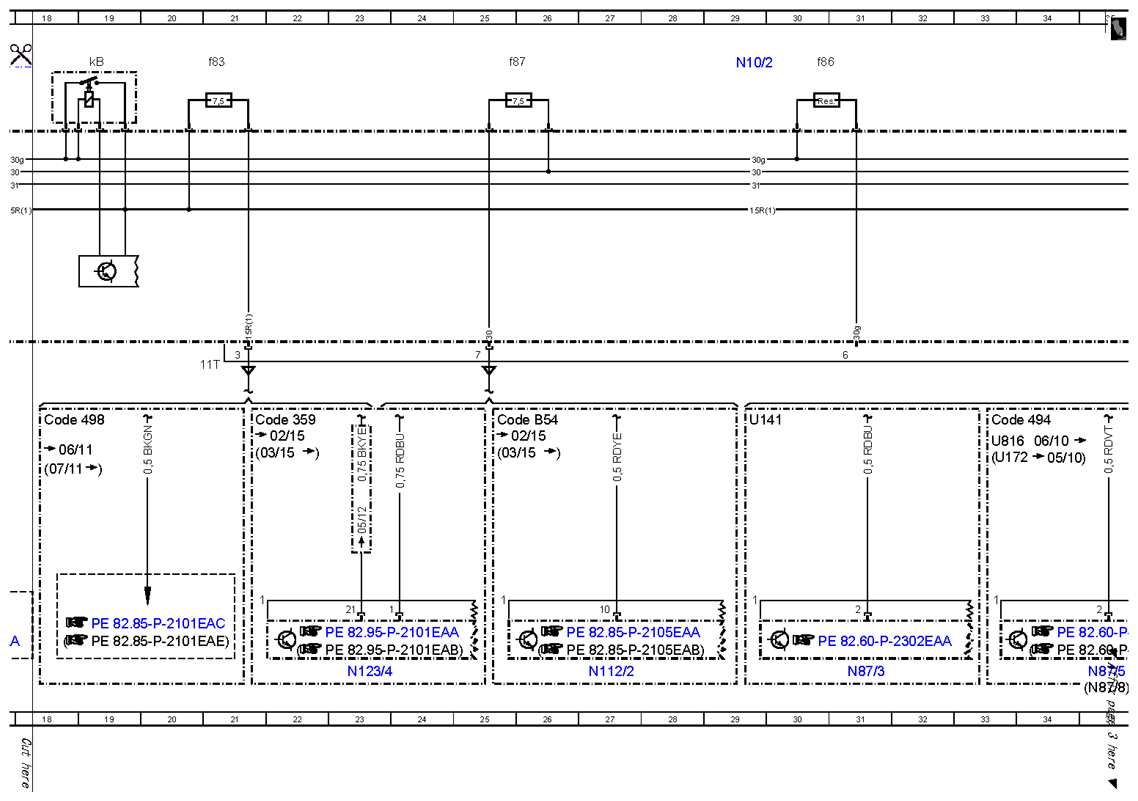

| Code 359 |
TELEAID emergency call system |
21G |
| Code 494 |
USA version |
33G |
| Code 494 |
USA version |
82G |
| Code 498 |
Japan version |
18G |
| Code 498 |
Japan version |
37H |
| Code 501 |
360 degree camera |
41G |
| Code 536 |
SIRIUS satellite radio |
54G |
| Code 537 |
Digital radio |
54G |
| Code 863 |
Digital/analog TV tuner |
50G |
| Code 865 |
TV tuner (digital) |
50G |
| Code 865 |
TV tuner (digital) |
54H |
| Code 889 |
KEYLESS-GO |
66G |

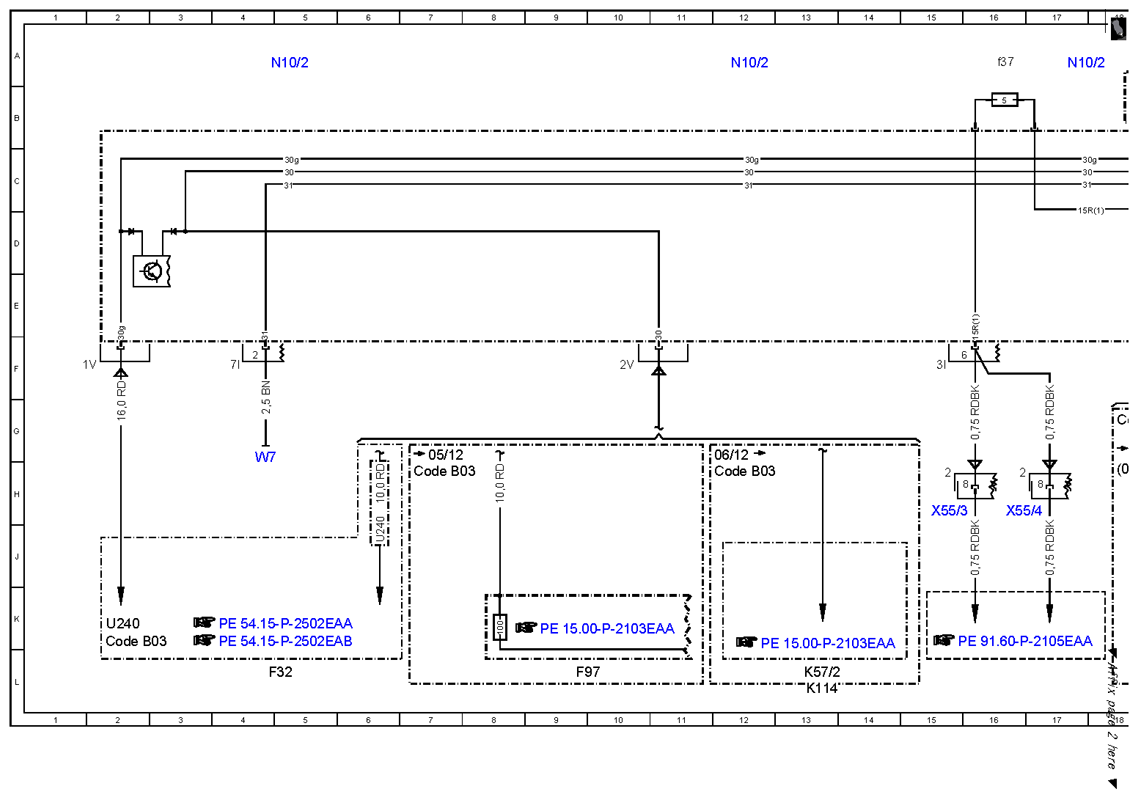

| Code B03 |
ECO start/stop function |
2K |
| Code B03 |
ECO start/stop function |
7H |
| Code B03 |
ECO start/stop function |
12H |
| Code B54 |
Live Traffic Information |
25G |
| Code U10 |
Weight sensing system (WSS) |
82G |
| F32 |
Front electrical prefuse box |
5L |
| F97 |
Rear SAM control unit with fuse and relay module circuit 30 fuse |
9L |
| K114 |
ECO start/stop function additional battery relay |
13L |
| K57/2 |
Additional battery relay |
13L |
| N10/2 |
Rear SAM control unit with fuse and relay module |
5A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
12A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
17A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
29A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
36A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
44A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
48A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
56A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
65A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
80A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
88A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
95A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
72A |
| N10/2f37 |
Fuse 37 |
16A |
| N10/2f68 |
Fuse 68 |
89A |
| N10/2f71 |
Fuse 71 |
92A |
| N10/2f72 |
Fuse 72 |
93A |
| N10/2f74 |
Fuse 74 |
67A |
| N10/2f76 |
Fuse 76 |
87A |
| N10/2f77 |
Fuse 77 |
83A |
| N10/2f78 |
Fuse 78 |
76A |
| N10/2f80 |
Fuse 80 |
71A |
| N10/2f81 |
Fuse 81 |
60A |
| N10/2f82 |
Fuse 82 |
64A |
| N10/2f83 |
Fuse 83 |
21A |
| N10/2f84 |
Fuse 84 |
38A |
| N10/2f85 |
Fuse 85 |
54A |
| N10/2f86 |
Fuse 86 |
30A |
| N10/2f87 |
Fuse 87 |
25A |
| N10/2kB |
Circuit 15R relay (1) |
19A |
| N10/2kG |
Circuit 15R relay (2) |
81A |
| N110 |
Weight Sensing System (WSS) control unit |
83L |
| N112/2 |
Telematics services communication module |
27L |
| N123/4 |
Emergency call system control unit |
23L |
| N125/1 |
Media interface control unit |
60L |
| N148 |
360° camera control unit |
43L |
| N29/5 |
Left front seat ventilation blower regulator |
76L |
| N29/6 |
Right front seat ventilation blower regulator |
79L |
| N62/1 |
Radar sensors control unit |
72L |
| N62/2 |
Video and radar sensor system control unit |
72L |
| N66/10 |
Backup camera voltage supply module |
39L |
| N66/2 |
Backup camera control unit |
39L |
| N69/5 |
KEYLESS-GO control unit |
68L |
| N87/3 |
Digital Audio Broadcasting control unit |
31L |
| N87/5 |
Satellite digital audio radio (SDAR) control unit |
35L |
| N87/8 |
SDAR control unit/high definition tuner |
35L |
| R3 |
Front cigarette lighter with ashtray illumination |
94L |
| R3e1 |
Ashtray illumination |
93L |
| R3r1 |
Cigarette lighter heating element |
94L |
| R3x1 |
Front cigarette lighter with ashtray illumination electrical connector |
93J |
| U141 |
Valid for Digital Audio Broadcasting |
29G |
| U172 |
Valid for high-definition tuner control unit |
33H |
| U194 |
Valid for AUX jack |
59G |
| U23 |
Valid for convertibles |
46G |
| U240 |
Valid for all except ECO start/stop function |
2K |
| U240 |
Valid for all except ECO start/stop function |
6J |
| U325 |
Valid for smoker package |
92G |
| U326 |
Valid for nonsmoker package |
90G |
| U438 |
Valid for seat ventilation |
74G |
| U54 |
Valid for all except Japan |
37H |
| U579 |
Valid for stationary heater |
62G |
| U611 |
Valid for Coupe |
49G |
| U801 |
Valid for mobile phone preinstallation with universal interface |
62G |
| U816 |
Valid for satellite digital audio radio (SDAR) |
33G |
| U856 |
Valid for rear socket |
85G |
| W19 |
Right front seat crossmember ground point |
86H |
| W19 |
Right front seat crossmember ground point |
91H |
| W19 |
Right front seat crossmember ground point |
93H |
| W7 |
Right wheelhouse trunk ground point |
4H |
| X169 |
Backup camera electrical connector |
47J |
| X18 |
Vehicle interior and harness for taillamp electrical connector |
60H |
| X55/3 |
Driver seat connector block |
15H |
| X55/3 |
Driver seat connector block |
75H |
| X55/4 |
Front passenger seat connector block |
16H |
| X55/4 |
Front passenger seat connector block |
79H |
| X55/4 |
Front passenger seat connector block |
83H |
| X58/1 |
Vehicle interior power outlet |
86L |
| X58/17 |
Front vehicle interior power outlet |
91L |
| X58/17x1 |
Electrical connector/front vehicle interior socket |
91J |
