| A0 |
Color code key |
64L |

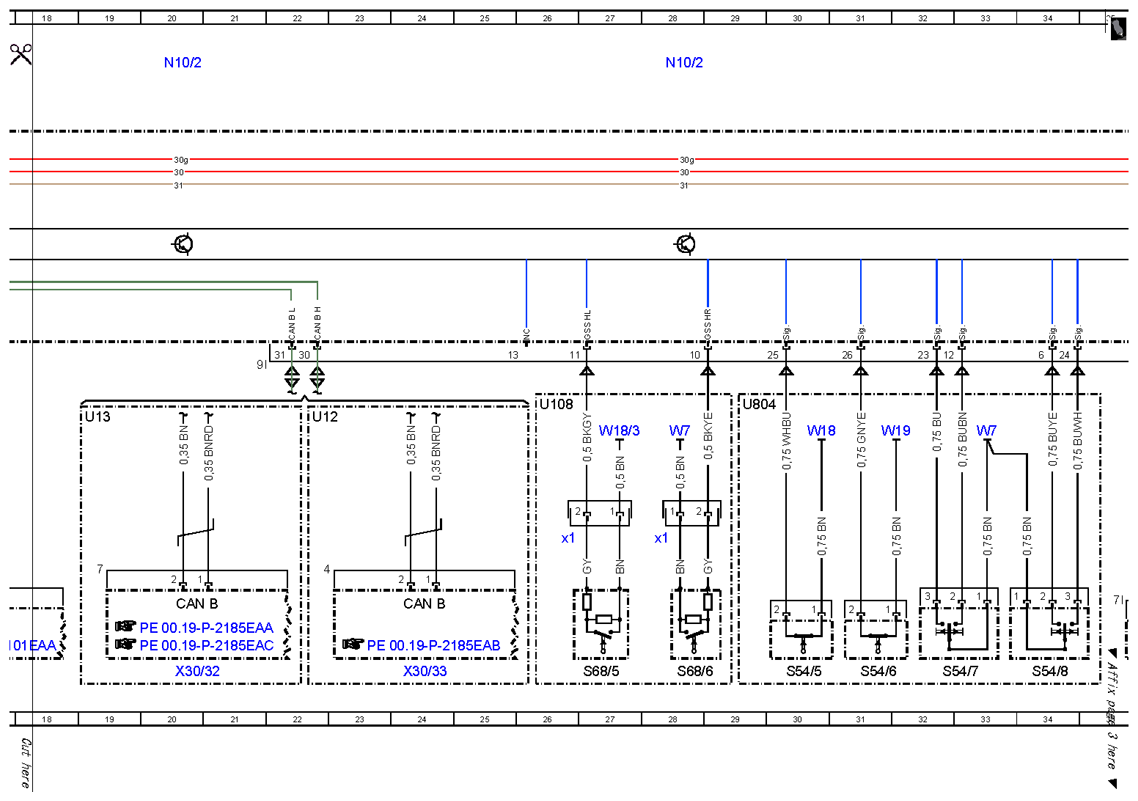

| CAN B |
Interior CAN |
17K |
| CAN B |
Interior CAN |
20K |
| CAN B |
Interior CAN |
24K |

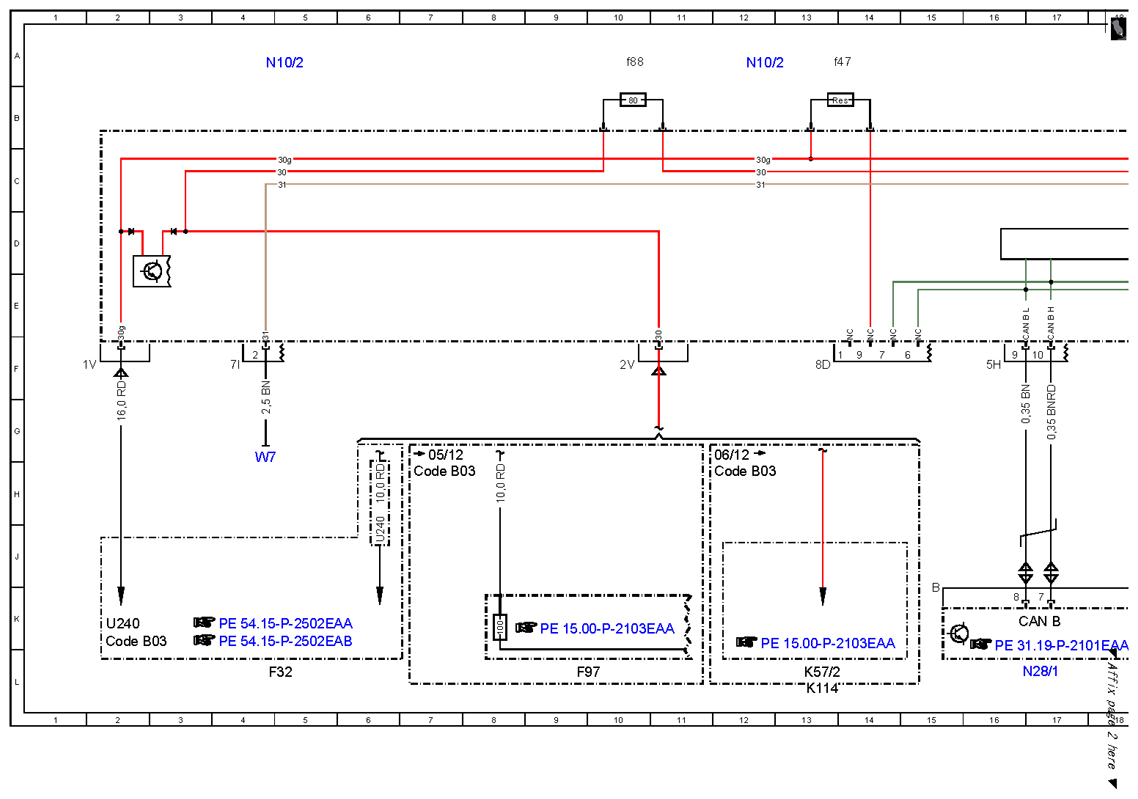

| Code B03 |
ECO start/stop function |
47G |
| Code B03 |
ECO start/stop function |
2K |
| Code B03 |
ECO start/stop function |
7H |
| Code B03 |
ECO start/stop function |
12H |
| F32 |
Front electrical prefuse box |
49L |
| F32 |
Front electrical prefuse box |
5L |
| F97 |
Rear SAM control unit with fuse and relay module circuit 30 fuse |
9L |
| K114 |
ECO start/stop function additional battery relay |
13L |
| K57/2 |
Additional battery relay |
13L |
| N10/1 |
Front SAM control unit with fuse and relay module |
37L |
| N10/2 |
Rear SAM control unit with fuse and relay module |
5A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
20A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
28A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
36A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
44A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
52A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
60A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
12A |
| N10/2f47 |
Fuse 47 |
13A |
| N10/2f88 |
Fuse 88 |
10A |
| N28/1 |
Trailer recognition control unit |
17L |

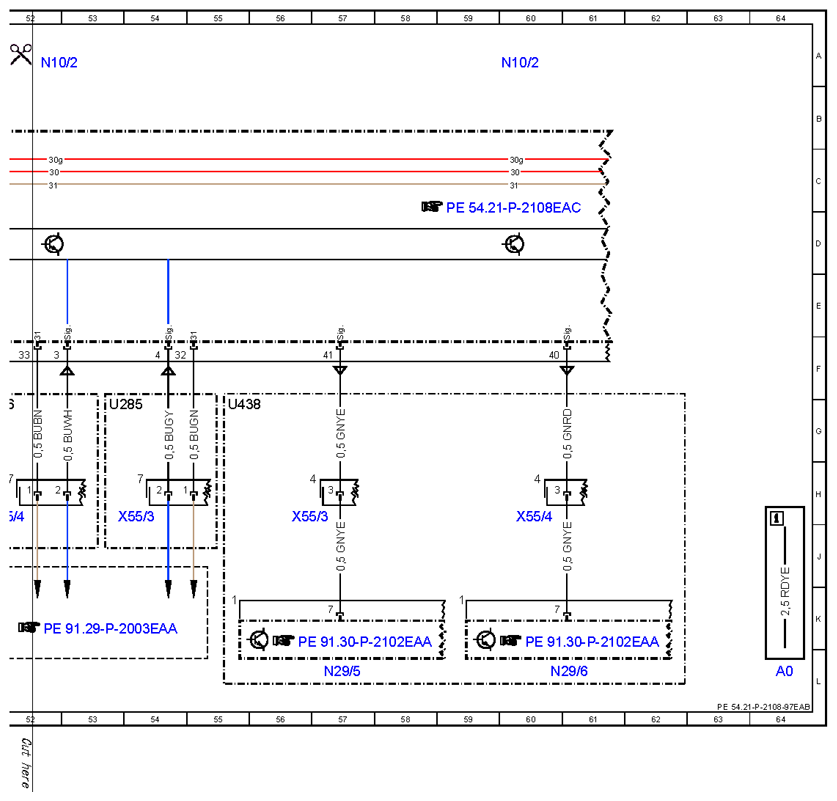

| N29/5 |
Left front seat ventilation blower regulator |
57L |
| N29/6 |
Right front seat ventilation blower regulator |
60L |

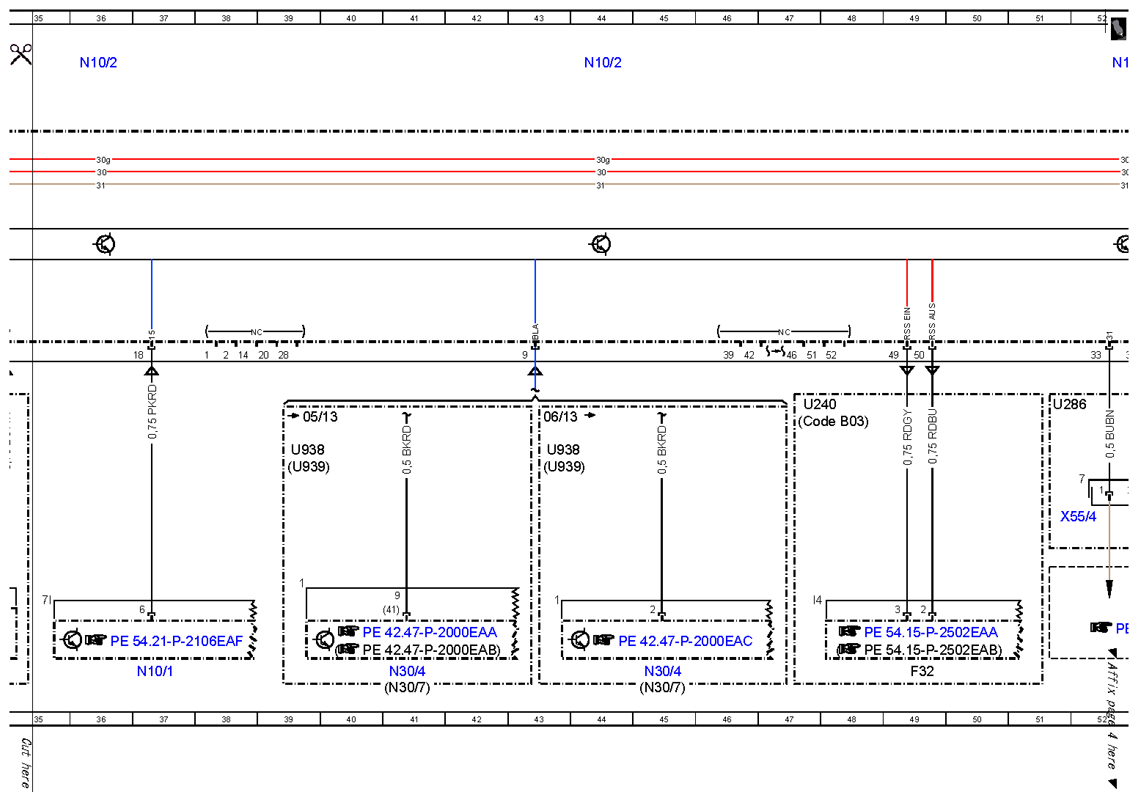

| N30/4 |
Electronic Stability Program control unit |
41L |
| N30/4 |
Electronic Stability Program control unit |
45L |
| N30/7 |
Premium Electronic Stability Program control unit |
41L |
| N30/7 |
Premium Electronic Stability Program control unit |
45L |
| S54/5 |
Left rear backrest inclination switch |
30L |
| S54/6 |
Right rear backrest inclination switch |
31L |
| S54/7 |
Left rear backrest lock switch |
32L |
| S54/8 |
Right rear backrest lock switch |
34L |
| S68/5 |
Left rear seat belt buckle switch |
27L |
| S68/5x1 |
Left rear seat belt buckle switch electrical connector |
26J |
| S68/6 |
Right rear seat belt buckle switch |
28L |
| S68/6x1 |
Right rear seat belt buckle switch electrical connector |
28J |
| U108 |
Valid for rear seat belt buckles |
26G |
| U108 |
Valid for rear seat belt buckles |
26G |
| U12 |
Valid for left-hand drive vehicles |
22G |
| U13 |
Valid for right-hand drive vehicles |
19G |
| U240 |
Valid for all except ECO start/stop function |
47G |
| U240 |
Valid for all except ECO start/stop function |
2K |
| U240 |
Valid for all except ECO start/stop function |
6J |
| U285 |
Valid for partially electric driver seat adjustment |
53G |
| U286 |
Valid for partially electric front passenger seat adjustment |
51G |
| U438 |
Valid for seat ventilation |
55G |
| U804 |
Valid for rear backrest adjustment |
29G |
| U938 |
Valid for ESP Basic |
39G |
| U938 |
Valid for ESP Basic |
43G |
| U939 |
Valid for ESP Premium |
39H |
| U939 |
Valid for ESP Premium |
43H |
| W18 |
Left front seat crossmember ground point |
30G |
| W18/3 |
Left front seat crossmember ground point 2 |
27G |
| W19 |
Right front seat crossmember ground point |
31G |
| W7 |
Right wheelhouse trunk ground point |
28G |
| W7 |
Right wheelhouse trunk ground point |
33G |
| W7 |
Right wheelhouse trunk ground point |
4H |
| X30/32 |
Left vehicle floor interior CAN voltage distributor electrical connector |
20L |
| X30/33 |
Right vehicle floor interior CAN voltage distributor electrical connector |
24L |
| X55/3 |
Driver seat connector block |
54H |
| X55/3 |
Driver seat connector block |
56H |
| X55/4 |
Front passenger seat connector block |
52H |
| X55/4 |
Front passenger seat connector block |
60H |
