| A0 |
Color code key |
32L |
| A2 |
Radio |
12L |
| A2 |
Radio |
25L |
| A40/3 |
COMAND control unit |
12L |
| A40/3 |
COMAND control unit |
25L |
| B84/3 |
Backup camera |
4A |
| B84/3 |
Backup camera |
13A |
| B84/3 |
Backup camera |
21A |
| CAN E2 |
Chassis CAN 2 |
7K |
| CAN E2 |
Chassis CAN 2 |
20K |
| Code 505 |
Radio 20 NTG5, non-navigation-capable |
9D |
| Code 505 |
Radio 20 NTG5, non-navigation-capable |
22D |
| Code 522 |
Audio 20 radio |
9E |
| Code 522 |
Audio 20 radio |
22E |
| Code 531 |
COMAND APS |
9D |
| Code 531 |
COMAND APS |
22D |
| N10/2 |
Rear SAM control unit with fuse and relay module |
3L |
| N10/2 |
Rear SAM control unit with fuse and relay module |
17L |
| N10/2f84 |
Fuse 84 |
2L |
| N10/2f84 |
Fuse 84 |
16L |
| U23 |
Valid for convertibles |
1A |
| U611 |
Valid for Coupe |
14A |

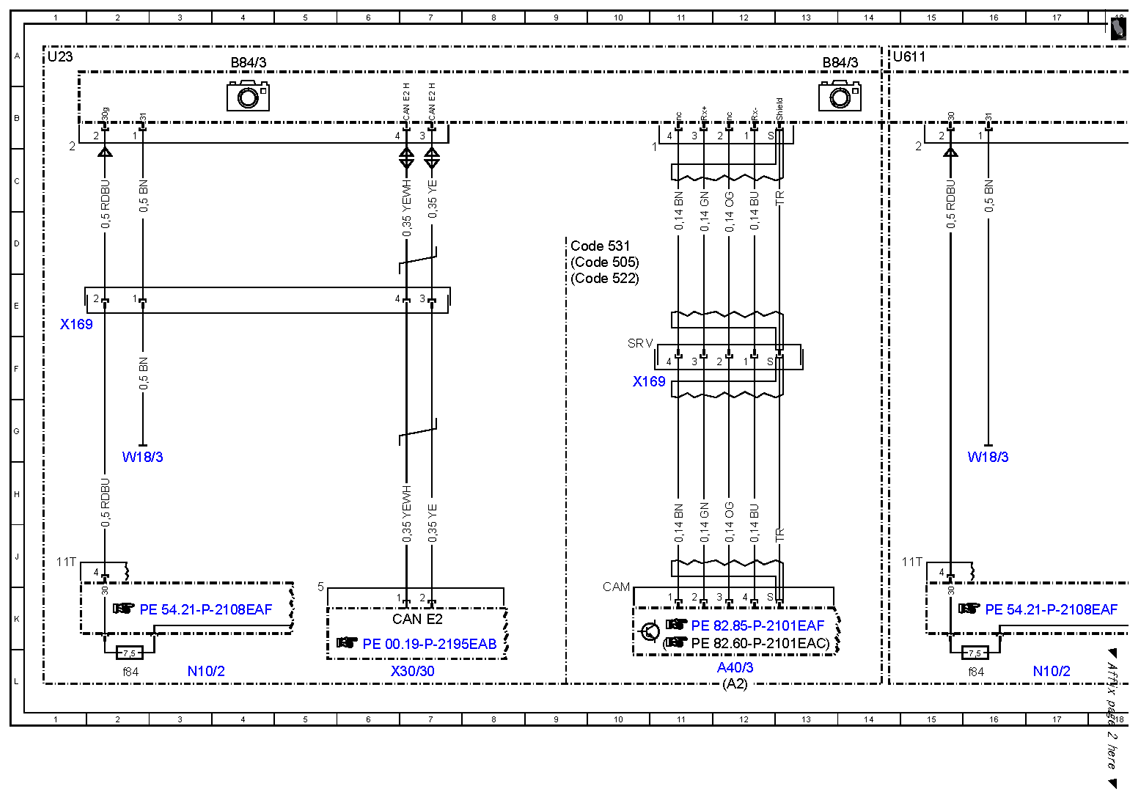

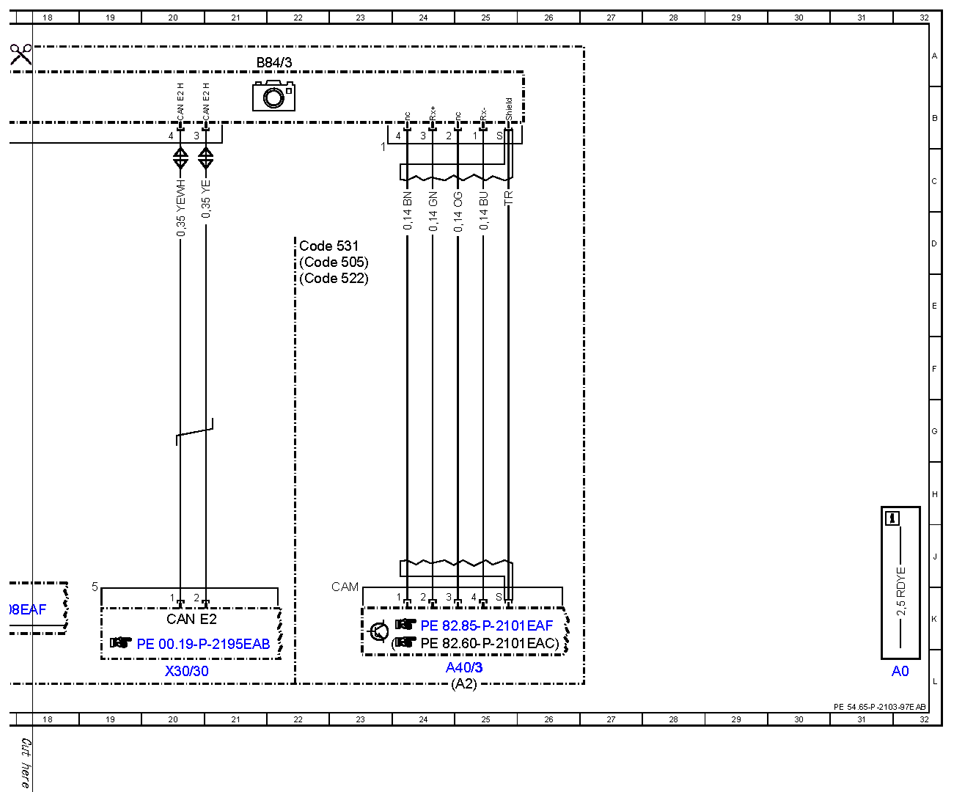

| W18/3 |
Left front seat crossmember ground point 2 |
2H |
| W18/3 |
Left front seat crossmember ground point 2 |
16H |
| X169 |
Backup camera electrical connector |
1E |
| X169 |
Backup camera electrical connector |
11F |
| X30/30 |
Vehicle floor chassis CAN voltage distributor electrical connector |
7L |
| X30/30 |
Vehicle floor chassis CAN voltage distributor electrical connector |
20L |
