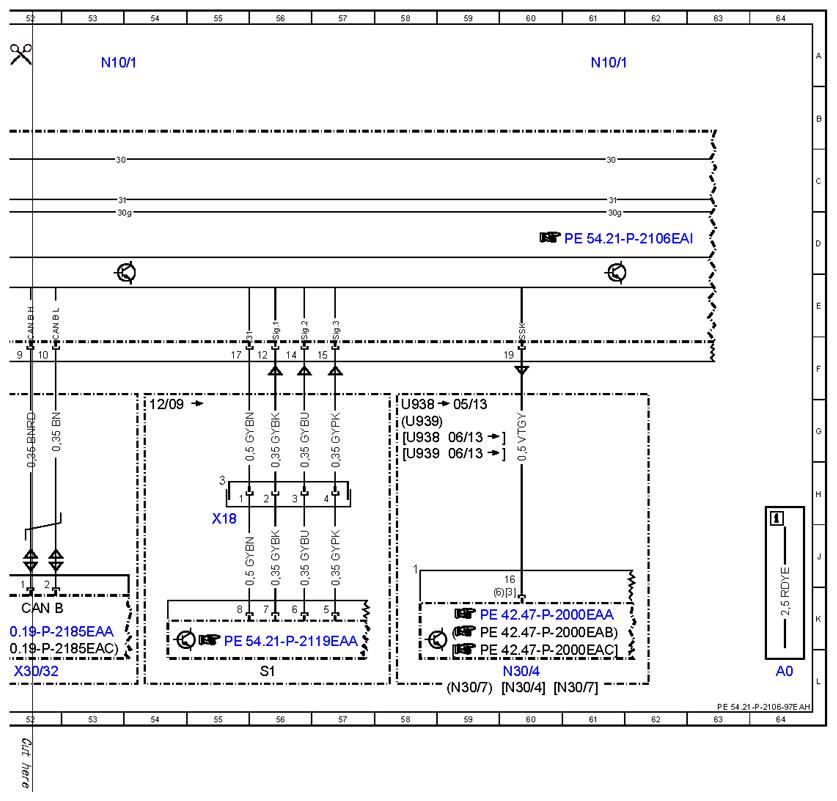

| A0 |
Color code key |
64L |

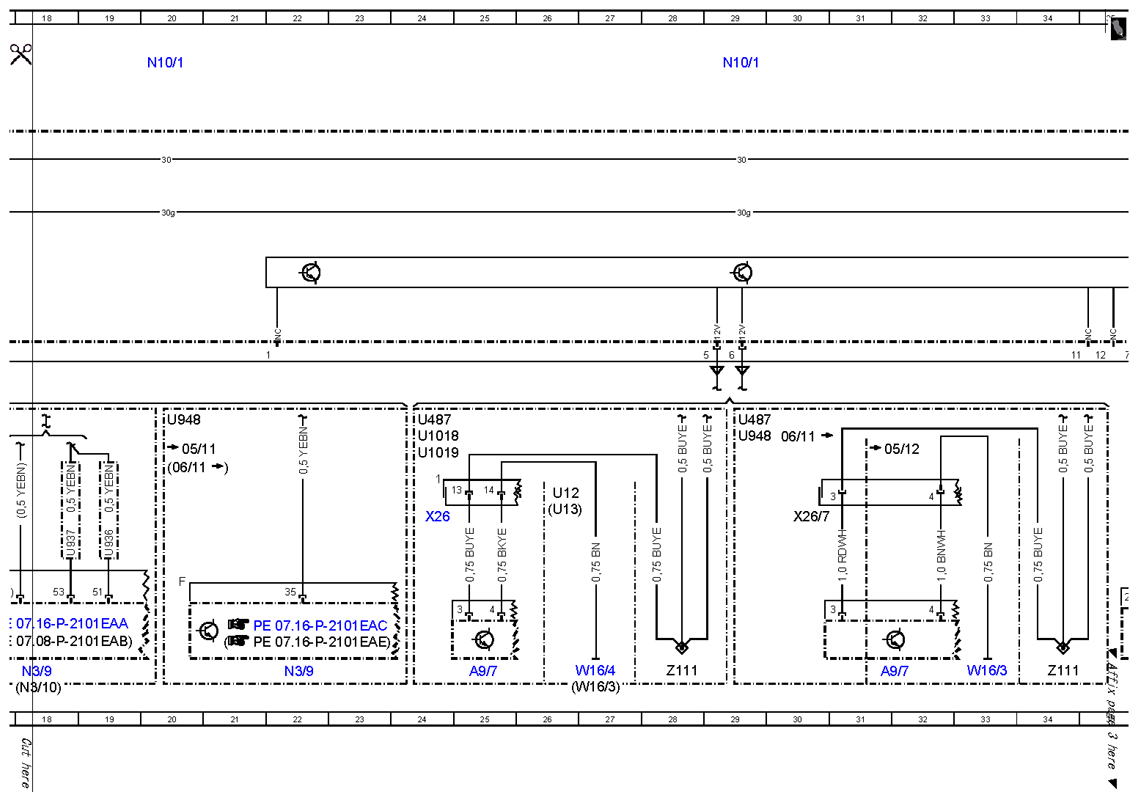

| A9/7 |
Refrigerant compressor with magnetic clutch |
25L |
| A9/7 |
Refrigerant compressor with magnetic clutch |
31L |

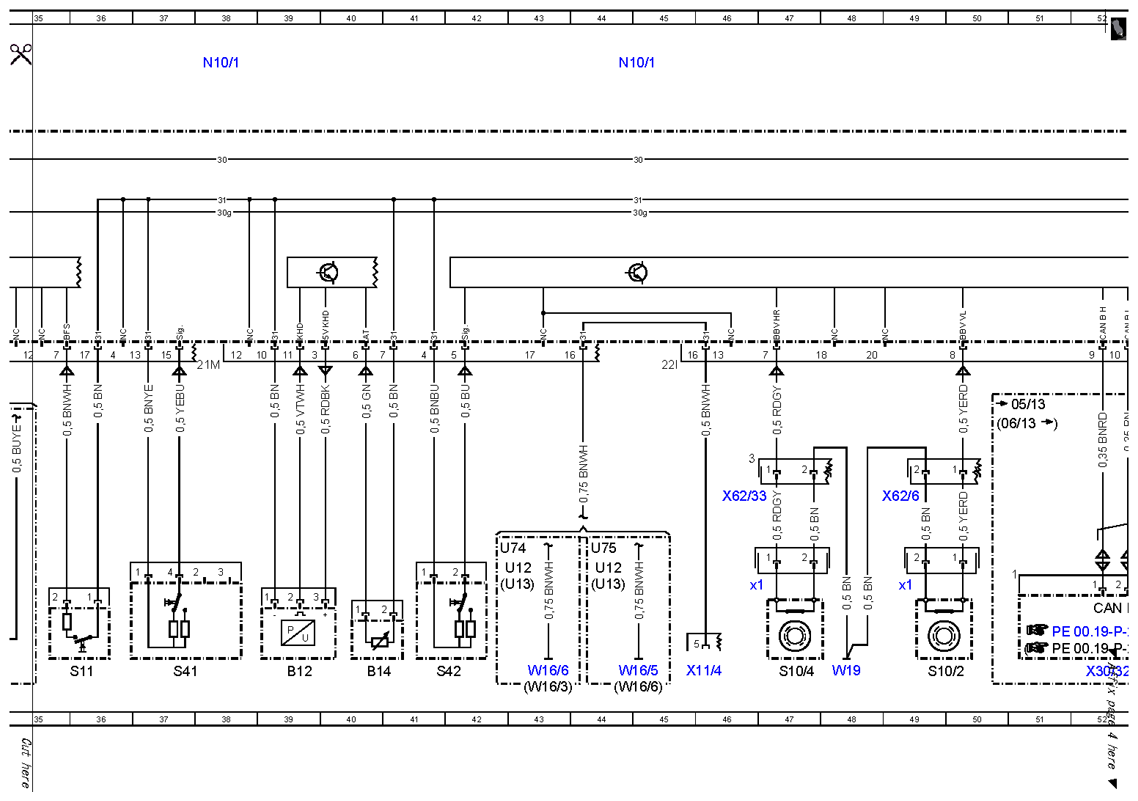

| B12 |
Refrigerant pressure sensor |
39L |
| B14 |
Outside temperature sensor |
40L |
| CAN B |
Interior CAN |
52K |

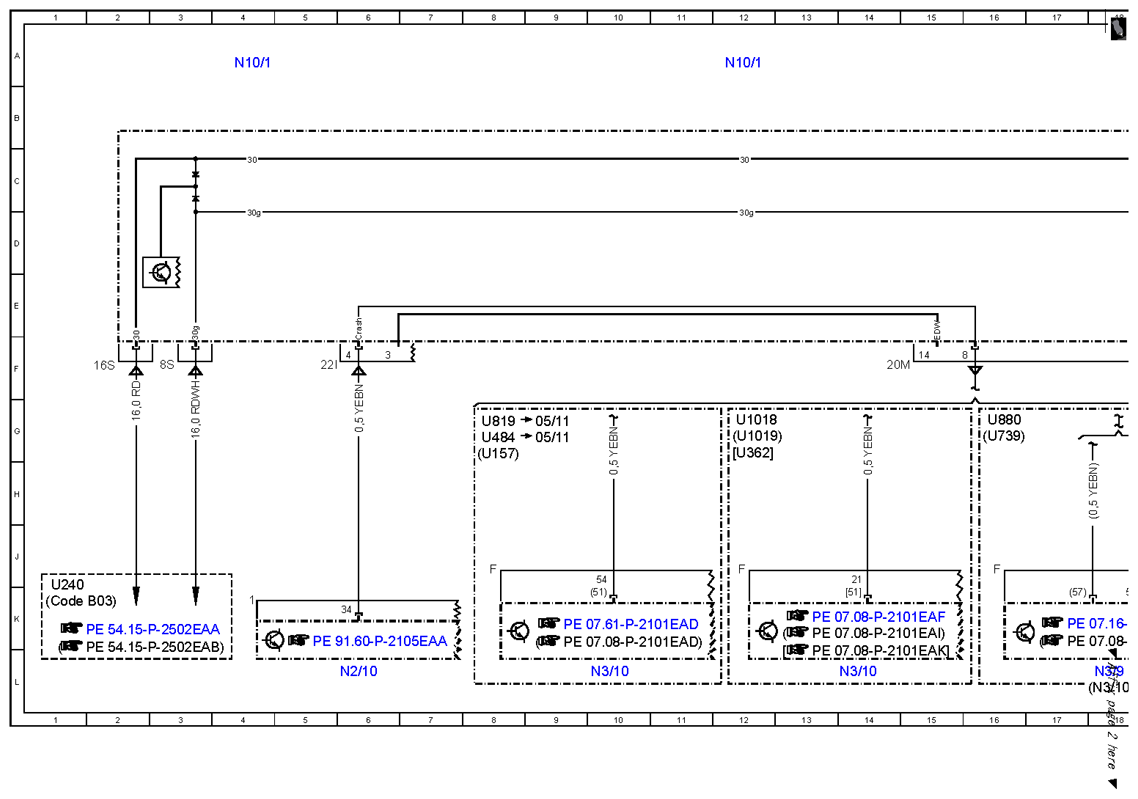

| Code B03 |
ECO start/stop function |
1K |
| N10/1 |
Front SAM control unit with fuse and relay module |
4A |
| N10/1 |
Front SAM control unit with fuse and relay module |
12A |
| N10/1 |
Front SAM control unit with fuse and relay module |
20A |
| N10/1 |
Front SAM control unit with fuse and relay module |
29A |
| N10/1 |
Front SAM control unit with fuse and relay module |
38A |
| N10/1 |
Front SAM control unit with fuse and relay module |
44A |
| N10/1 |
Front SAM control unit with fuse and relay module |
53A |
| N10/1 |
Front SAM control unit with fuse and relay module |
61A |
| N2/10 |
Supplemental restraint system control unit |
6L |
| N3/10 |
ME-SFI [ME] control unit |
10L |
| N3/10 |
ME-SFI [ME] control unit |
14L |
| N3/10 |
ME-SFI [ME] control unit |
18L |
| N3/9 |
CDI control unit |
22L |
| N3/9 |
CDI control unit |
18L |
| N30/4 |
Electronic Stability Program control unit |
60L |
| N30/4 |
Electronic Stability Program control unit |
60L |
| N30/7 |
Premium Electronic Stability Program control unit |
61L |
| N30/7 |
Premium Electronic Stability Program control unit |
59L |
| S1 |
Exterior lights switch |
56L |
| S10/2 |
Right front brake wear sensor |
49L |
| S10/2x1 |
Right front brake wear sensor electrical connector |
49K |
| S10/4 |
Right rear brake wear sensor |
47L |
| S10/4x1 |
Right rear brake wear sensor electrical connector |
46K |
| S11 |
Brake fluid level switch |
36L |
| S41 |
Coolant level switch |
37L |
| S42 |
Windshield washer system fluid level switch |
41L |
| U1018 |
Valid for gasoline engine 276 |
12G |
| U1018 |
Valid for gasoline engine 276 |
24G |
| U1019 |
Valid for gasoline engine 278 |
12G |
| U1019 |
Valid for gasoline engine 278 |
24G |
| U12 |
Valid for left-hand drive vehicles |
26H |
| U12 |
Valid for left-hand drive vehicles |
42J |
| U12 |
Valid for left-hand drive vehicles |
44J |
| U13 |
Valid for right-hand drive vehicles |
26H |
| U13 |
Valid for right-hand drive vehicles |
42K |
| U13 |
Valid for right-hand drive vehicles |
44K |
| U157 |
Valid for combustion engine 272 DE |
8G |
| U240 |
Valid for all except ECO start/stop function |
1K |
| U362 |
Valid for gasoline engine 274 |
12G |
| U484 |
Valid for gasoline engine 273 |
8G |
| U487 |
Valid for refrigerant compressor with magnetic clutch |
24G |
| U487 |
Valid for refrigerant compressor with magnetic clutch |
29G |
| U739 |
Valid for gasoline engine 271 DE |
16G |
| U74 |
Valid for diesel engines |
42J |
| U75 |
Valid for gasoline engines |
44J |
| U819 |
Valid for gasoline engine 272 |
8G |
| U880 |
Valid for diesel engine 642 |
16G |
| U936 |
Valid for increased engine power |
19J |
| U937 |
Valid for all except increased engine power |
18J |
| U938 |
Valid for ESP Basic |
58G |
| U938 |
Valid for ESP Basic |
58G |
| U939 |
Valid for ESP Premium |
58G |
| U939 |
Valid for ESP Premium |
58G |
| U948 |
Valid for diesel engine 651 |
20G |
| U948 |
Valid for diesel engine 651 |
29G |
| W16/3 |
Left major assembly compartment ground point |
27L |
| W16/3 |
Left major assembly compartment ground point |
33L |
| W16/3 |
Left major assembly compartment ground point |
43L |
| W16/4 |
Right wheelhouse ground point |
27L |
| W16/5 |
Left major assembly compartment electronics ground point |
44L |
| W16/6 |
Right major assembly compartment ground point |
43L |
| W16/6 |
Right major assembly compartment ground point |
44L |
| W19 |
Right front seat crossmember ground point |
48L |
| X11/4 |
Diagnostic connector |
46L |
| X18 |
Vehicle interior and harness for taillamp electrical connector |
55H |
| X26 |
Interior and engine wiring harness electrical connector |
24H |
| X26/7 |
Rear engine compartment electrical connector |
30H |
| X30/32 |
Left vehicle floor interior CAN voltage distributor electrical connector |
52L |
| X62/33 |
Rear axle electrical connector, right distributor |
46H |
| X62/6 |
Front axle electrical connector, right distributor |
49H |
| Z111 |
Air conditioning 12 Volt connector sleeve (1) |
28L |
| Z111 |
Air conditioning 12 Volt connector sleeve (1) |
34L |
