Wiring diagram of front SAM control unit with fuse and relay module (N10/1) - PE54.21-P-2106-97EAC

Code: Designation: Position:
A0 Color code key 88L
A80 Intelligent servo module for DIRECT SELECT 74L
Code 580 Automatic air conditioning 46H
Code 581 Comfort automatic air conditioning 46J
Code 929 Engine for ethanol fuel 62H
Code B03 ECO start/stop function 1K
M4/7 Combustion engine and air conditioning with integrated control fan motor 4L
N10/1 Front SAM control unit with fuse and relay module 4A
N10/1 Front SAM control unit with fuse and relay module 12A
N10/1 Front SAM control unit with fuse and relay module 20A
N10/1 Front SAM control unit with fuse and relay module 28A
N10/1 Front SAM control unit with fuse and relay module 36A
N10/1 Front SAM control unit with fuse and relay module 45A
N10/1 Front SAM control unit with fuse and relay module 52A
N10/1 Front SAM control unit with fuse and relay module 60A
N10/1 Front SAM control unit with fuse and relay module 68A
N10/1 Front SAM control unit with fuse and relay module 77A
N10/1f15 Fuse 15 81A
N10/1f22 Fuse 22 5A
N10/1f33 Fuse 33 54A
N10/1f34 Fuse 34 61A
N10/1f8 Fuse 8 82A
N10/1kN Engine circuit 87 relay 6A
N10/1kR Chassis circuit 87 relay 43A
N118 Fuel pump control unit 59L
N118 Fuel pump control unit 64L
N15/3 Electronic transmission control control unit 51L
N2/10 Supplemental restraint system control unit 81L
N3/10 ME-SFI [ME] control unit 28L
N3/10 ME-SFI [ME] control unit 32L
N3/10 ME-SFI [ME] control unit 36L
N3/10 ME-SFI [ME] control unit 36L
N3/9 CDI control unit 40L
N3/9 CDI control unit 44L
N73 Electronic ignition switch control unit 78L
S16/2 Backup lamp switch 66L
U1018 Valid for gasoline engine 276 12J
U1018 Valid for gasoline engine 276 18G
U1018 Valid for gasoline engine 276 26G
U1018 Valid for gasoline engine 276 62H
U1018 Valid for gasoline engine 276 61G
U1019 Valid for gasoline engine 278 11J
U1019 Valid for gasoline engine 278 17G
U1019 Valid for gasoline engine 278 26G
U1019 Valid for gasoline engine 278 61G
U157 Valid for combustion engine 272 DE 8J
U157 Valid for combustion engine 272 DE 22G
U157 Valid for combustion engine 272 DE 34G
U157 Valid for combustion engine 272 DE 57G
U19 Valid for standard equipment 64H
U24 Valid for manual transmission 66G
U240 Valid for all except ECO start/stop function 1K
U362 Valid for gasoline engine 274 11J
U362 Valid for gasoline engine 274 17G
U362 Valid for gasoline engine 274 26G
U484 Valid for gasoline engine 273 9J
U484 Valid for gasoline engine 273 22G
U484 Valid for gasoline engine 273 30G
U484 Valid for gasoline engine 273 57H
U490 Valid for 7-speed automatic transmission 53G
U527 Valid for electronic transmission control 50G
U739 Valid for gasoline engine 271 DE 5J
U739 Valid for gasoline engine 271 DE 21G
U739 Valid for gasoline engine 271 DE 34G
U739 Valid for gasoline engine 271 DE 57G
U819 Valid for gasoline engine 272 9J
U819 Valid for gasoline engine 272 22G
U819 Valid for gasoline engine 272 30G
U819 Valid for gasoline engine 272 57G
U880 Valid for diesel engine 642 6J
U880 Valid for diesel engine 642 19G
U880 Valid for diesel engine 642 38G
U880 Valid for diesel engine 642 57H
U880 Valid for diesel engine 642 68G
U936 Valid for increased engine power 19K
U937 Valid for all except increased engine power 19J
U948 Valid for diesel engine 651 5J
U948 Valid for diesel engine 651 14J
U948 Valid for diesel engine 651 25G
U948 Valid for diesel engine 651 42G
U948 Valid for diesel engine 651 57H
U948 Valid for diesel engine 651 68G
W15/7 Right front footwell ground point 67H
X26 Interior and engine wiring harness electrical connector 18J
X26 Interior and engine wiring harness electrical connector 21J
X26 Interior and engine wiring harness electrical connector 20J
X26 Interior and engine wiring harness electrical connector 25J
X26 Interior and engine wiring harness electrical connector 24J
Y3/8 Fully integrated transmission control control unit 55L
Y3/8 Fully integrated transmission control control unit 69L
Z7/2 Circuit 87 connector sleeve, fuel quality sensor 63J
Z7/36z1 Circuit 87 M2e connector sleeve 21L
Z7/36z1 Circuit 87 M2e connector sleeve 18L
Z7/36z1 Circuit 87 M2e connector sleeve 24L
Z7/36z2 Circuit 87 M2e connector sleeve 24L
Z7/5z1 Circuit 87 connector sleeve 20L
Z7/5z2 Circuit 87 connector sleeve 20L
Z7/5z2 Circuit 87 connector sleeve 25L

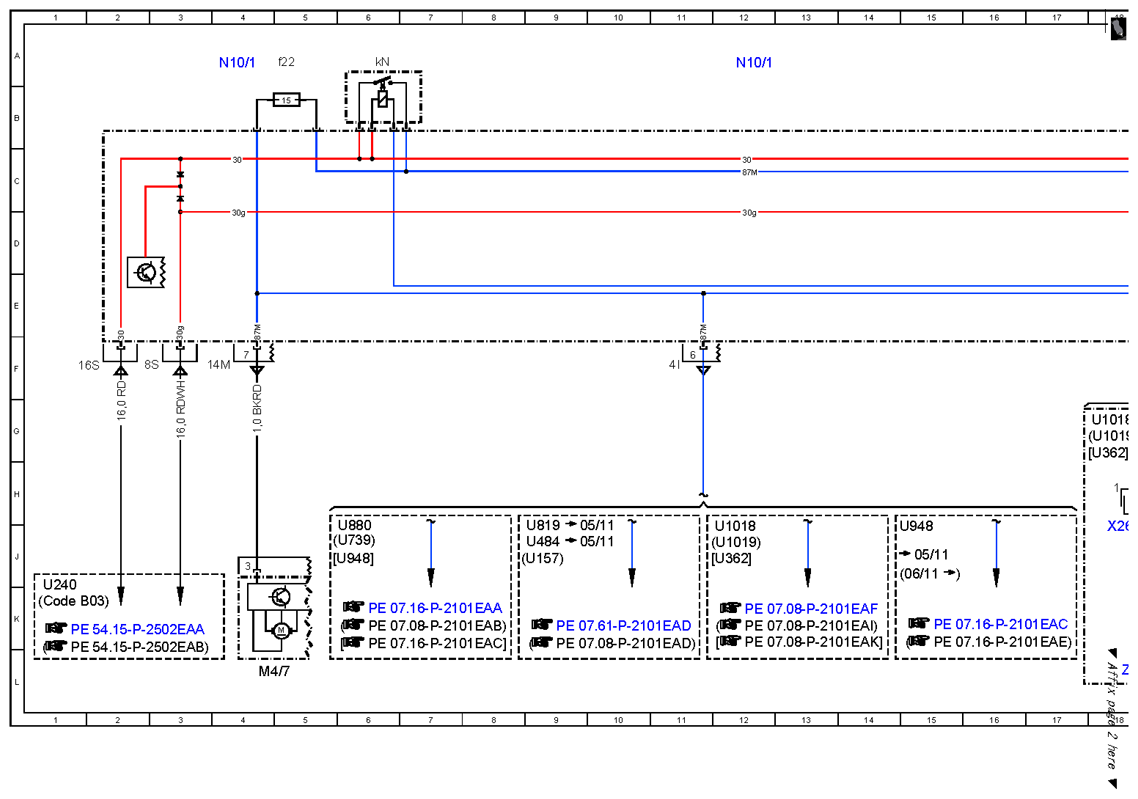

Fig 1: Front SAM Control Unit With Fuse And Relay Module (N10/1) Wiring Diagram (1 Of 6)
G10082455Courtesy of MERCEDES-BENZ USA
Fig 2: Front SAM Control Unit With Fuse And Relay Module (N10/1) Wiring Diagram (2 Of 6)
G10082456Courtesy of MERCEDES-BENZ USA

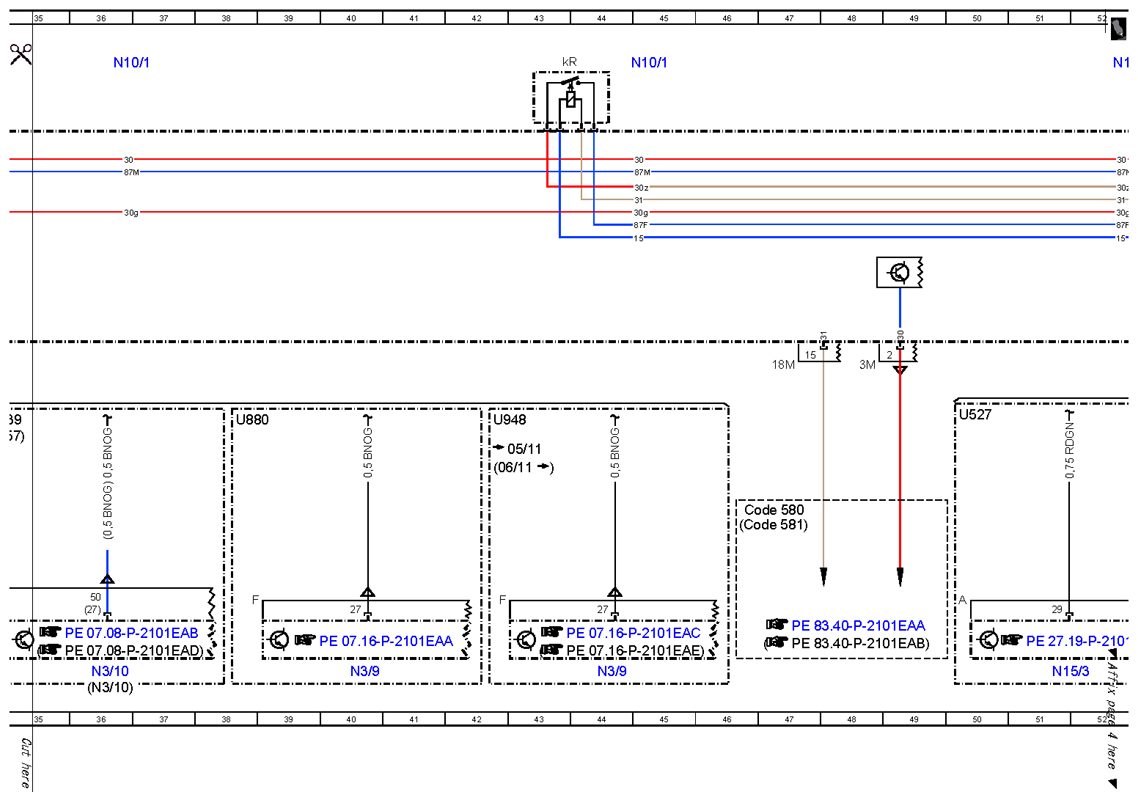

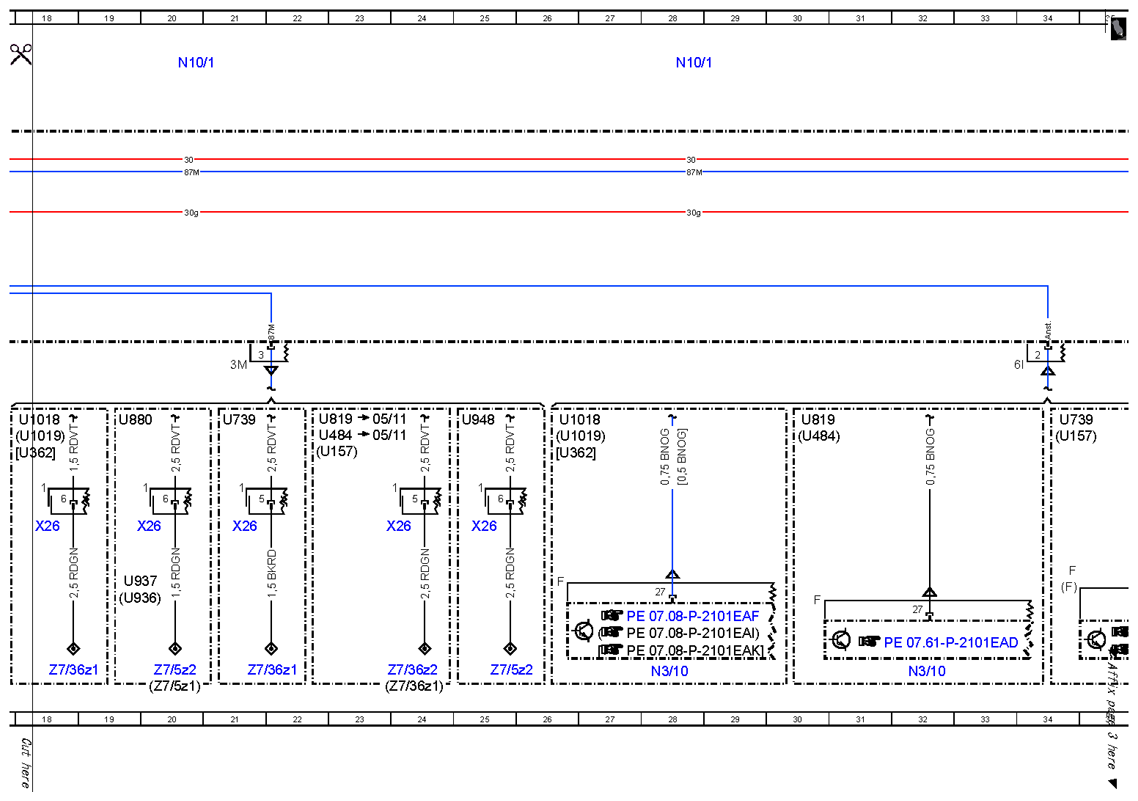

Fig 3: Front SAM Control Unit With Fuse And Relay Module (N10/1) Wiring Diagram (3 Of 6)
G10082457Courtesy of MERCEDES-BENZ USA

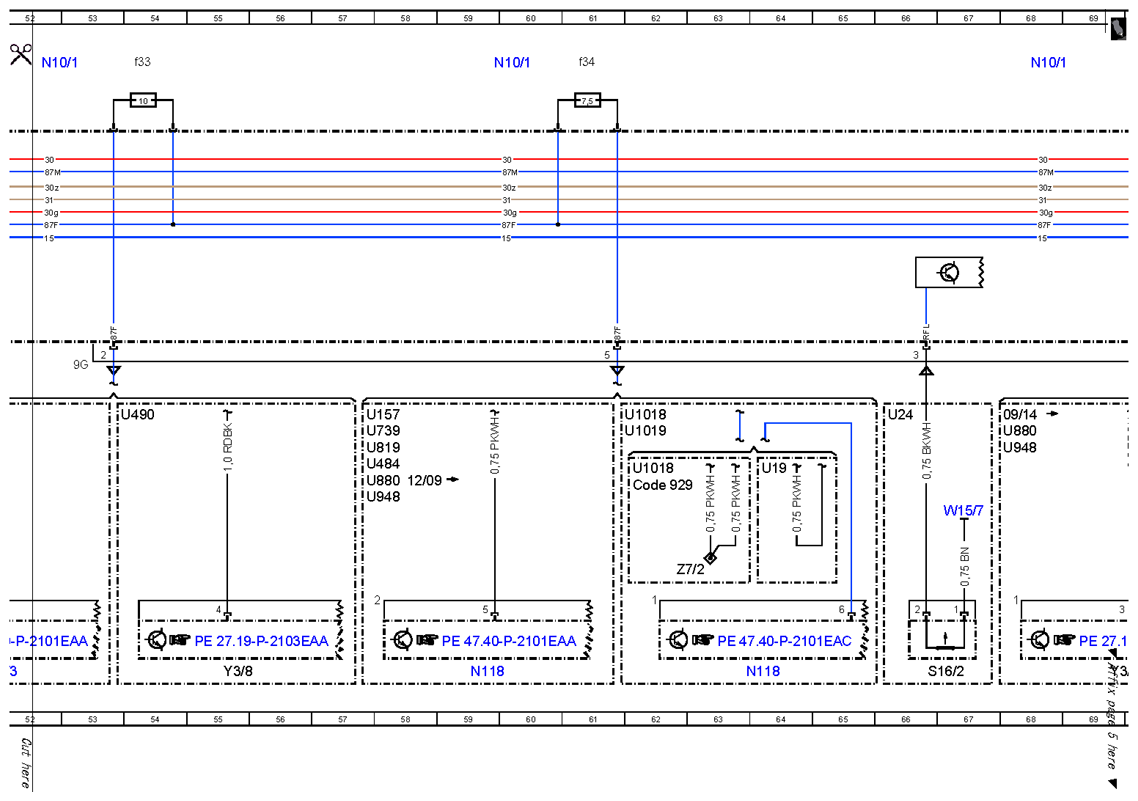

Fig 4: Front SAM Control Unit With Fuse And Relay Module (N10/1) Wiring Diagram (4 Of 6)
G10082458Courtesy of MERCEDES-BENZ USA

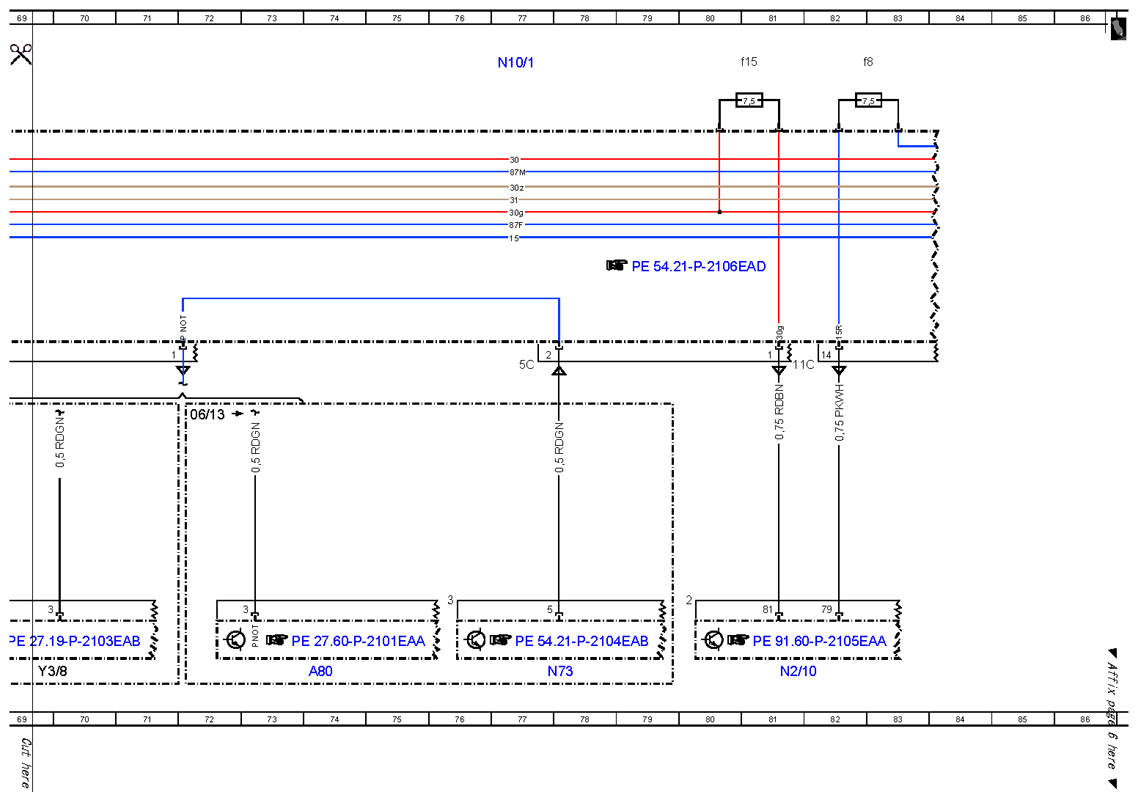

Fig 5: Front SAM Control Unit With Fuse And Relay Module (N10/1) Wiring Diagram (5 Of 6)
G10082459Courtesy of MERCEDES-BENZ USA

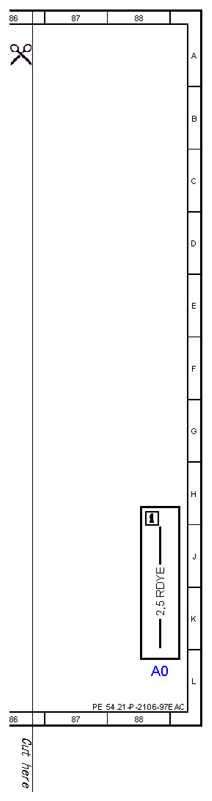

Fig 6: Front SAM Control Unit With Fuse And Relay Module (N10/1) Wiring Diagram (6 Of 6)
G10082460Courtesy of MERCEDES-BENZ USA
