Wiring diagram of front SAM control unit with fuse and relay module (N10/1) - PE54.21-P-2106-97EAA

Code: Designation: Position:
A0 Color code key 56L
CAN C Drive train CAN 7K
CAN C Drive train CAN 22K
CAN C Drive train CAN 19K
CAN C Drive train CAN 15K
CAN C Drive train CAN 11K
H2 Left fanfare horn 36L
H2/1 Right fanfare horn 37L
LIN 2 Wiper/inside rearview mirror LIN 30F
M5/1 Windshield washer system pump 38L
M5/2 Headlamp cleaning system pump 40L
M6/1 Wiper motor 29L
N10/1 Front SAM control unit with fuse and relay module 4A
N10/1 Front SAM control unit with fuse and relay module 12A
N10/1 Front SAM control unit with fuse and relay module 20A
N10/1 Front SAM control unit with fuse and relay module 28A
N10/1 Front SAM control unit with fuse and relay module 32A
N10/1 Front SAM control unit with fuse and relay module 37A
N10/1 Front SAM control unit with fuse and relay module 44A
N10/1f10 Fuse 10 29A
N10/1f27 Fuse 27 10A
N10/1f31A Fuse 31A 33A
N10/1f31B Fuse 31B 34A
N10/1kK Circuit 15R relay 27A
N10/1kL Wiper park position heater relay 31A
N10/1kO Fanfare horn relay 36A
N3/10 ME-SFI [ME] control unit 10L
N3/10 ME-SFI [ME] control unit 6L
N3/10 ME-SFI [ME] control unit 14L
N3/9 CDI control unit 15L
N3/9 CDI control unit 19L
N73 Electronic ignition switch control unit 26L
R2/1 Spray nozzle heater 48L
R2/1 Spray nozzle heater 49L
R2/1 Spray nozzle heater 50L
R2/10 Wiper park heater 31L
R2/11 Spray nozzle hose heater 51L
U1018 Valid for gasoline engine 276 5G
U1019 Valid for gasoline engine 278 5G
U12 Valid for left-hand drive vehicles 28G
U12 Valid for left-hand drive vehicles 32G
U12 Valid for left-hand drive vehicles 41G
U13 Valid for right-hand drive vehicles 28G
U13 Valid for right-hand drive vehicles 34G
U13 Valid for right-hand drive vehicles 43G
U157 Valid for combustion engine 272 DE 9H
U240 Valid for all except ECO start/stop function 1J
U252 Valid for ECO start/stop function 1J
U28 Valid for headlamp cleaning system 39G
U362 Valid for gasoline engine 274 5H
U484 Valid for gasoline engine 273 9G
U708 Valid for spray nozzle hose heater 50J
U709 Valid for wiper park position heater 30G
U739 Valid for gasoline engine 271 DE 12G
U74 Valid for diesel engines 32G
U74 Valid for diesel engines 34G
U74 Valid for diesel engines 41G
U74 Valid for diesel engines 43G
U75 Valid for gasoline engines 32H
U75 Valid for gasoline engines 34H
U75 Valid for gasoline engines 41H
U75 Valid for gasoline engines 43H
U819 Valid for gasoline engine 272 9G
U842 Valid for spray nozzle heater 47J
U880 Valid for diesel engine 642 13G
U948 Valid for diesel engine 651 17G
W16/3 Left major assembly compartment ground point 33L
W16/3 Left major assembly compartment ground point 42L
W16/3 Left major assembly compartment ground point 40H
W16/3 Left major assembly compartment ground point 38G
W16/3 Left major assembly compartment ground point 35G
W16/4 Right wheelhouse ground point 34L
W16/4 Right wheelhouse ground point 37G
W16/4 Right wheelhouse ground point 44L
W16/5 Left major assembly compartment electronics ground point 33L
W16/5 Left major assembly compartment electronics ground point 42L
W9 Left front ground point (at lamp unit) 31H
W9 Left front ground point (at lamp unit) 46L
X30/21 Drive train CAN voltage distributor electrical connector 22L
X88/11 Spray nozzle heater electrical connector 45H

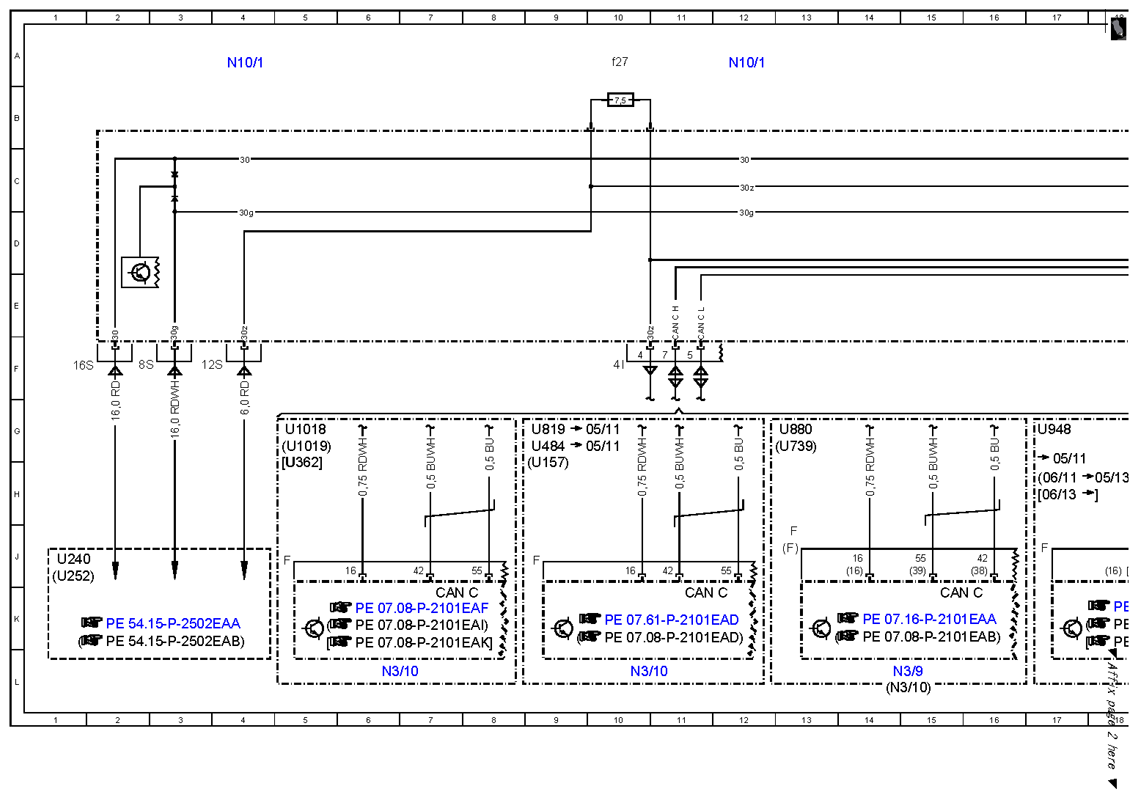

Fig 1: Front SAM Control Unit With Fuse And Relay Module (N10/1) Wiring Diagram (1 Of 4)
G10082445Courtesy of MERCEDES-BENZ USA

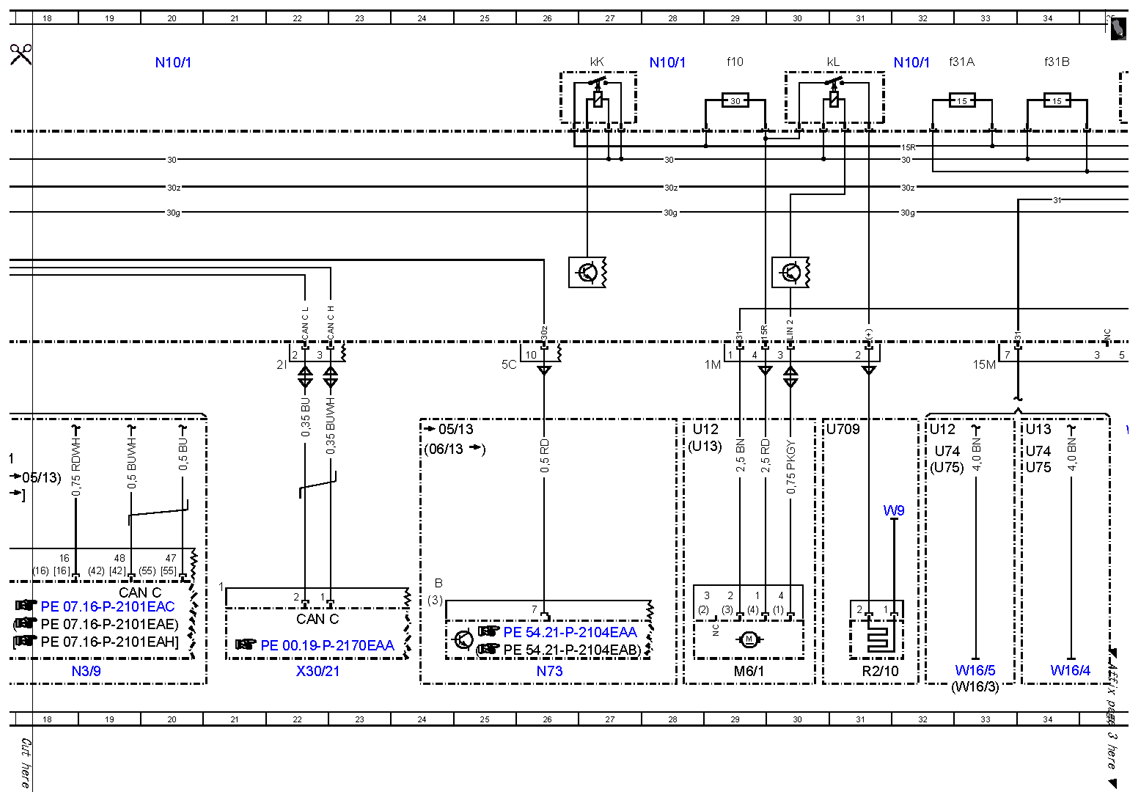

Fig 2: Front SAM Control Unit With Fuse And Relay Module (N10/1) Wiring Diagram (2 Of 4)
G10082446Courtesy of MERCEDES-BENZ USA

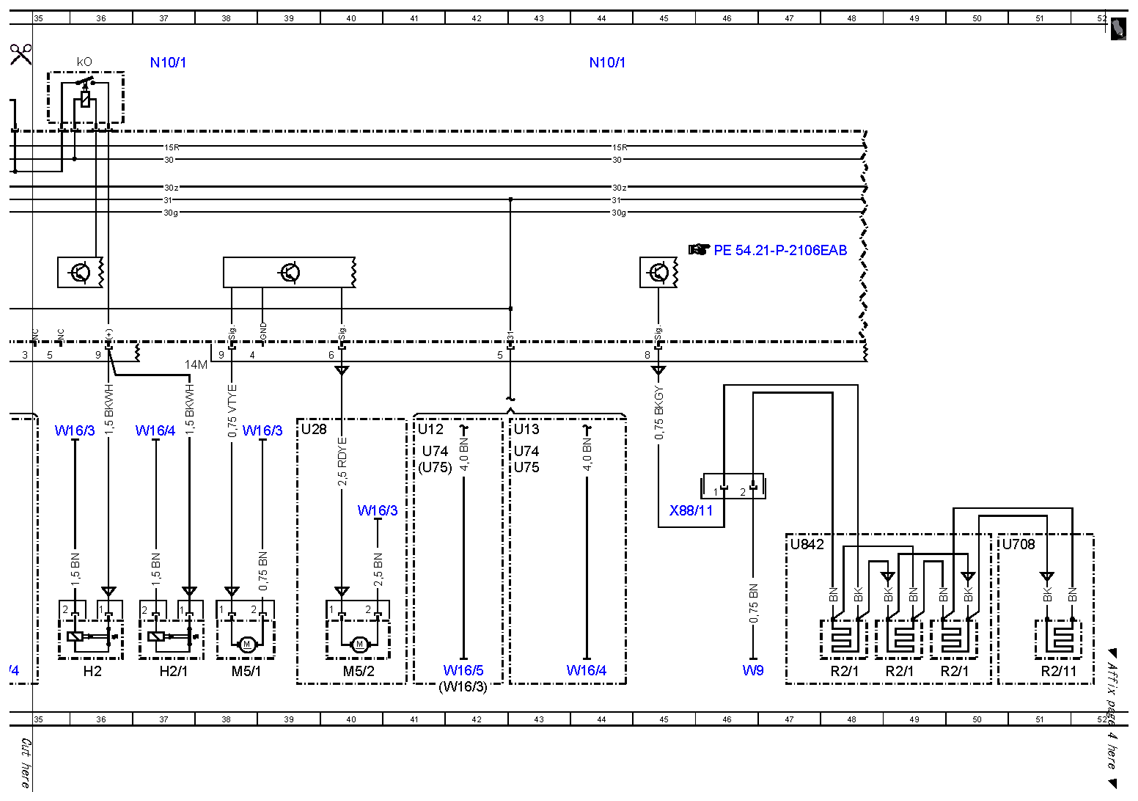

Fig 3: Front SAM Control Unit With Fuse And Relay Module (N10/1) Wiring Diagram (3 Of 4)
G10082447Courtesy of MERCEDES-BENZ USA

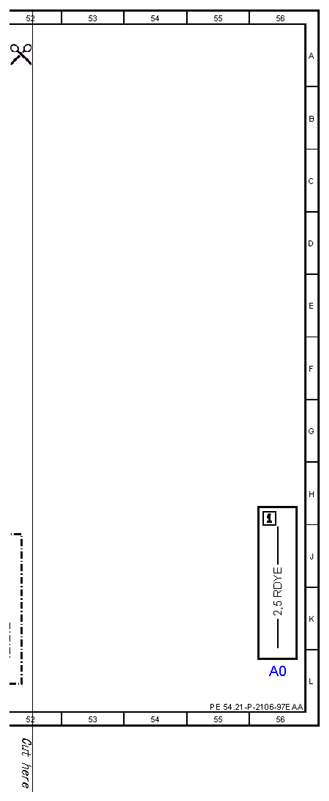

Fig 4: Front SAM Control Unit With Fuse And Relay Module (N10/1) Wiring Diagram (4 Of 4)
G10082448Courtesy of MERCEDES-BENZ USA
