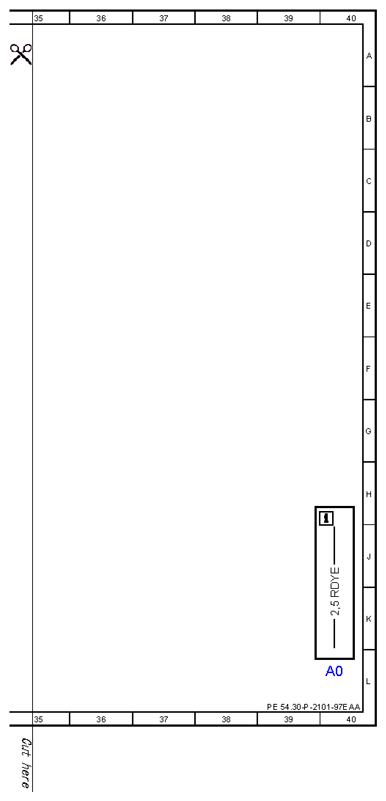

| A0 |
Color code key |
40L |

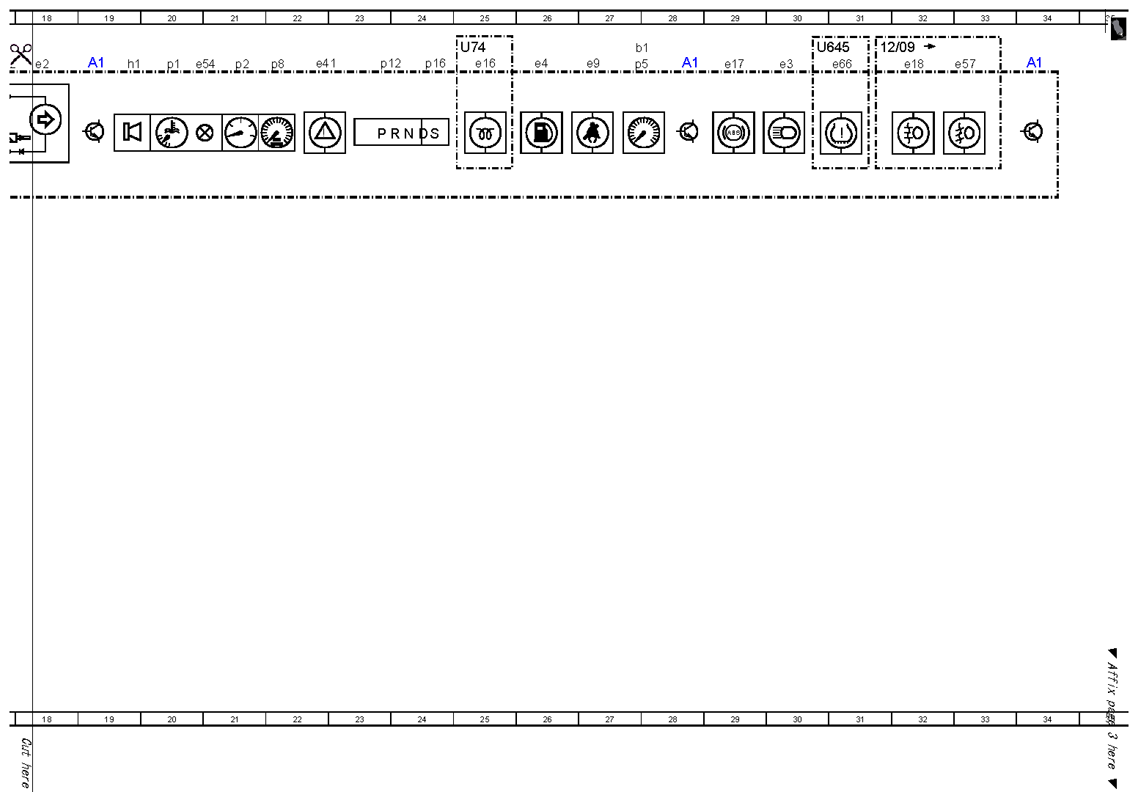

| A1 |
Instrument cluster |
4A |
| A1 |
Instrument cluster |
11A |
| A1 |
Instrument cluster |
19A |
| A1 |
Instrument cluster |
28A |
| A1 |
Instrument cluster |
34A |
| A1b1 |
Brightness sensor |
27A |
| A1e1 |
Left turn signal indicator light |
17A |
| A1e15 |
Supplemental restraint system indicator lamp |
15A |
| A1e16 |
Preglow indicator lamp |
25A |
| A1e17 |
Antilock brake system indicator lamp |
29A |
| A1e18 |
Rear fog lamp indicator lamp |
32A |
| A1e2 |
Right turn signal indicator light |
18A |
| A1e3 |
High beam indicator lamp |
30A |
| A1e4 |
Fuel reserve indicator lamp |
26A |
| A1e41 |
Electronic Stability Program warning lamp |
22A |
| A1e54 |
Coolant temperature warning lamp |
20A |
| A1e57 |
Front fog lamps indicator lamp |
33A |
| A1e58 |
Engine diagnosis indicator lamp |
16A |
| A1e64 |
Service brake indicator lamp |
3A |
| A1e66 |
Tire pressure monitor warning lamp |
31A |
| A1e7 |
Brake fluid and parking brake warning lamp |
12A |
| A1e8 |
Instrument illumination |
2A |
| A1e9 |
Seat belt warning lamp |
27A |
| A1h1 |
Warning buzzer |
19A |
| A1h2 |
Turn signal light function check, acoustic |
17A |
| A1p1 |
Coolant temperature gauge |
20A |
| A1p12 |
Gear indicator |
23A |
| A1p13 |
Multifunction display |
14A |
| A1p16 |
Transmission mode display |
24A |
| A1p2 |
Fuel level indicator |
21A |
| A1p5 |
Tachometer |
27A |
| A1p8 |
Speedometer |
22A |
| A1r1 |
Instrument illumination brightness control |
1A |

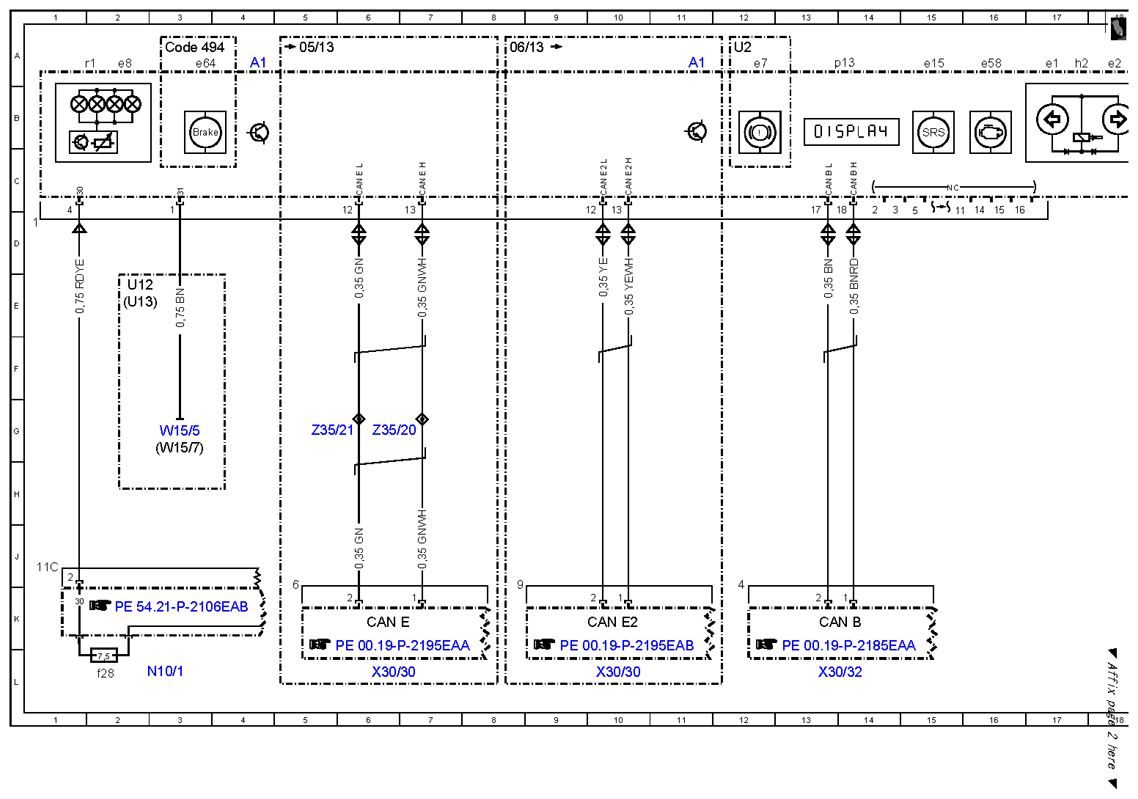

| CAN B |
Interior CAN |
13K |
| CAN E |
Chassis CAN |
6K |
| CAN E2 |
Chassis CAN 2 |
10K |
| Code 494 |
USA version |
3A |
| N10/1 |
Front SAM control unit with fuse and relay module |
3L |
| N10/1f28 |
Fuse 28 |
2L |
| U12 |
Valid for left-hand drive vehicles |
2E |
| U13 |
Valid for right-hand drive vehicles |
2E |
| U2 |
Valid for all except USA |
12A |
| U645 |
Valid for tire pressure monitor |
30A |
| U74 |
Valid for diesel engines |
25A |
| W15/5 |
Left front footwell ground point |
3G |
| W15/7 |
Right front footwell ground point |
3G |
| X30/30 |
Vehicle floor chassis CAN voltage distributor electrical connector |
6L |
| X30/30 |
Vehicle floor chassis CAN voltage distributor electrical connector |
10L |
| X30/32 |
Left vehicle floor interior CAN voltage distributor electrical connector |
13L |
| Z35/20 |
Cockpit chassis CAN (high) connector sleeve |
6G |
| Z35/21 |
Cockpit chassis CAN (low) connector sleeve |
5G |
