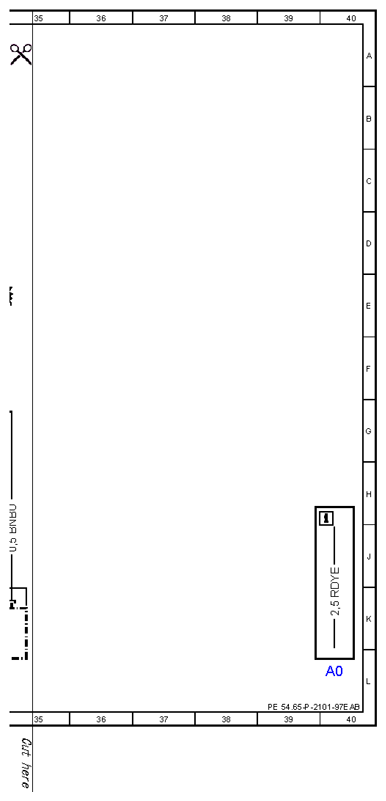

| A0 |
Color code key |
40L |
| A44/3 |
Rear parking system warning indicator |
10L |
| A44/4 |
Instrument panel parking system warning indicator |
24L |

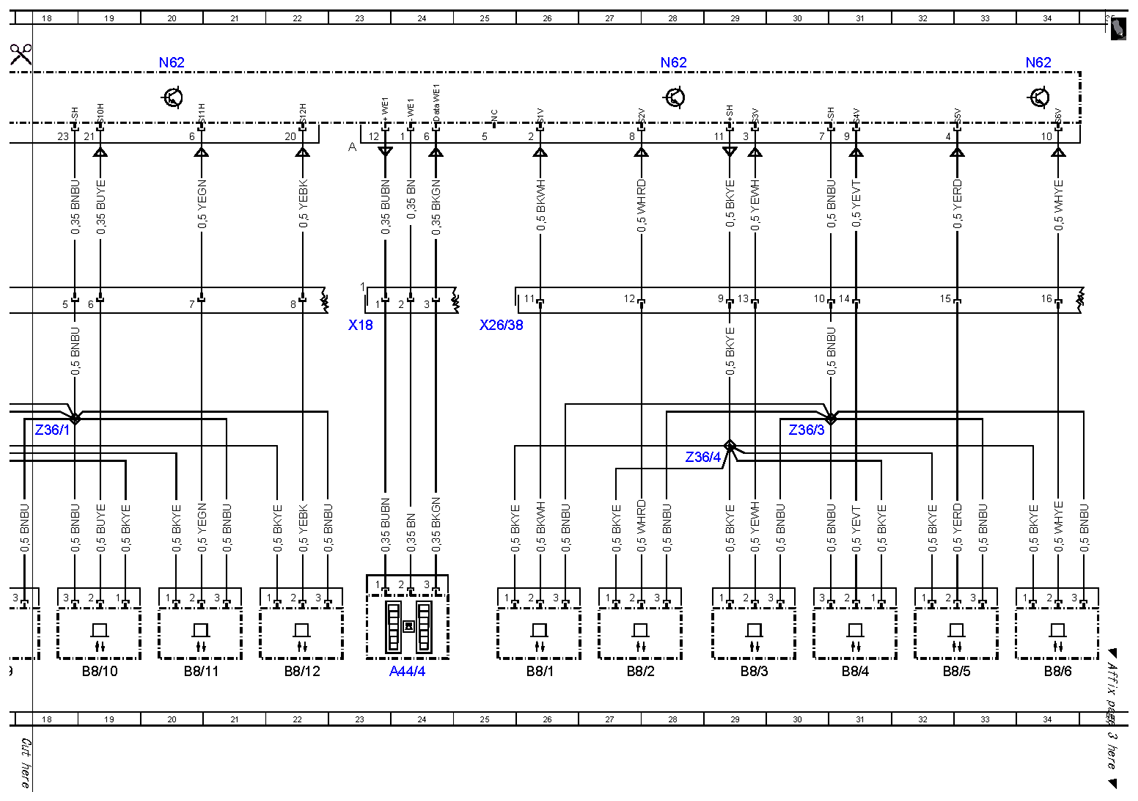

| B8/1 |
Outer left front parking system distance sensor |
26L |
| B8/10 |
Outer left rear parking system distance sensor |
19L |
| B8/11 |
Center left rear parking system distance sensor |
20L |
| B8/12 |
Center right rear parking system distance sensor |
22L |
| B8/2 |
Center left front parking system distance sensor |
27L |
| B8/3 |
Inner left front parking system distance sensor |
29L |
| B8/4 |
Inner right front parking system distance sensor |
31L |
| B8/5 |
Center right front parking system distance sensor |
32L |
| B8/6 |
Outer right front parking system distance sensor |
34L |
| B8/7 |
Outer right rear parking system distance sensor |
14L |
| B8/8 |
Inner right rear parking system distance sensor |
15L |
| B8/9 |
Inner left rear parking system distance sensor |
17L |
| CAN E2 |
Chassis CAN 2 |
7K |

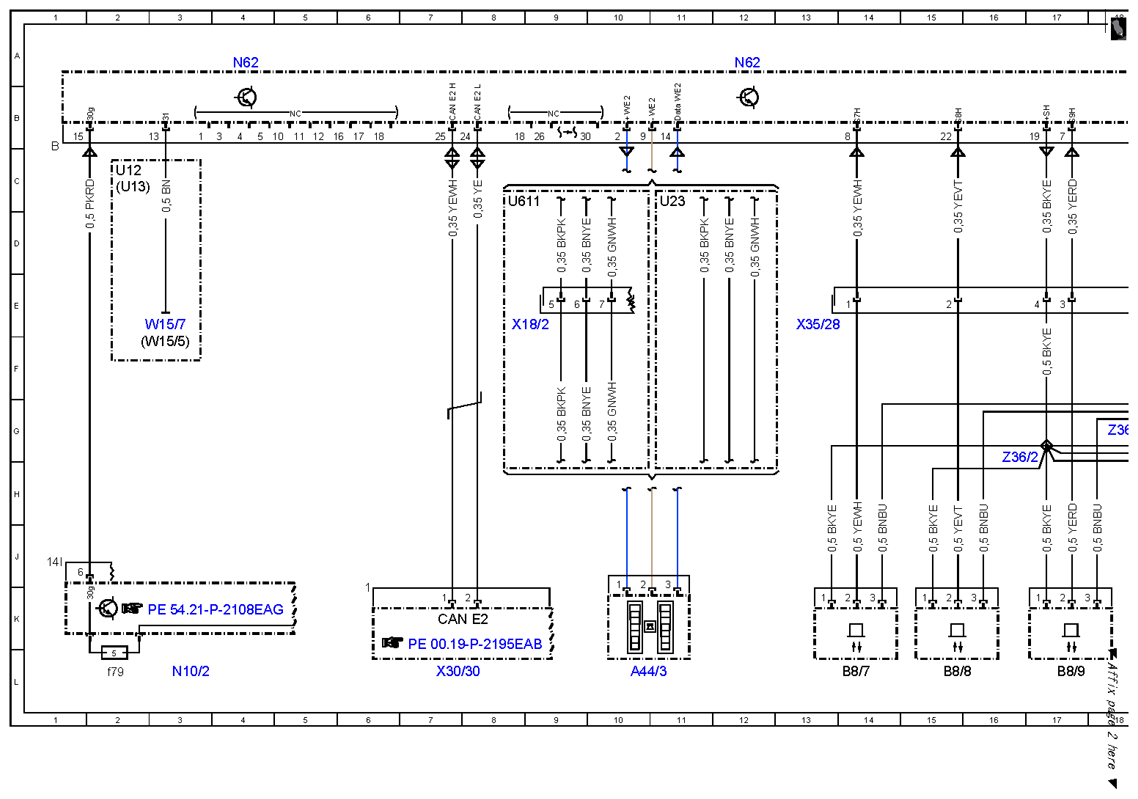

| N10/2 |
Rear SAM control unit with fuse and relay module |
3L |
| N10/2f79 |
Fuse 79 |
2L |
| N62 |
Parking system control unit |
4A |
| N62 |
Parking system control unit |
12A |
| N62 |
Parking system control unit |
20A |
| N62 |
Parking system control unit |
28A |
| N62 |
Parking system control unit |
34A |
| U12 |
Valid for left-hand drive vehicles |
2C |
| U13 |
Valid for right-hand drive vehicles |
2C |
| U23 |
Valid for convertibles |
11C |
| U611 |
Valid for Coupe |
8C |
| W15/5 |
Left front footwell ground point |
3F |
| W15/7 |
Right front footwell ground point |
3E |
| X18 |
Vehicle interior and harness for taillamp electrical connector |
23E |
| X18/2 |
Interior/roof electrical connector |
9E |
| X26/38 |
Front bumper and frame wiring harness electrical connector |
25E |
| X30/30 |
Vehicle floor chassis CAN voltage distributor electrical connector |
7L |
| X35/28 |
Rear bumper PARKTRONIC electrical connector |
13E |
| Z36/1 |
Rear PARKTRONIC sensors ground line connector sleeve |
18G |
| Z36/2 |
Rear PARKTRONIC sensors positive line connector sleeve |
16G |
| Z36/3 |
Front PARKTRONIC sensors ground line connector sleeve |
30G |
| Z36/4 |
Front PARKTRONIC sensors positive line connector sleeve |
28G |
