| A0 |
Color code key |
32L |
| A44/3 |
Rear parking system warning indicator |
6L |
| A44/4 |
Instrument panel parking system warning indicator |
28L |
| B8/1 |
Outer left front parking system distance sensor |
19L |
| B8/10 |
Outer left rear parking system distance sensor |
14L |
| B8/2 |
Center left front parking system distance sensor |
20L |
| B8/3 |
Inner left front parking system distance sensor |
21L |
| B8/4 |
Inner right front parking system distance sensor |
23L |
| B8/5 |
Center right front parking system distance sensor |
24L |
| B8/6 |
Outer right front parking system distance sensor |
26L |
| B8/7 |
Outer right rear parking system distance sensor |
9L |
| B8/8 |
Inner right rear parking system distance sensor |
11L |
| B8/9 |
Inner left rear parking system distance sensor |
12L |
| CAN E |
Chassis CAN |
16K |
| N10/2 |
Rear SAM control unit with fuse and relay module |
3L |
| N10/2f79 |
Fuse 79 |
2L |
| N62 |
Parking system control unit |
4A |
| N62 |
Parking system control unit |
13A |
| N62 |
Parking system control unit |
19A |
| N62 |
Parking system control unit |
27A |
| U12 |
Valid for left-hand drive vehicles |
2C |
| U13 |
Valid for right-hand drive vehicles |
2C |
| U23 |
Valid for convertibles |
6E |
| U611 |
Valid for Coupe |
4E |

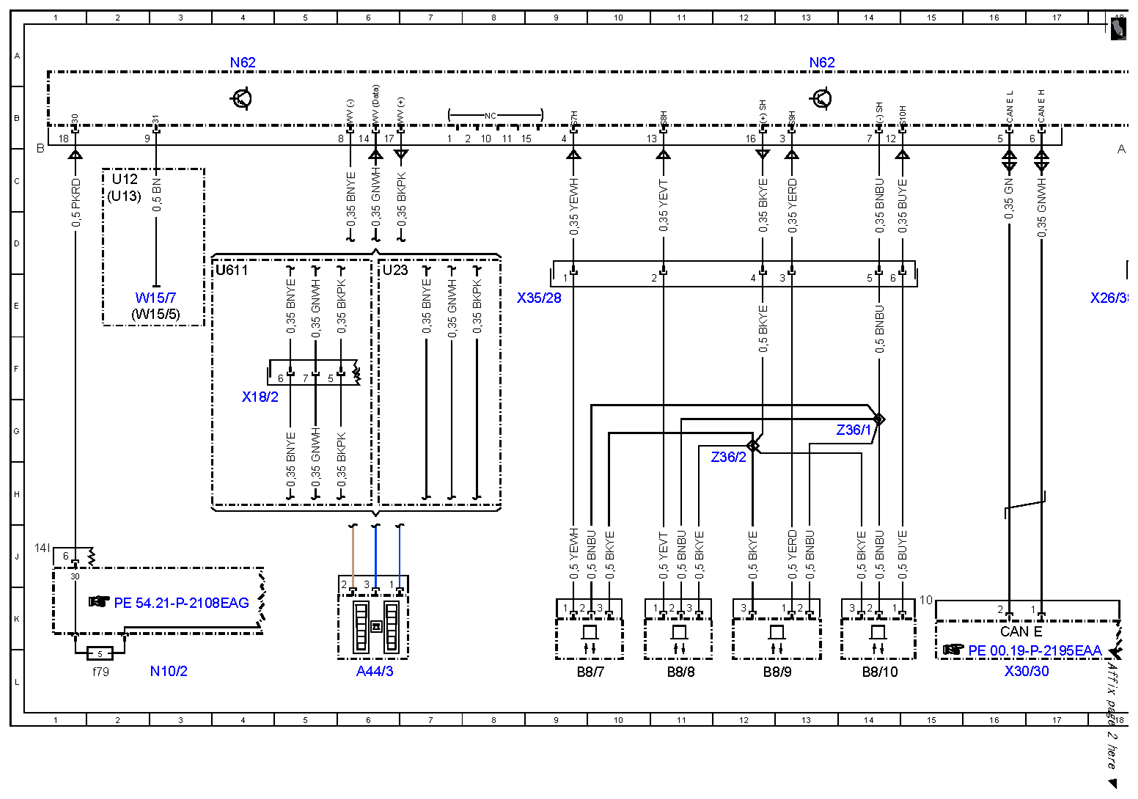

| W15/5 |
Left front footwell ground point |
2E |
| W15/7 |
Right front footwell ground point |
2E |

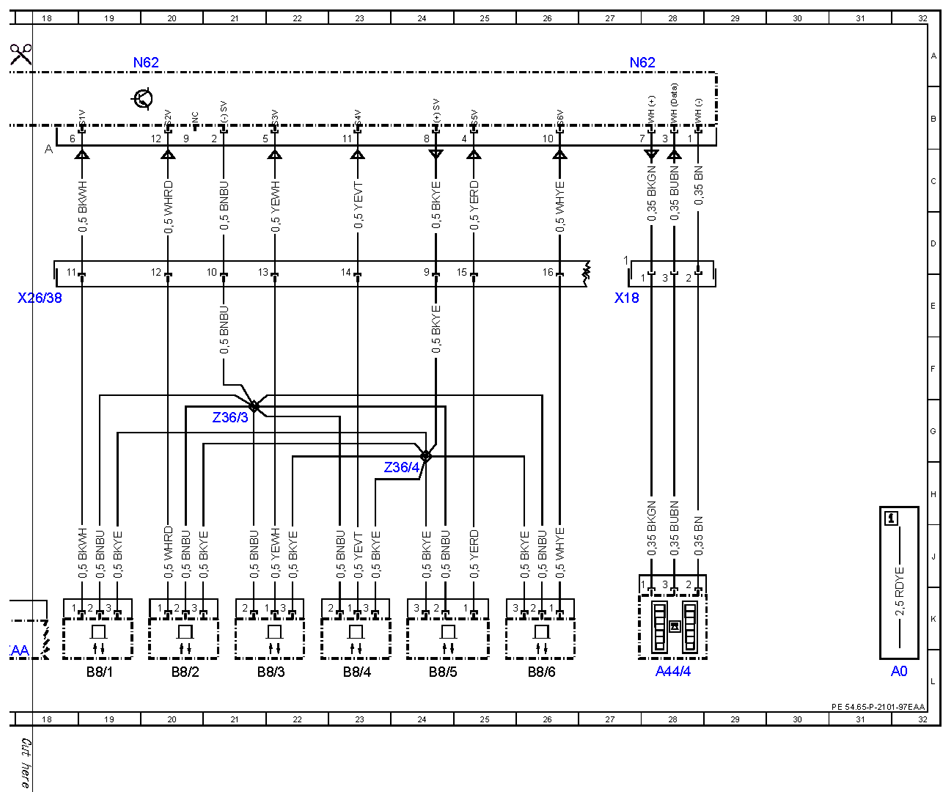

| X18 |
Vehicle interior and harness for taillamp electrical connector |
27E |
| X18/2 |
Interior/roof electrical connector |
4G |
| X26/38 |
Front bumper and frame wiring harness electrical connector |
18E |
| X30/30 |
Vehicle floor chassis CAN voltage distributor electrical connector |
16L |
| X35/28 |
Rear bumper PARKTRONIC electrical connector |
9E |
| Z36/1 |
Rear PARKTRONIC sensors ground line connector sleeve |
14G |
| Z36/2 |
Rear PARKTRONIC sensors positive line connector sleeve |
12G |
| Z36/3 |
Front PARKTRONIC sensors ground line connector sleeve |
21G |
| Z36/4 |
Front PARKTRONIC sensors positive line connector sleeve |
24H |
