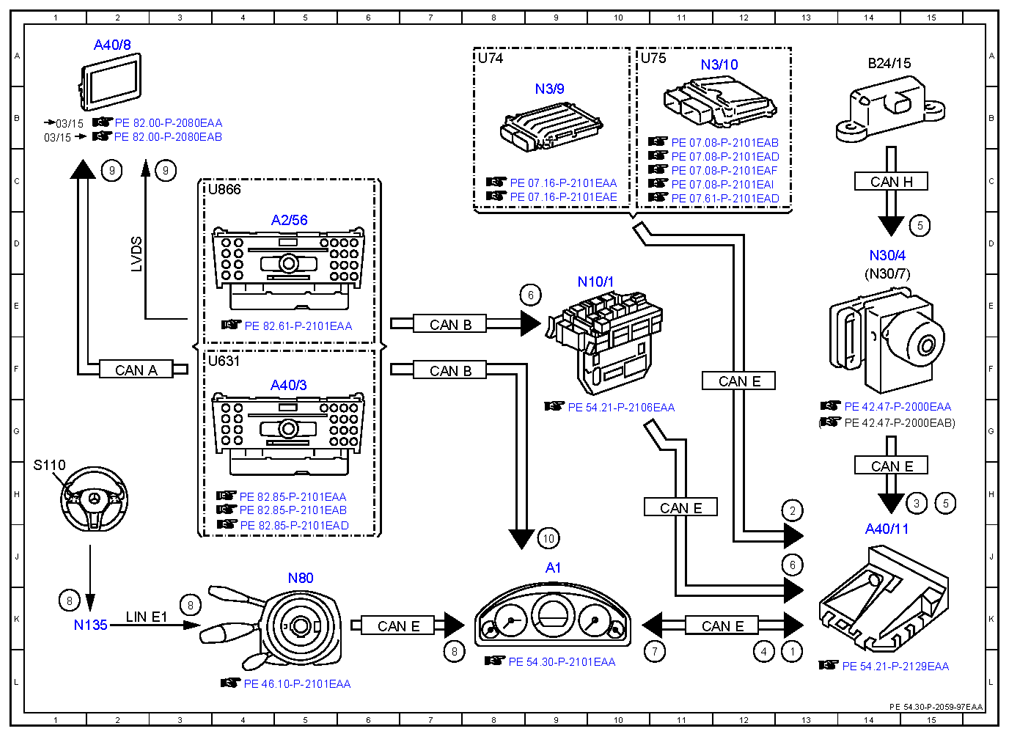

| 1 |
Speed Limit Assist status |
13L |
| 10 |
Multifunction display, actuation |
9J |
| 2 |
Circuit 61, status |
13H |
| 3 |
Wheel speed, signal |
15H |
| 4 |
Vehicle speed, signal |
12L |
| 5 |
Yaw rate, lateral and longitudinal acceleration sensor, signal |
15D |
| 5 |
Yaw rate, lateral and longitudinal acceleration sensor, signal |
15H |
| 6 |
Navigation data, signal |
9E |
| 6 |
Navigation data, signal |
13J |
| 7 |
Speed limit display request |
11L |
| 8 |
Multifunction steering wheel button group, signal |
7L |
| 8 |
Multifunction steering wheel button group, signal |
1K |
| 8 |
Multifunction steering wheel button group, signal |
3K |
| 9 |
Audio/COMAND display, signal |
2C |
| 9 |
Audio/COMAND display, signal |
3C |
| A1 |
Instrument cluster |
9J |
| A2/56 |
Radio with auto pilot system |
5D |
| A40/11 |
Multifunction camera |
14J |
| A40/3 |
COMAND control unit |
5F |
| A40/8 |
Audio/COMAND display |
2A |
| B24/15 |
Yaw rate, lateral and longitudinal acceleration sensor |
14A |
| CAN A |
Telematics CAN |
2F |
| CAN B |
Interior CAN |
7E |
| CAN B |
Interior CAN |
7F |
| CAN E |
Chassis CAN |
12K |
| CAN E |
Chassis CAN |
11H |
| CAN E |
Chassis CAN |
14H |
| CAN E |
Chassis CAN |
12F |
| CAN E |
Chassis CAN |
6K |
| CAN H |
Vehicle dynamics CAN |
14C |
| LIN E1 |
Steering LIN |
2K |
| LVDS |
Low voltage differential signal |
2D |
| N10/1 |
Front SAM control unit with fuse and relay module |
9E |
| N135 |
Steering wheel electronics |
1K |
| N3/10 |
ME-SFI [ME] control unit |
11A |
| N3/9 |
CDI control unit |
9B |
| N30/4 |
Electronic Stability Program control unit |
14D |
| N30/7 |
Premium Electronic Stability Program control unit |
14E |
| N80 |
Steering column module control unit |
5J |
| S110 |
Left multifunction steering wheel button group |
1H |
| U631 |
Valid for COMAND |
3F |
| U74 |
Valid for diesel engines |
8A |
| U75 |
Valid for gasoline engines |
10A |
| U866 |
Valid for Audio 50 |
3C |
