| 1 |
Circuit 15, status |
18J |
| 1 |
Circuit 15, status |
16F |
| 10 |
Parking system warning indicator, actuation |
19K |
| 10 |
Parking system warning indicator, actuation |
16J |
| 11 |
Parking system status indication, request |
14E |
| 11 |
Parking system status indication, request |
18G |
| 12 |
Warning tone, request |
5K |
| 13 |
Parking system button, status |
18J |
| 13 |
Parking system button, status |
16E |
| 14 |
Rain/light sensor, status |
18J |
| 14 |
Rain/light sensor, status |
19F |
| 15 |
Trailer recognition, status |
18D |
| 15 |
Trailer recognition, status |
18J |
| 16 |
ESP®, status |
18H |
| 16 |
ESP®, status |
16H |
| 17 |
Parking space detection, signal |
5K |
| 18 |
Multifunction steering wheel button group, signal |
19E |
| 18 |
Multifunction steering wheel button group, signal |
29C |
| 18 |
Multifunction steering wheel button group, signal |
29E |
| 18 |
Multifunction steering wheel button group, signal |
1K |
| 19 |
Parking system, status |
15K |
| 2 |
Wheel speed, signal |
2K |
| 2 |
Wheel speed, signal |
17G |
| 2 |
Wheel speed, signal |
18J |
| 20 |
Instrument cluster message, request |
6K |
| 21 |
Combination switch, status |
20E |
| 21 |
Combination switch, status |
27F |
| 21 |
Combination switch, status |
19J |
| 22 |
Steering angle sensor, signal |
29E |
| 23 |
Steering angle, signal |
20E |
| 23 |
Steering angle, signal |
19J |
| 24 |
Display of steering information, request |
6K |
| 25 |
Electric power steering, request |
12K |
| 26 |
Electric power steering actuator motor, actuation |
8K |
| 27 |
Electric power steering torque sensor, signal |
16K |
| 27 |
Electric power steering torque sensor, signal |
9J |
| 28 |
Travel distance, signal |
4H |
| 28 |
Travel distance, signal |
18G |
| 29 |
Traction system hydraulic unit, actuation |
7D |
| 3 |
Wheel rotation direction, signal |
1K |
| 3 |
Wheel rotation direction, signal |
17G |
| 3 |
Wheel rotation direction, signal |
18J |
| 4 |
Vehicle speed, signal |
16K |
| 5 |
Gear range, status |
23E |
| 5 |
Gear range, status |
18D |
| 6 |
Backup lamp switch, status |
16F |
| 7 |
Reverse gear, status |
18H |
| 8 |
Parking system distance sensors, actuation |
25K |
| 8 |
Parking system distance sensors, actuation |
30L |
| 9 |
Parking system distance sensors, signal |
19K |
| 9 |
Parking system distance sensors, signal |
19L |

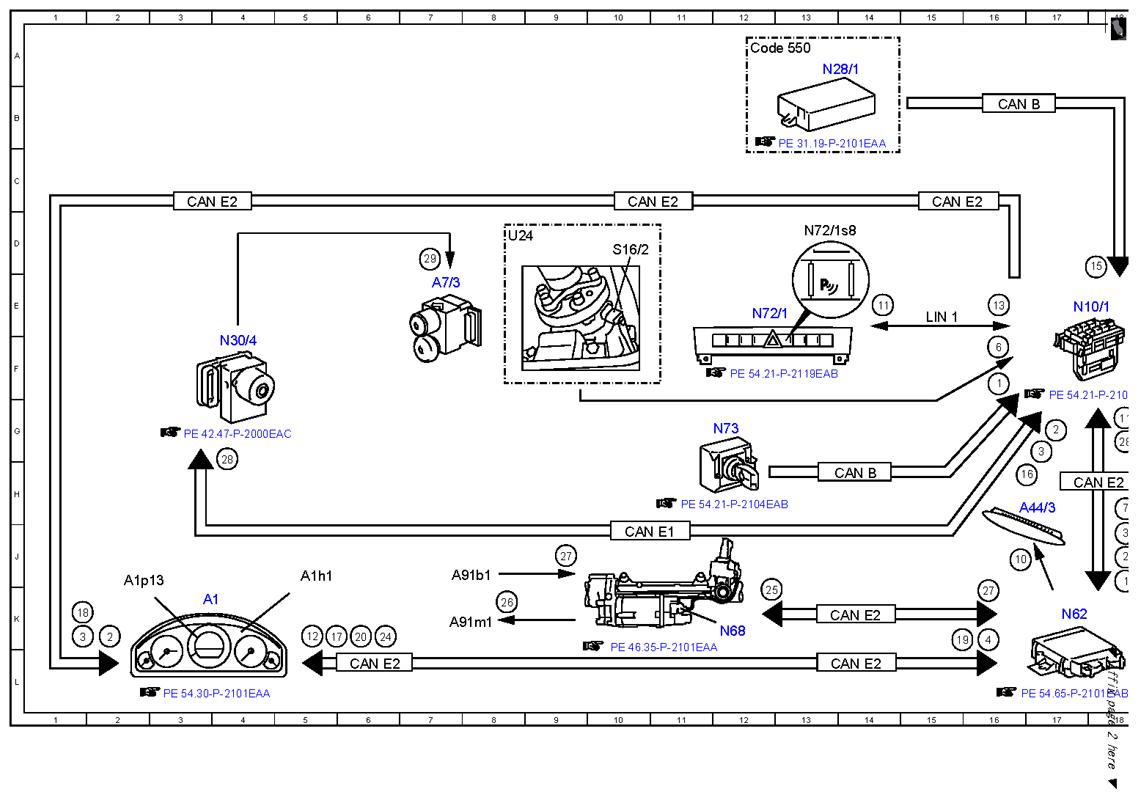

| A1 |
Instrument cluster |
3K |
| A1h1 |
Warning buzzer |
5J |
| A1p13 |
Multifunction display |
2J |

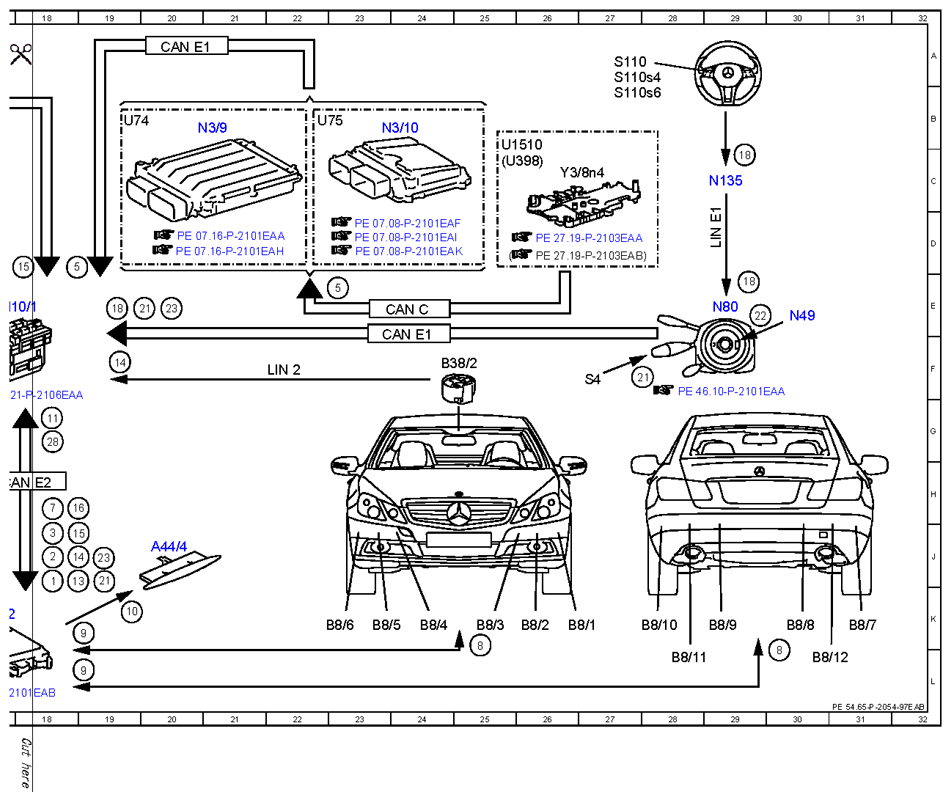

| A44/3 |
Rear parking system warning indicator |
17H |
| A44/4 |
Instrument panel parking system warning indicator |
20J |
| A7/3 |
Traction system hydraulic unit |
7E |
| A91b1 |
Electric power steering torque sensor |
7J |
| A91m1 |
Electric power steering actuator motor |
7K |
| B38/2 |
Rain/light sensor |
24F |
| B8/1 |
Outer left front parking system distance sensor |
26K |
| B8/10 |
Outer left rear parking system distance sensor |
27K |
| B8/11 |
Center left rear parking system distance sensor |
28L |
| B8/12 |
Center right rear parking system distance sensor |
30L |
| B8/2 |
Center left front parking system distance sensor |
26K |
| B8/3 |
Inner left front parking system distance sensor |
25K |
| B8/4 |
Inner right front parking system distance sensor |
24K |
| B8/5 |
Center right front parking system distance sensor |
23K |
| B8/6 |
Outer right front parking system distance sensor |
22K |
| B8/7 |
Outer right rear parking system distance sensor |
31K |
| B8/8 |
Inner right rear parking system distance sensor |
30K |
| B8/9 |
Inner left rear parking system distance sensor |
29K |
| CAN B |
Interior CAN |
14H |
| CAN B |
Interior CAN |
16B |
| CAN C |
Drive train CAN |
24E |
| CAN E1 |
Chassis CAN 1 |
10J |
| CAN E1 |
Chassis CAN 1 |
24F |
| CAN E1 |
Chassis CAN 1 |
20A |
| CAN E2 |
Chassis CAN 2 |
6L |
| CAN E2 |
Chassis CAN 2 |
15C |
| CAN E2 |
Chassis CAN 2 |
10C |
| CAN E2 |
Chassis CAN 2 |
3C |
| CAN E2 |
Chassis CAN 2 |
18H |
| CAN E2 |
Chassis CAN 2 |
14L |
| CAN E2 |
Chassis CAN 2 |
14K |
| Code 550 |
Trailer hitch |
12A |
| LIN 1 |
Instrument panel LIN |
15E |
| LIN 2 |
Wiper/inside rearview mirror LIN |
22F |
| LIN E1 |
Steering LIN |
29D |
| N10/1 |
Front SAM control unit with fuse and relay module |
17E |
| N135 |
Steering wheel electronics |
29C |
| N28/1 |
Trailer recognition control unit |
13A |
| N3/10 |
ME-SFI [ME] control unit |
23B |
| N3/9 |
CDI control unit |
20B |
| N30/4 |
Electronic Stability Program control unit |
4F |
| N49 |
Steering angle sensor |
30E |
| N62 |
Parking system control unit |
17K |
| N68 |
Electrical power steering control unit |
12K |
| N72/1 |
Upper control panel control unit |
12E |
| N72/1s8 |
Parking system button |
13D |
| N73 |
Electronic ignition switch control unit |
12G |
| N80 |
Steering column module control unit |
29E |
| S110 |
Left multifunction steering wheel button group |
27A |
| S110s4 |
"Back" and voice control system OFF button |
27A |
| S110s6 |
OK button |
27B |
| S16/2 |
Backup lamp switch |
10D |
| S4 |
Combination switch |
27F |
| U1510 |
Valid for transmission 722.9 |
25C |
| U24 |
Valid for manual transmission |
8D |
| U398 |
Valid for transmission 725 (NAG3) |
25C |
| U74 |
Valid for diesel engines |
19B |
| U75 |
Valid for gasoline engines |
22B |
| Y3/8n4 |
Fully integrated transmission control control unit |
26C |
