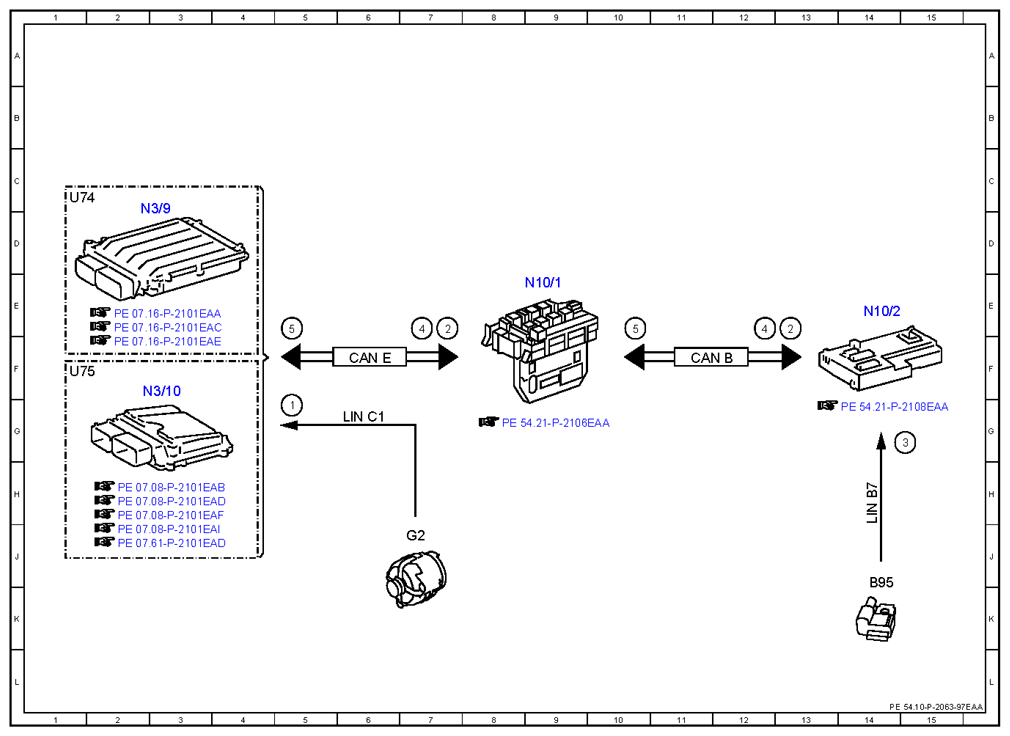

| 1 |
Alternator, signal |
5G |
| 2 |
Engine running, signal |
7E |
| 2 |
Engine running, signal |
13E |
| 3 |
Battery sensor, signal |
15G |
| 4 |
Alternator operating rate, signal |
7E |
| 4 |
Alternator operating rate, signal |
12E |
| 5 |
Idle speed increase, request |
5E |
| 5 |
Idle speed increase, request |
10E |
| B95 |
Battery sensor |
14K |
| CAN B |
Interior CAN |
11F |
| CAN E |
Chassis CAN |
6F |
| G2 |
Alternator |
7J |
| LIN B7 |
On-board electrical system LIN |
14H |
| LIN C1 |
Drive train LIN |
6G |
| N10/1 |
Front SAM control unit with fuse and relay module |
9E |
| N10/2 |
Rear SAM control unit with fuse and relay module |
14E |
| N3/10 |
ME-SFI [ME] control unit |
2F |
| N3/9 |
CDI control unit |
2D |
| U74 |
Valid for diesel engines |
1C |
| U75 |
Valid for gasoline engines |
1F |
