Connector separation point wiring diagram - PE54.18-P-2300-97EAG

Code: Designation: Position:
A0 Color code key 56L
A9 Refrigerant compressor 7A
A9 Refrigerant compressor 47A
A9/7 Refrigerant compressor with magnetic clutch 49A
B19/9 Temperature sensor upstream of diesel particulate filter 52A
B4/7 Fuel pressure sensor 9A
B4/7 Fuel pressure sensor 37A
B76/1 Condensation sensor for fuel filter with heating element 8A
B79/2 Transmission neutral position position sensor 28L
Code 427 7-speed automatic transmission 21D
Code 427 7-speed automatic transmission 40H
Code B03 ECO start/stop function 21D
Code B03 ECO start/stop function 26C
Code B03 ECO start/stop function 40H
K60/1 Transmission oil circulation pump relay 41L
M1 Starter 5A
M1 Starter 45A
N10/1 Front SAM control unit with fuse and relay module 4L
N10/1 Front SAM control unit with fuse and relay module 13L
N10/1 Front SAM control unit with fuse and relay module 45L
N10/2 Rear SAM control unit with fuse and relay module 25L
N10/2f66 Fuse 66 23L
N118 Fuel pump control unit 15L
N118 Fuel pump control unit 33L
N3/9 CDI control unit 53L
N3/9 CDI control unit 29A
N3/9 CDI control unit 42A
N30/4 Electronic Stability Program control unit 19L
N30/4 Electronic Stability Program control unit 30L
N30/7 Premium Electronic Stability Program control unit 19L
N30/7 Premium Electronic Stability Program control unit 30L
U12 Valid for left-hand drive vehicles 1H
U12 Valid for left-hand drive vehicles 38H
U13 Valid for right-hand drive vehicles 1H
U13 Valid for right-hand drive vehicles 38H
U24 Valid for manual transmission 26D
U486 Valid for refrigerant compressor 46A
U487 Valid for refrigerant compressor with magnetic clutch 49F
U487 Valid for refrigerant compressor with magnetic clutch 48A
U600 Valid for power steering pump 10A
U600 Valid for power steering pump 35A
U938 Valid for ESP Basic 17H
U938 Valid for ESP Basic 29H
U939 Valid for ESP Premium 17H
U939 Valid for ESP Premium 29H
U948 Valid for diesel engine 651 1A
U948 Valid for diesel engine 651 21A
U963 Valid for piezo fuel injector 38A
U964 Valid for all except piezo fuel injector 40F
W16/3 Left major assembly compartment ground point 50L
W16/5 Left major assembly compartment electronics ground point 2L
W16/5 Left major assembly compartment electronics ground point 39L
W16/6 Right major assembly compartment ground point 2L
W16/6 Right major assembly compartment ground point 39L
X220 Manual transmission neutral position sensor electrical connector 27H
X26 Interior and engine wiring harness electrical connector 2H
X26 Interior and engine wiring harness electrical connector 35H
X26/7 Rear engine compartment electrical connector 49H
X35/6 Instrument panel and module box electrical connector 13H
X35/6 Instrument panel and module box electrical connector 15H
X35/6 Instrument panel and module box electrical connector 23E
Y10/1 Power steering pump quantity control valve 11A
Y10/1 Power steering pump quantity control valve 36A
Y74 Pressure regulator valve 2A
Y74 Pressure regulator valve 39A
Y94 Quantity control valve 4A
Z111 Air conditioning 12 Volt connector sleeve (1) 50L
Z210/1 Transmission fluid circulation pump circuit 87 relay connector sleeve 22G
Z6 Circuit 31 connector sleeve 39E
Z6/8 Sensor ground connector sleeve 53G
Z7/43 Sensor ground connector sleeve 26A
Z7/55 Connector sleeve 2, sensor voltage 32A
Z7/5z1 Circuit 87 connector sleeve 44E
Z7/5z2 Circuit 87 connector sleeve 4E
Z7/5z2 Circuit 87 connector sleeve 42E
Z7/5z3 Circuit 87 connector sleeve 3E
Z7/5z3 Circuit 87 connector sleeve 43E

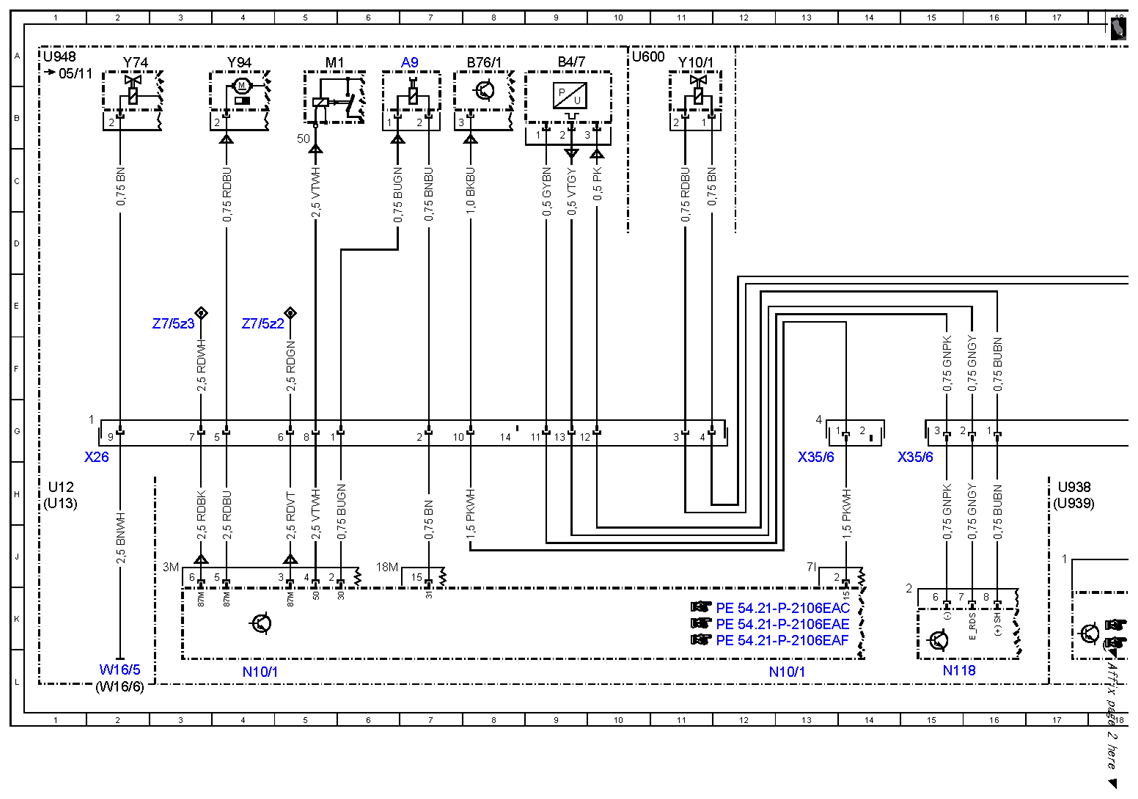

Fig 1: Connector Separation Point Wiring Diagram (1 Of 4)
G10082437Courtesy of MERCEDES-BENZ USA

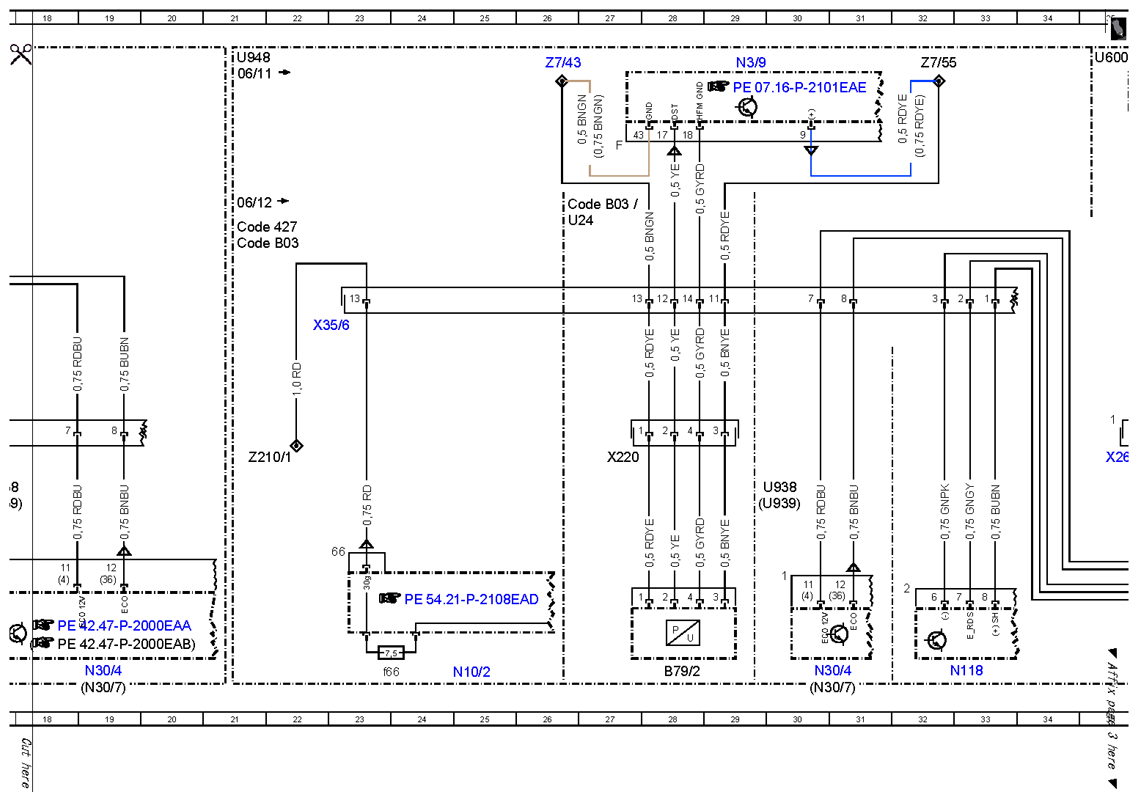

Fig 2: Connector Separation Point Wiring Diagram (2 Of 4)
G10082438Courtesy of MERCEDES-BENZ USA

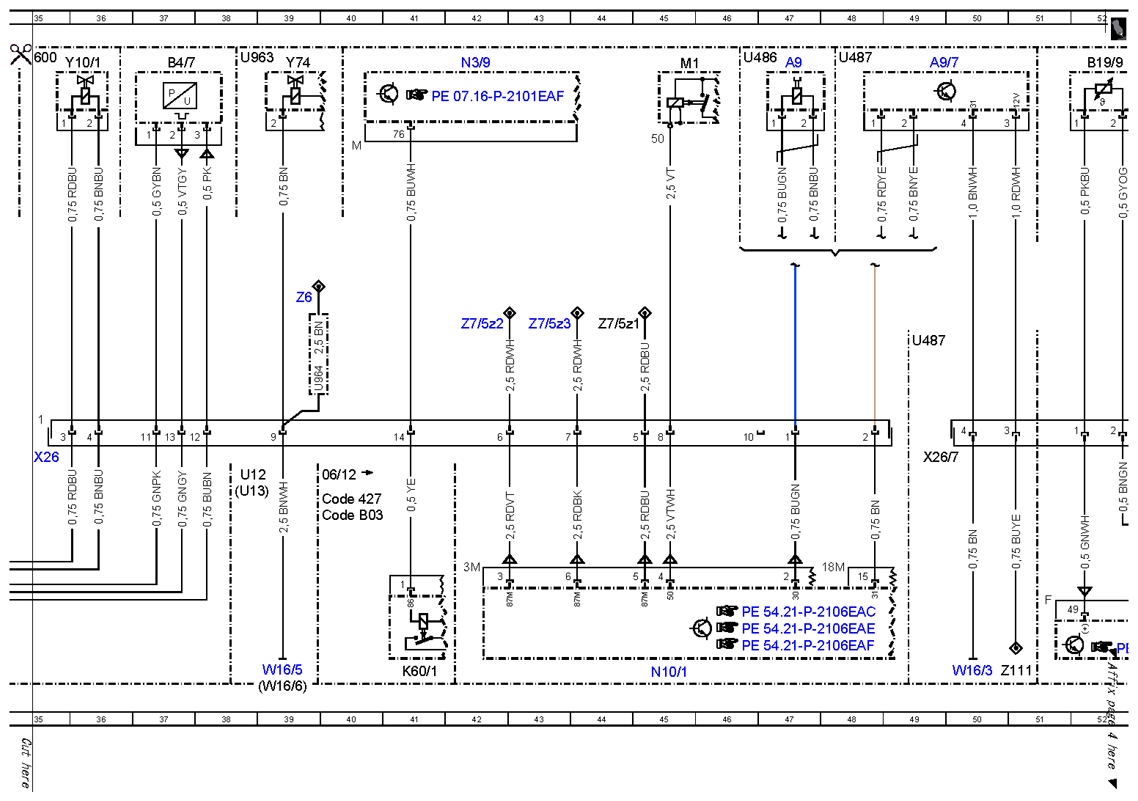

Fig 3: Connector Separation Point Wiring Diagram (3 Of 4)
G10082439Courtesy of MERCEDES-BENZ USA

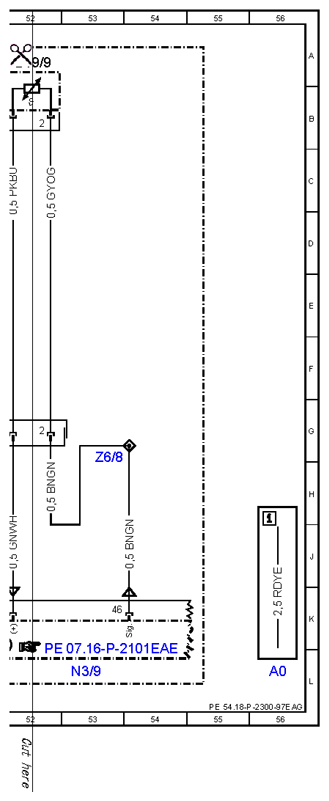

Fig 4: Connector Separation Point Wiring Diagram (4 Of 4)
G10082440Courtesy of MERCEDES-BENZ USA
