| A0 |
Color code key |
64L |

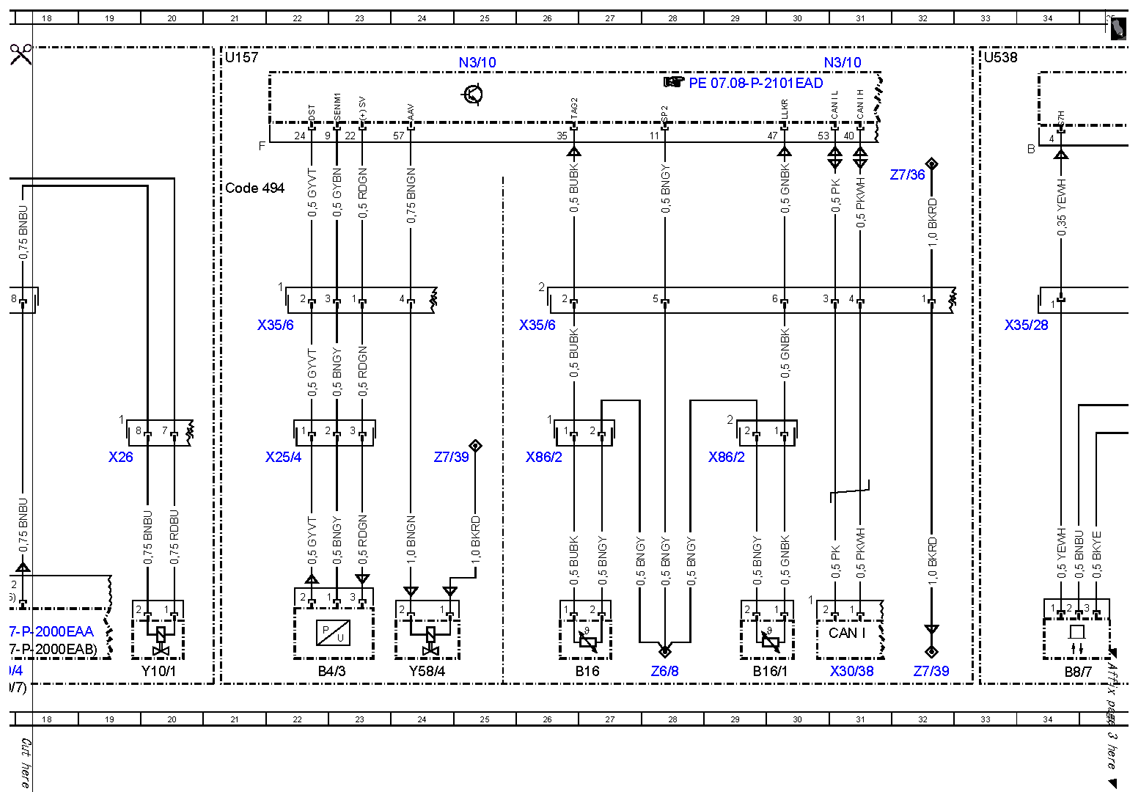

| B16 |
Temperature sensor upstream of NOx storage catalytic converter, right |
27L |
| B16/1 |
Temperature sensor upstream of NOx storage catalytic converter, left |
29L |

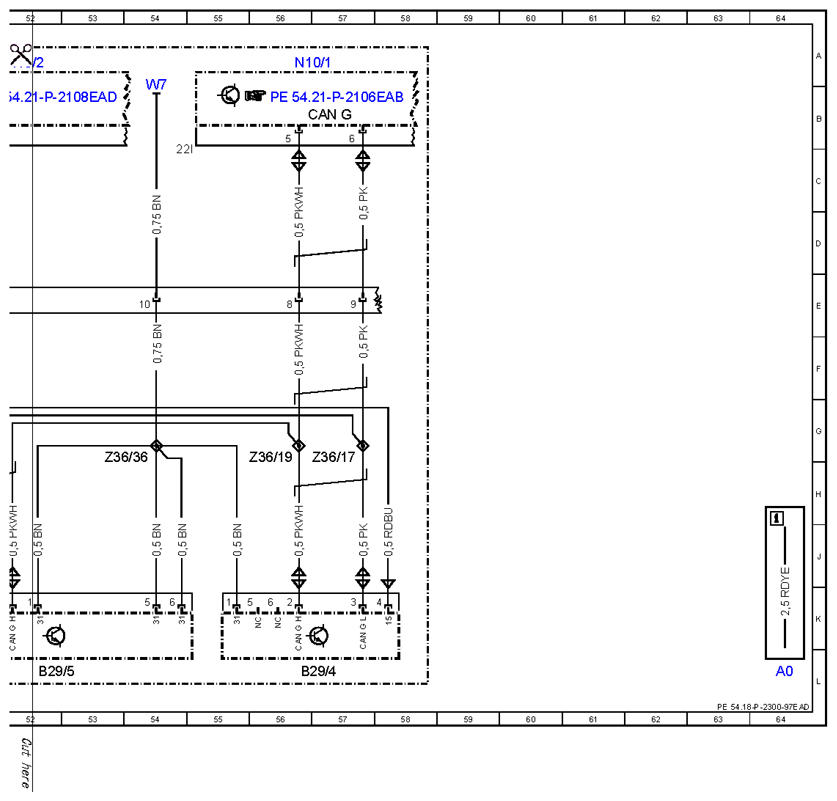

| B29/4 |
Left rear bumper intelligent radar sensor |
56L |
| B29/5 |
Right rear bumper intelligent radar sensor |
52L |
| B29/6 |
Left rear bumper radar sensor |
43L |
| B29/7 |
Right rear bumper radar sensor |
47L |
| B4/3 |
Fuel tank pressure sensor |
4L |
| B4/3 |
Fuel tank pressure sensor |
12L |
| B4/3 |
Fuel tank pressure sensor |
22L |
| B79/2 |
Transmission neutral position position sensor |
9L |

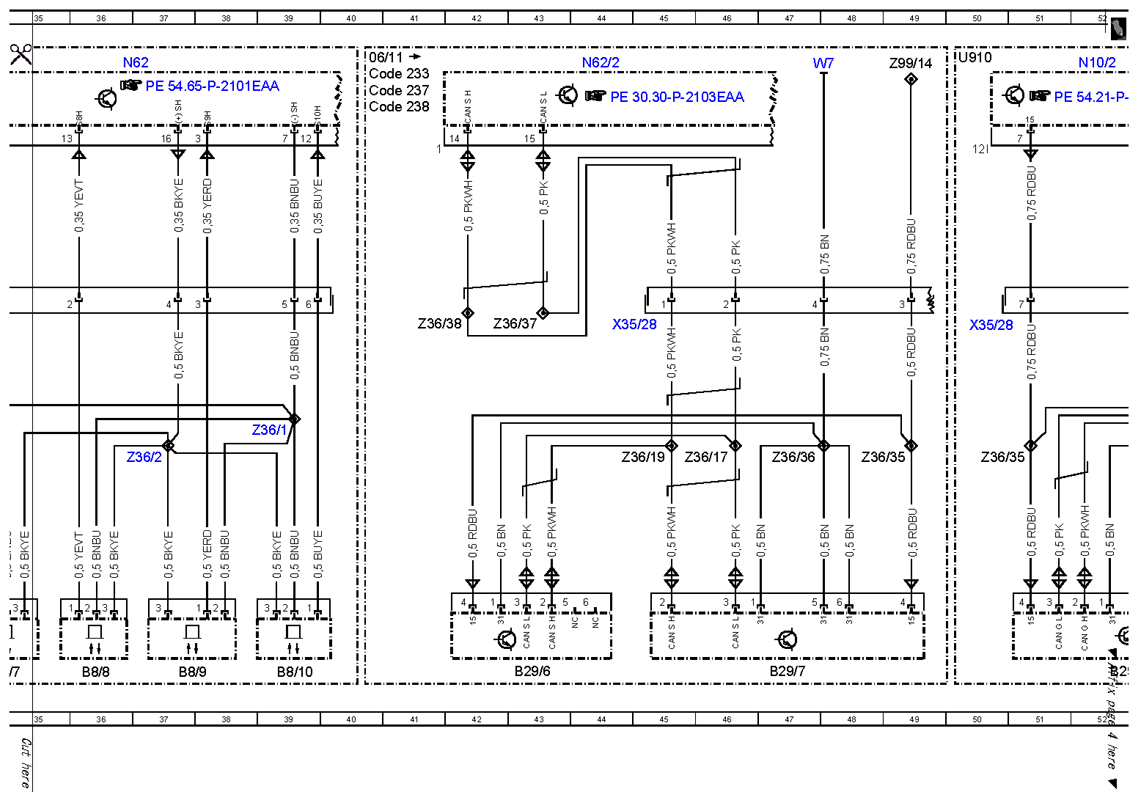

| B8/10 |
Outer left rear parking system distance sensor |
39L |
| B8/7 |
Outer right rear parking system distance sensor |
34L |
| B8/8 |
Inner right rear parking system distance sensor |
36L |
| B8/9 |
Inner left rear parking system distance sensor |
37L |
| CAN G |
Front end CAN |
57B |
| CAN I |
Drive train sensor CAN |
31K |
| Code 233 |
DISTRONIC PLUS |
40A |
| Code 237 |
Active Blind Spot Assist |
40B |
| Code 238 |
Active Lane Keeping Assist |
40B |
| Code 494 |
USA version |
1C |
| Code 494 |
USA version |
21C |
| Code 835 |
South Korea version |
10C |
| Code B03 |
ECO start/stop function |
7C |

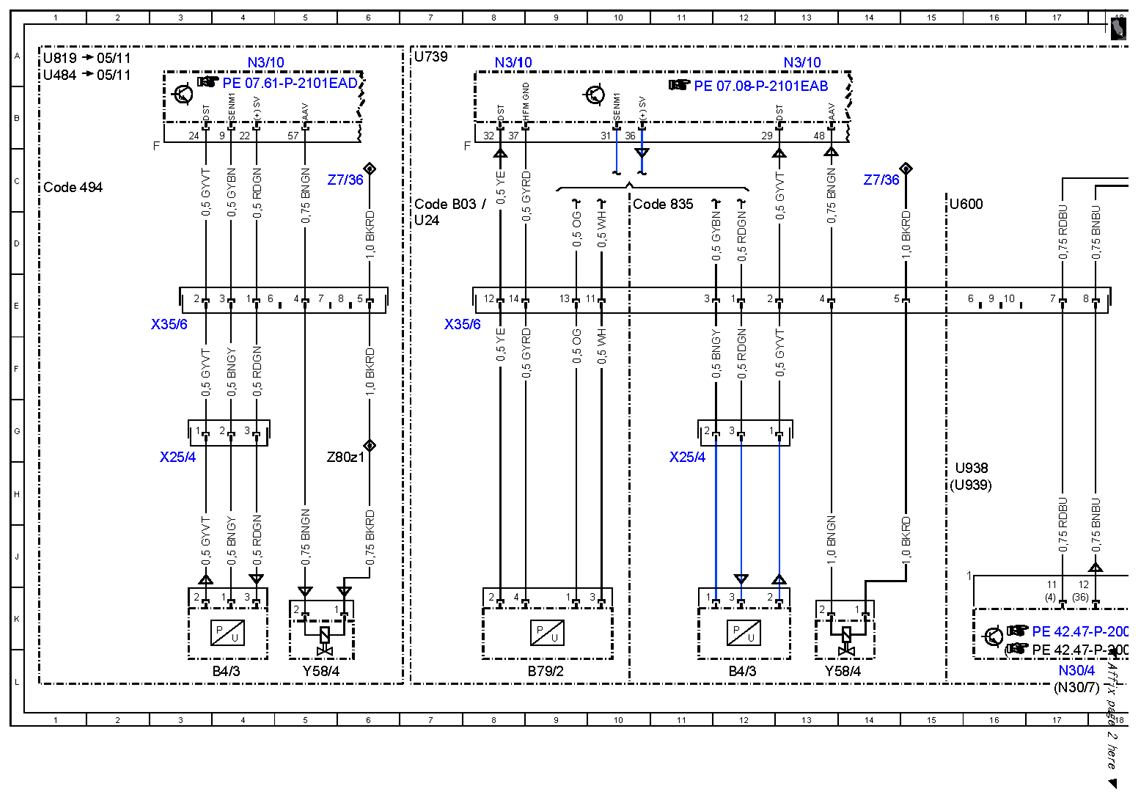

| N10/1 |
Front SAM control unit with fuse and relay module |
56A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
52A |
| N3/10 |
ME-SFI [ME] control unit |
8A |
| N3/10 |
ME-SFI [ME] control unit |
4A |
| N3/10 |
ME-SFI [ME] control unit |
13A |
| N3/10 |
ME-SFI [ME] control unit |
25A |
| N3/10 |
ME-SFI [ME] control unit |
31A |
| N30/4 |
Electronic Stability Program control unit |
17L |
| N30/7 |
Premium Electronic Stability Program control unit |
17L |
| N62 |
Parking system control unit |
36A |
| N62/2 |
Video and radar sensor system control unit |
44A |
| U157 |
Valid for combustion engine 272 DE |
21A |
| U24 |
Valid for manual transmission |
7D |
| U484 |
Valid for gasoline engine 273 |
1A |
| U538 |
Valid for PARKTRONIC |
33A |
| U600 |
Valid for power steering pump |
15C |
| U739 |
Valid for gasoline engine 271 DE |
7A |
| U819 |
Valid for gasoline engine 272 |
1A |
| U910 |
Valid for Blind Spot Assist |
50A |
| U938 |
Valid for ESP Basic |
15H |
| U939 |
Valid for ESP Premium |
15H |
| W7 |
Right wheelhouse trunk ground point |
54B |
| W7 |
Right wheelhouse trunk ground point |
47A |
| X25/4 |
Fuel tank electrical connector |
3H |
| X25/4 |
Fuel tank electrical connector |
11H |
| X25/4 |
Fuel tank electrical connector |
22H |
| X26 |
Interior and engine wiring harness electrical connector |
19H |
| X30/38 |
Potential distributor electrical connector (CAN I) |
31L |
| X35/28 |
Rear bumper PARKTRONIC electrical connector |
34E |
| X35/28 |
Rear bumper PARKTRONIC electrical connector |
45E |
| X35/28 |
Rear bumper PARKTRONIC electrical connector |
50E |
| X35/6 |
Instrument panel and module box electrical connector |
3E |
| X35/6 |
Instrument panel and module box electrical connector |
8E |
| X35/6 |
Instrument panel and module box electrical connector |
22E |
| X35/6 |
Instrument panel and module box electrical connector |
26E |
| X86/2 |
Electrical connector/temperature sensor/NOx storage catalytic converter |
29H |
| X86/2 |
Electrical connector/temperature sensor/NOx storage catalytic converter |
26H |
| Y10/1 |
Power steering pump quantity control valve |
20L |
| Y58/4 |
Activated charcoal filter shutoff valve |
13L |
| Y58/4 |
Activated charcoal filter shutoff valve |
5L |
| Y58/4 |
Activated charcoal filter shutoff valve |
24L |
| Z36/1 |
Rear PARKTRONIC sensors ground line connector sleeve |
39G |
| Z36/17 |
Rear sensor CAN connector sleeve |
46G |
| Z36/17 |
Rear sensor CAN connector sleeve |
57G |
| Z36/19 |
Rear sensor CAN connector sleeve |
45G |
| Z36/19 |
Rear sensor CAN connector sleeve |
56G |
| Z36/2 |
Rear PARKTRONIC sensors positive line connector sleeve |
37G |
| Z36/35 |
Rear radar sensors sensor power supply connector sleeve |
49G |
| Z36/35 |
Rear radar sensors sensor power supply connector sleeve |
50G |
| Z36/36 |
Rear radar sensors sensor ground connector sleeve |
47G |
| Z36/36 |
Rear radar sensors sensor ground connector sleeve |
54G |
| Z36/37 |
Interior CAN (low) connector sleeve |
43E |
| Z36/38 |
Interior CAN (high) connector sleeve |
41E |
| Z6/8 |
Sensor ground connector sleeve |
28L |
| Z7/36 |
Circuit 87 M2e connector sleeve |
6C |
| Z7/36 |
Circuit 87 M2e connector sleeve |
14C |
| Z7/36 |
Circuit 87 M2e connector sleeve |
32C |
| Z7/39 |
Circuit 87 M2i connector sleeve |
32L |
| Z7/39 |
Circuit 87 M2i connector sleeve |
24G |
| Z80z1 |
Cross section reduction connector sleeve |
6G |
| Z99/14 |
Circuit 15 connector sleeve, DISTRONIC |
49A |
