| A0 |
Color code key |
80L |
| A17/1 |
Left front KEYLESS GO door handle |
64L |
| A17/2 |
Right front KEYLESS GO door handle |
73L |
| A2 |
Radio |
33A |
| A2 |
Radio |
33A |
| A2/38 |
Left front door KEYLESS-GO antenna |
45L |
| A2/40 |
Right front door KEYLESS-GO antenna |
54L |
| A2/56 |
Radio with auto pilot system |
32A |
| A40/3 |
COMAND control unit |
38A |
| A85 |
Left front door lock |
67L |
| A85/1 |
Right front door lock |
69L |
| A85/1m2 |
Right front door opening assist motor |
69L |
| A85m2 |
Left front door opening assist motor |
66L |
| B151/1 |
Left front bumper pedestrian protection sensor |
12A |
| B151/3 |
Right front bumper pedestrian protection sensor |
13A |

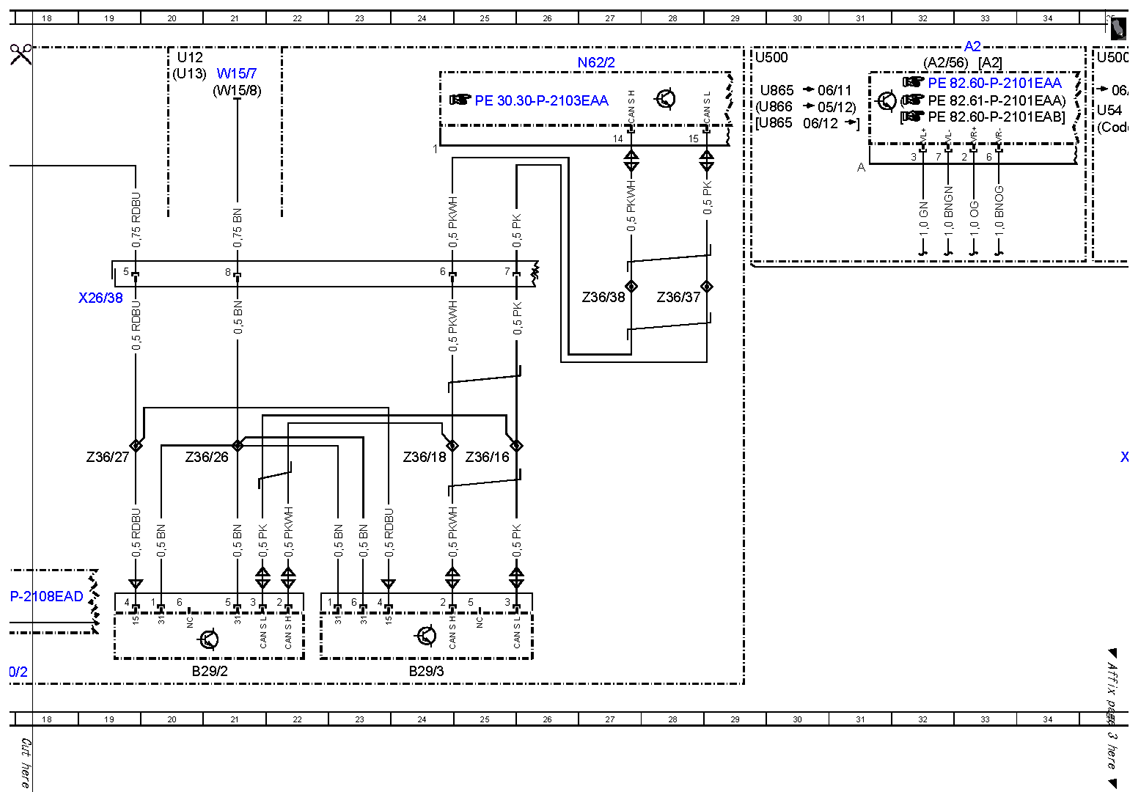

| B29/2 |
DISTRONIC sensor (DTR)/left front bumper |
20L |
| B29/3 |
DISTRONIC sensor (DTR)/right front bumper |
24L |
| B48/7 |
Left front door pressure sensor |
50L |
| B48/8 |
Right front door pressure sensor |
56L |

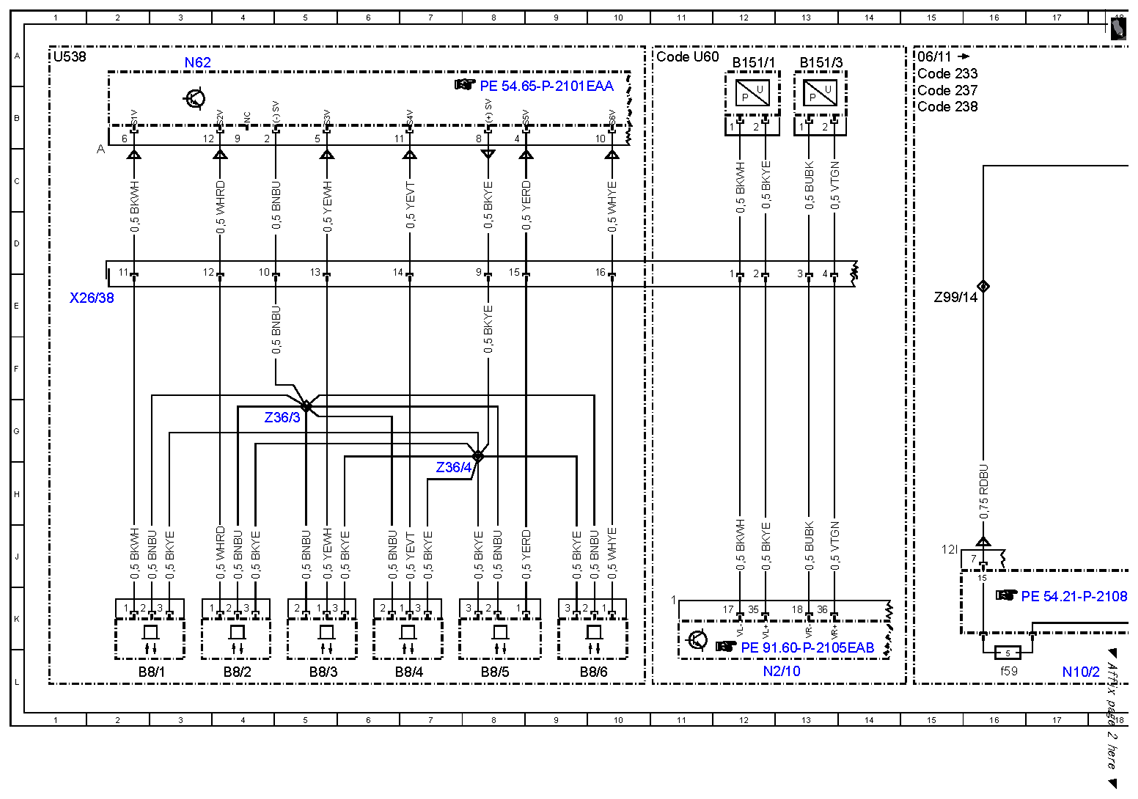

| B8/1 |
Outer left front parking system distance sensor |
2L |
| B8/2 |
Center left front parking system distance sensor |
4L |
| B8/3 |
Inner left front parking system distance sensor |
5L |
| B8/4 |
Inner right front parking system distance sensor |
7L |
| B8/5 |
Center right front parking system distance sensor |
8L |
| B8/6 |
Outer right front parking system distance sensor |
9L |
| Code 233 |
DISTRONIC PLUS |
15A |
| Code 237 |
Active Blind Spot Assist |
15B |
| Code 238 |
Active Lane Keeping Assist |
15B |
| Code 498 |
Japan version |
35B |
| Code U60 |
Pedestrian protection |
11A |

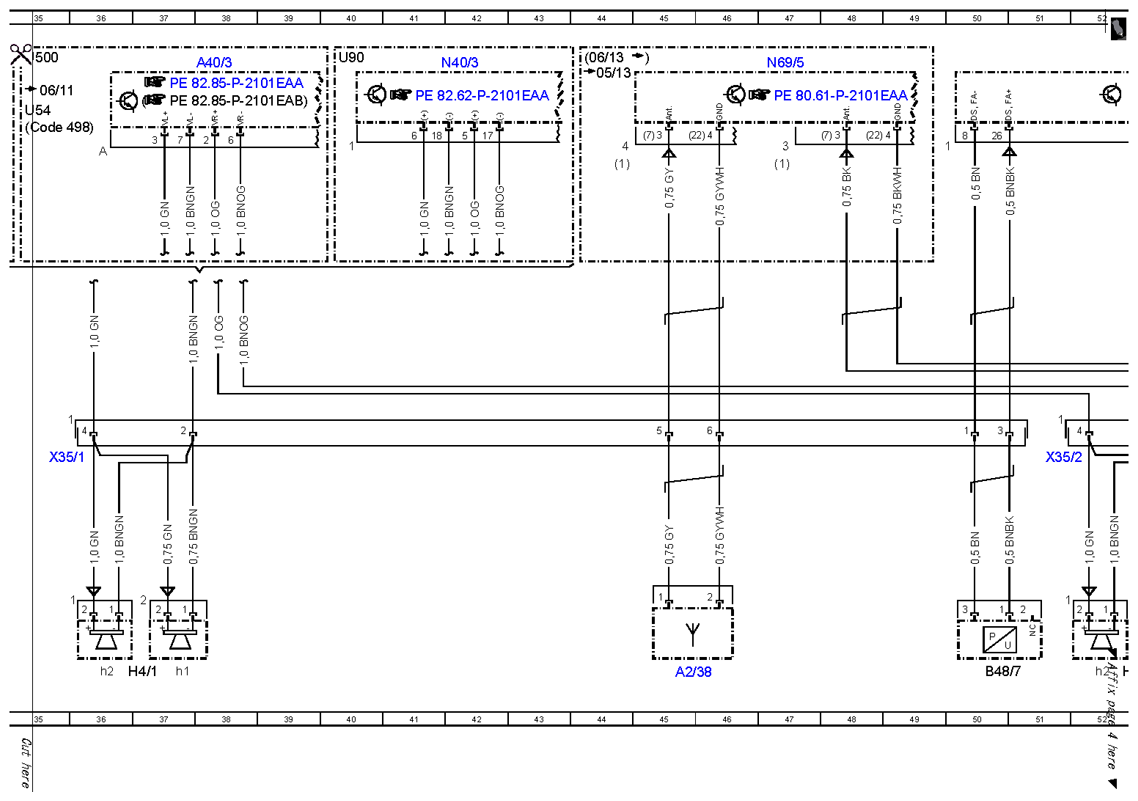

| H4/1 |
Left door speaker |
37L |
| H4/1h1 |
Left door tweeter |
37L |
| H4/1h2 |
Left door bass speaker |
36L |
| H4/2 |
Right door speaker |
52L |
| H4/2h1 |
Right door tweeter |
53L |
| H4/2h2 |
Right door bass speaker |
52L |
| N10/2 |
Rear SAM control unit with fuse and relay module |
17L |
| N10/2f59 |
Fuse 59 |
16L |
| N2/10 |
Supplemental restraint system control unit |
12L |
| N2/10 |
Supplemental restraint system control unit |
58A |
| N2/10 |
Supplemental restraint system control unit |
53A |
| N40/3 |
Sound system amplifier control unit |
42A |
| N62 |
Parking system control unit |
3A |
| N62/2 |
Video and radar sensor system control unit |
27A |
| N69/5 |
KEYLESS-GO control unit |
47A |
| N69/5 |
KEYLESS-GO control unit |
64A |
| N69/5 |
KEYLESS-GO control unit |
73A |
| N69/5 |
KEYLESS-GO control unit |
68A |

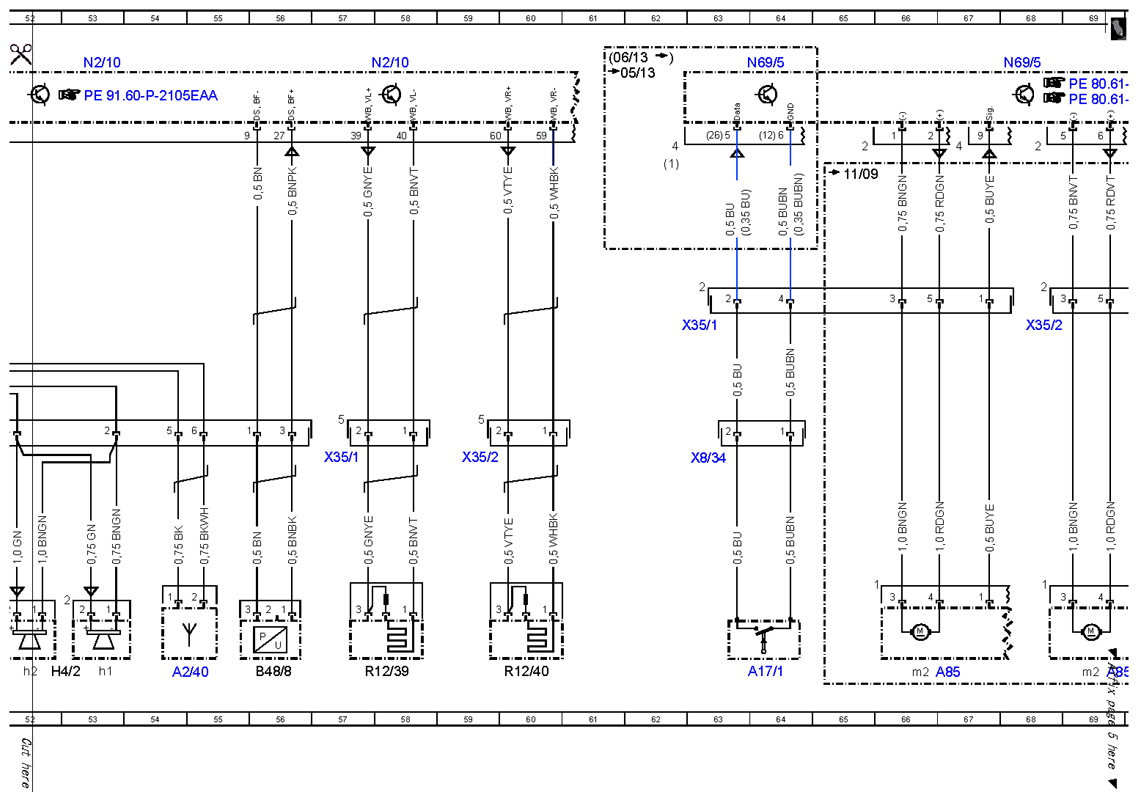

| R12/39 |
Left head/thoraxbag squib |
58L |
| R12/40 |
Right head/thoraxbag squib |
60L |
| U12 |
Valid for left-hand drive vehicles |
20A |
| U13 |
Valid for right-hand drive vehicles |
20A |
| U500 |
Not valid for sound system |
29A |
| U500 |
Not valid for sound system |
35A |
| U538 |
Valid for PARKTRONIC |
1A |
| U54 |
Valid for all except Japan |
35B |
| U865 |
Valid for Audio 20 |
29B |
| U865 |
Valid for Audio 20 |
29B |
| U866 |
Valid for Audio 50 |
29B |
| U90 |
Valid for sound system |
40A |
| W15/7 |
Right front footwell ground point |
21A |
| W15/8 |
Ground point (right front footwell CAN) |
21B |
| X26/38 |
Front bumper and frame wiring harness electrical connector |
2E |
| X26/38 |
Front bumper and frame wiring harness electrical connector |
19E |
| X35/1 |
Left front door electrical connector |
35H |
| X35/1 |
Left front door electrical connector |
57H |
| X35/1 |
Left front door electrical connector |
63E |
| X35/2 |
Right front door electrical connector |
51H |
| X35/2 |
Right front door electrical connector |
59H |
| X35/2 |
Right front door electrical connector |
68E |

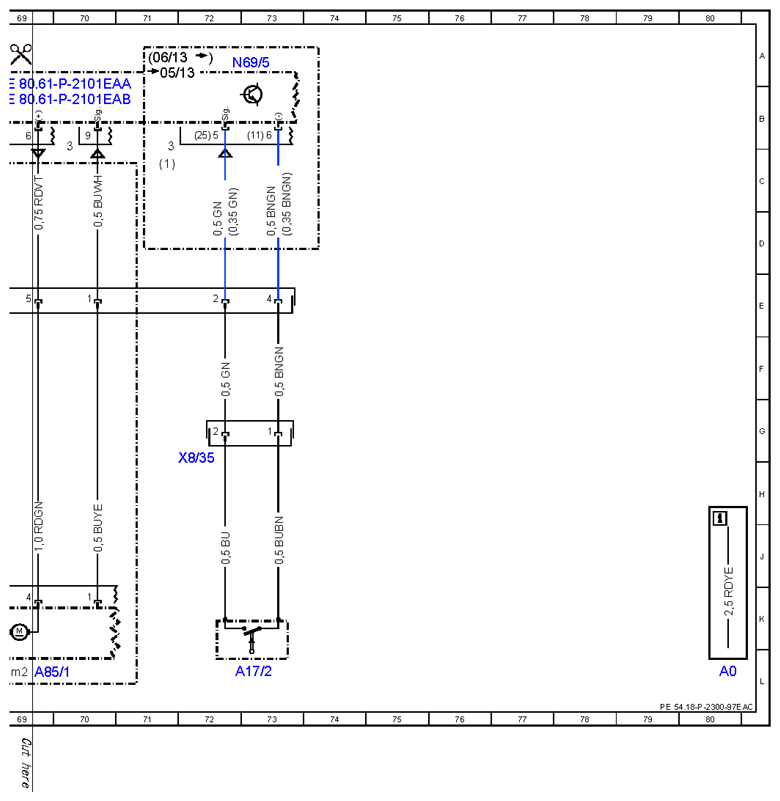

| X8/34 |
Left front KEYLESS GO door handle electrical connector |
63H |
| X8/35 |
Right front KEYLESS GO door handle electrical connector |
72H |
| Z36/16 |
Front sensor CAN connector sleeve |
25G |
| Z36/18 |
Front sensor CAN connector sleeve |
24G |
| Z36/26 |
Front DISTRONIC PLUS sensor ground connector sleeve |
21G |
| Z36/27 |
DISTRONIC front voltage supply connector sleeve |
19G |
| Z36/3 |
Front PARKTRONIC sensors ground line connector sleeve |
5G |
| Z36/37 |
Interior CAN (low) connector sleeve |
28E |
| Z36/38 |
Interior CAN (high) connector sleeve |
27E |
| Z36/4 |
Front PARKTRONIC sensors positive line connector sleeve |
7H |
| Z99/14 |
Circuit 15 connector sleeve, DISTRONIC |
15E |
