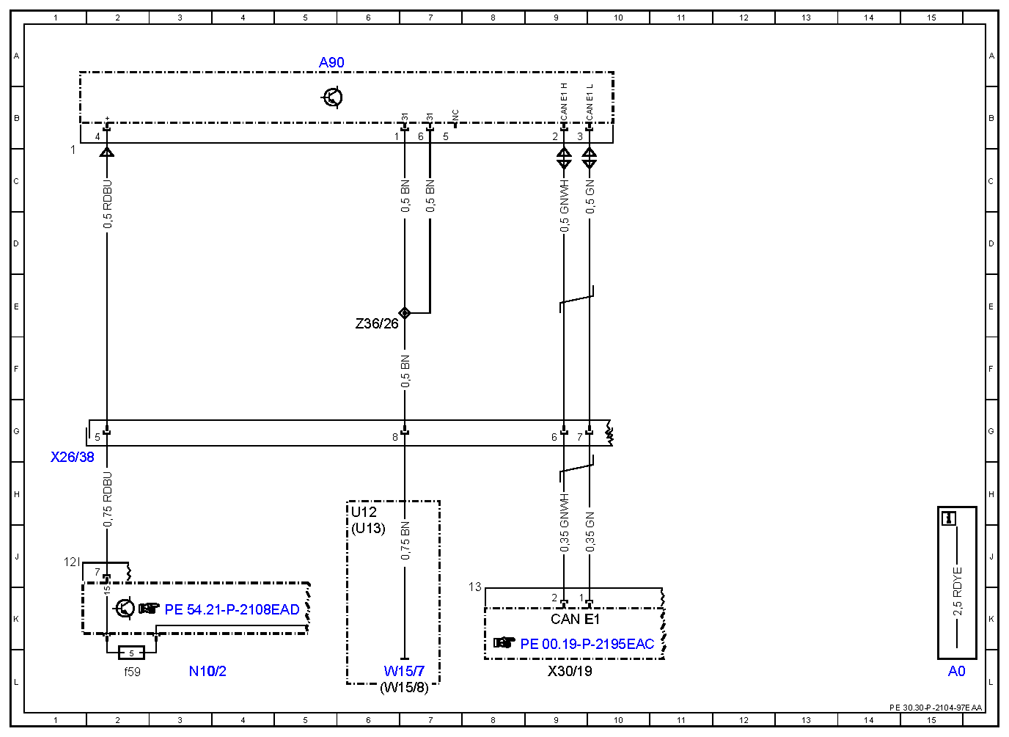

| A0 |
Color code key |
15L |
| A90 |
COLLISION PREVENTION ASSIST controller unit |
5A |
| CAN E1 |
Chassis CAN 1 |
9K |
| N10/2 |
Rear SAM control unit with fuse and relay module |
3L |
| N10/2f59 |
Fuse 59 |
2L |
| U12 |
Valid for left-hand drive vehicles |
6H |
| U13 |
Valid for right-hand drive vehicles |
6J |
| W15/7 |
Right front footwell ground point |
6L |
| W15/8 |
Ground point (right front footwell CAN) |
6L |
| X26/38 |
Front bumper and frame wiring harness electrical connector |
1H |
| X30/19 |
Vehicle floor chassis CAN E1 potential distributor electrical connector |
9L |
| Z36/26 |
Front DISTRONIC PLUS sensor ground connector sleeve |
6E |
