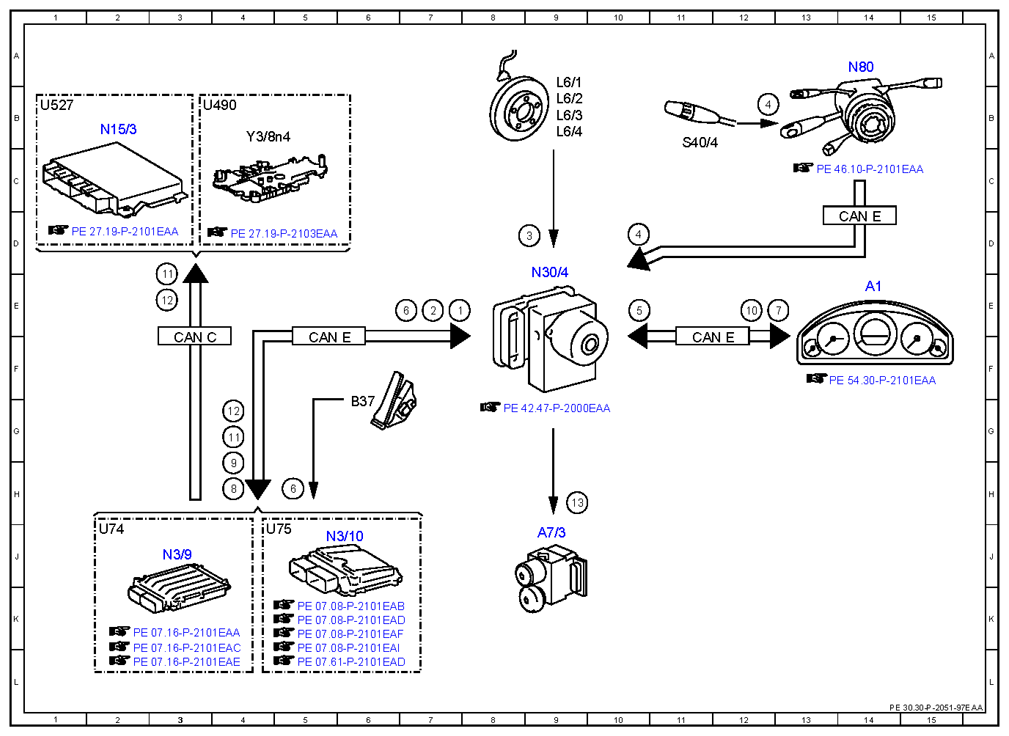

| 1 |
Circuit 61, status |
7E |
| 10 |
Instrument cluster, message |
12E |
| 11 |
Shift stage, request |
3E |
| 11 |
Shift stage, request |
4G |
| 12 |
Stage limitation, request |
4G |
| 12 |
Stage limitation, request |
3E |
| 13 |
Service brake braking torque, actuation |
9H |
| 2 |
"PT_Rdy", signal |
7E |
| 3 |
Wheel speed, signal |
9D |
| 4 |
Cruise control, request |
12B |
| 4 |
Cruise control, request |
10D |
| 5 |
Permanent limiter, status |
10E |
| 6 |
Accelerator pedal sensor, signal |
5H |
| 6 |
Accelerator pedal sensor, signal |
7E |
| 7 |
Speed setting, status |
13E |
| 8 |
Engine torque, reduce request |
4H |
| 9 |
Engine torque, increase request |
4H |
| A1 |
Instrument cluster |
14E |
| A7/3 |
Traction system hydraulic unit |
9J |
| B37 |
Accelerator pedal sensor |
6G |
| CAN C |
Drive train CAN |
3F |
| CAN E |
Chassis CAN |
11F |
| CAN E |
Chassis CAN |
5F |
| CAN E |
Chassis CAN |
14D |
| L6/1 |
Left front axle RPM sensor |
9B |
| L6/2 |
Right front axle RPM sensor |
9B |
| L6/3 |
Left rear axle RPM sensor |
9B |
| L6/4 |
Right rear axle RPM sensor |
9B |
| N15/3 |
Electronic transmission control unit |
2B |
| N3/10 |
ME-SFI [ME] control unit |
5J |
| N3/9 |
CDI control unit |
3J |
| N30/4 |
Electronic Stability Program control unit |
9E |
| N80 |
Steering column module control unit |
14A |
| S40/4 |
Cruise control lever |
11B |
| U490 |
Valid for 7-speed automatic transmission |
3B |
| U527 |
Valid for electronic transmission control |
1B |
| U74 |
Valid for diesel engines |
2J |
| U75 |
Valid for gasoline engines |
4J |
| Y3/8n4 |
Fully integrated transmission control unit |
4B |
