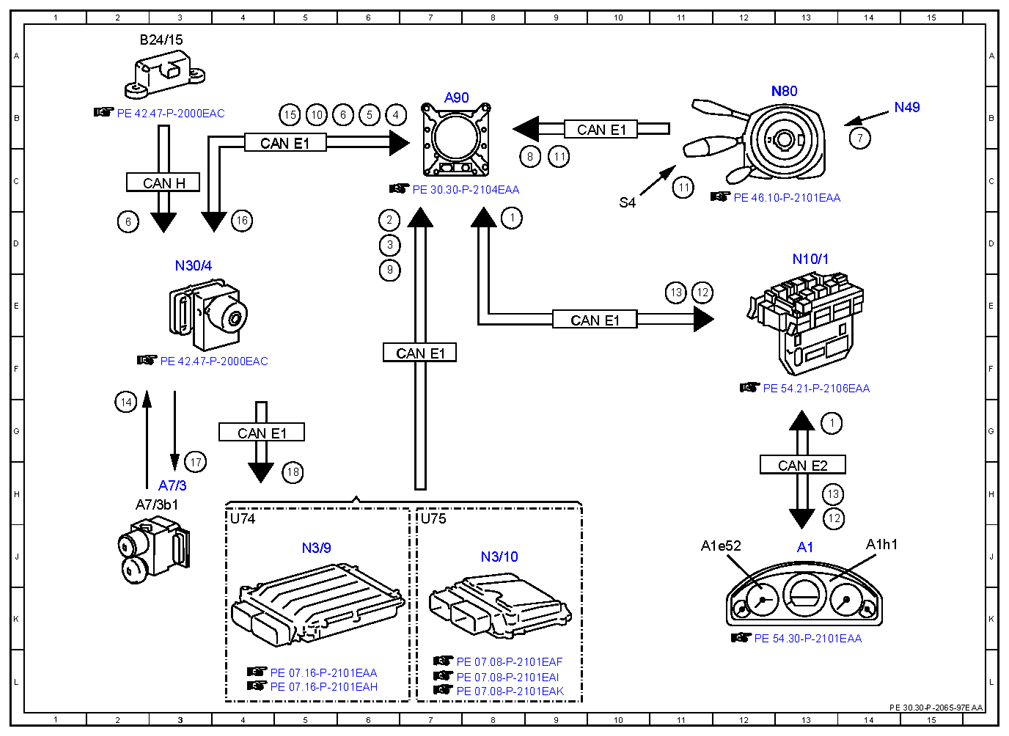

| 1 |
COLLISION PREVENTION ASSIST, status |
8C |
| 1 |
COLLISION PREVENTION ASSIST, status |
8C |
| 10 |
Brake pedal, status |
5B |
| 11 |
Combination switch, status |
9C |
| 11 |
Combination switch, status |
11C |
| 12 |
Warning tone, request |
13H |
| 12 |
Warning tone, request |
11D |
| 13 |
Warning lamp, request |
11D |
| 13 |
Warning lamp, request |
11D |
| 14 |
Front axle brake pressure sensor, signal |
2F |
| 15 |
Braking torque, signal |
5B |
| 16 |
Service brake braking torque, request |
4D |
| 17 |
Traction system hydraulic unit, actuation |
3H |
| 18 |
Engine torque, reduce request |
5H |
| 2 |
Engine running, signal |
6D |
| 3 |
Drivetrain operational, signal |
6D |
| 4 |
Wheel speed, signal |
6B |
| 5 |
Wheel rotation direction, signal |
6B |
| 6 |
Yaw rate, lateral and longitudinal acceleration sensor, signal |
2D |
| 6 |
Yaw rate, lateral and longitudinal acceleration sensor, signal |
6B |
| 7 |
Steering angle sensor, signal |
14B |
| 8 |
Steering angle, signal |
9C |
| 9 |
Accelerator pedal position, signal |
6D |
| A1 |
Instrument cluster |
13J |
| A1e52 |
COLLISION PREVENTION ASSIST warning lamp |
11J |
| A1h1 |
Warning buzzer |
14J |
| A7/3 |
Traction system hydraulic unit |
3H |
| A7/3b1 |
Front axle brake pressure sensor |
2H |
| A90 |
COLLISION PREVENTION ASSIST controller unit |
7B |
| B24/15 |
Yaw rate, lateral and longitudinal acceleration sensor |
3A |
| CAN E1 |
Chassis CAN 1 |
10B |
| CAN E1 |
Chassis CAN 1 |
7F |
| CAN E1 |
Chassis CAN 1 |
9E |
| CAN E1 |
Chassis CAN 1 |
4B |
| CAN E1 |
Chassis CAN 1 |
4G |
| CAN E2 |
Chassis CAN 2 |
13H |
| CAN H |
Vehicle dynamics CAN |
3C |
| N10/1 |
Front SAM control unit with fuse and relay module |
13D |
| N3/10 |
ME-SFI [ME] control unit |
8J |
| N3/9 |
CDI control unit |
5J |
| N30/4 |
Electronic Stability Program control unit |
3D |
| N49 |
Steering angle sensor |
15B |
| N80 |
Steering column module control unit |
12B |
| S4 |
Combination switch |
10C |
| U74 |
Valid for diesel engines |
4H |
| U75 |
Valid for gasoline engines |
7H |
