Perform Cavity Preservation On Rear Axle Carrier - AR35.10-P-0010-03A
Model 117, 118, 156, 171, 172, 176, 177, 203, 204, 205, 209, 212, 213, 218, 238, 253
| 000 588 01 72 00 Sealing and corrosion protection gun | WS97.00-N-0002B |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1003-05A | Cavity preservation (free of solvents), 1 liter | A 000 986 72 70 10 |
- 1.1 Model 117, 118, 156, 176, 177, 204, 205, 212, 213, 218, 238, 253

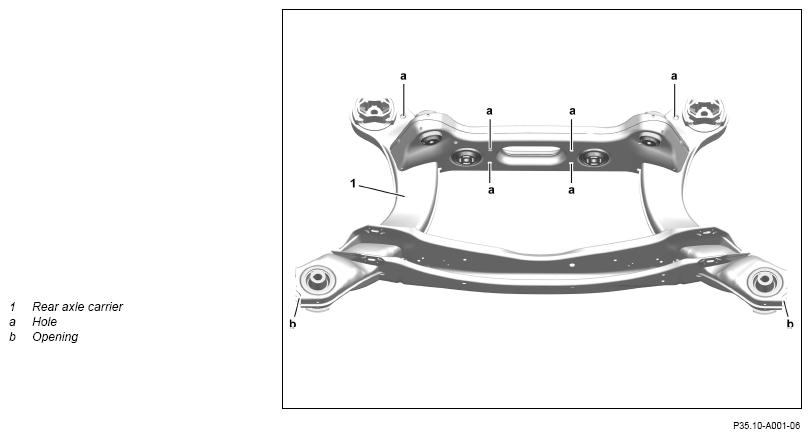

The Using sealing and corrosion protection gun, inject cavity preservation as far as possible through bores (a) and openings (b).
- 1.2 Model 171, 172, 203, 209
The Using sealing and corrosion protection gun, inject cavity preservation as far as possible through mounting openings of rear axle bearings.
Shown on model 213
