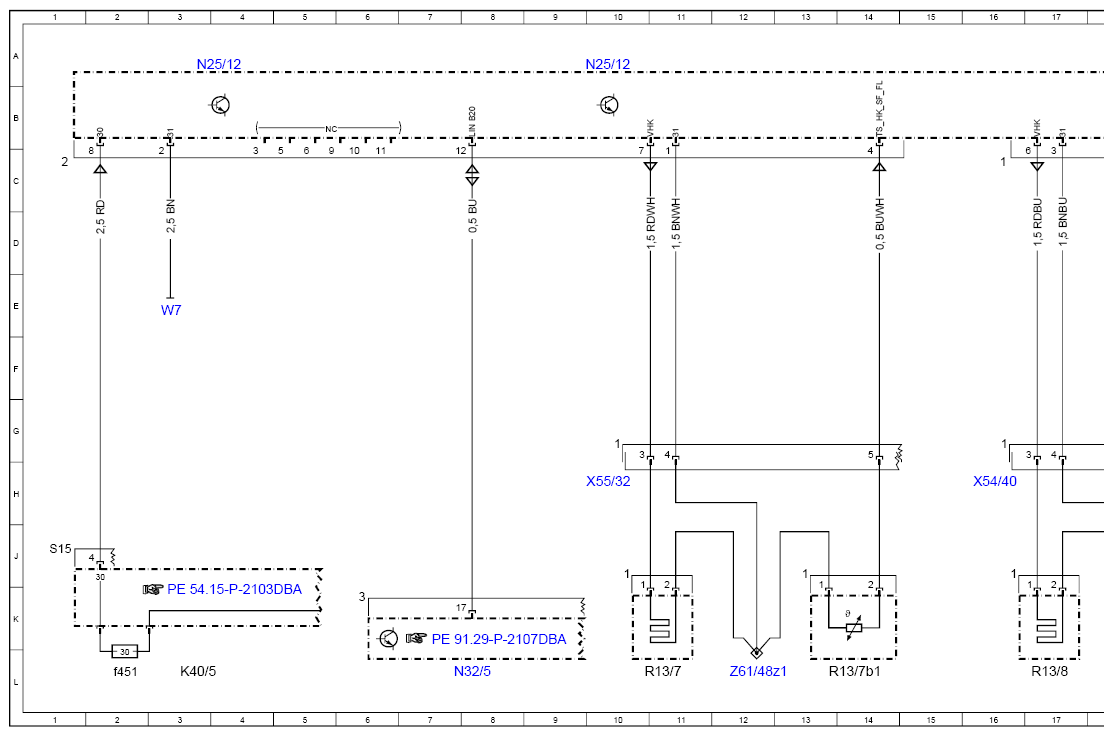

Wiring Diagram For Seat Heater Control Unit - PE91.30-P-2104-97DBD
Model 213 up to model year 2021 with code 903 (Rear comfort seat heating) Control unit N25/12
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 23L |
| K40/5 | Rear fuse and relay module | 3L |
| K40/5f451 | Fuse 451 | 2L |
| N25/12 | Right rear seat heater control unit | 3A |
| N25/12 | Right rear seat heater control unit | 10A |
| N25/12 | Right rear seat heater control unit | 18A |
| N32/5 | Right rear seat control unit | 8L |
| R13/7 | Right rear seat sitting surface heated cushion | 11L |
| R13/7b1 | Right rear seat sitting surface heater pad temperature sensor | 14L |
| R13/8 | Right rear backrest heater pad | 17L |
| R13/8b1 | Right rear seat backrest heater pad temperature sensor | 20L |
| W7 | Right wheelhouse trunk ground point | 3E |
| X54/40 | Right rear backrest heater pad electrical connector | 16H |
| X55/32 | Right rear seat sitting surface heater pad electrical connector | 10H |
| Z61/48z1 | Right rear cushion seat heater connector sleeve | 12L |
| Z61/52z1 | Right rear backrest seat heater connector sleeve | 18L |
