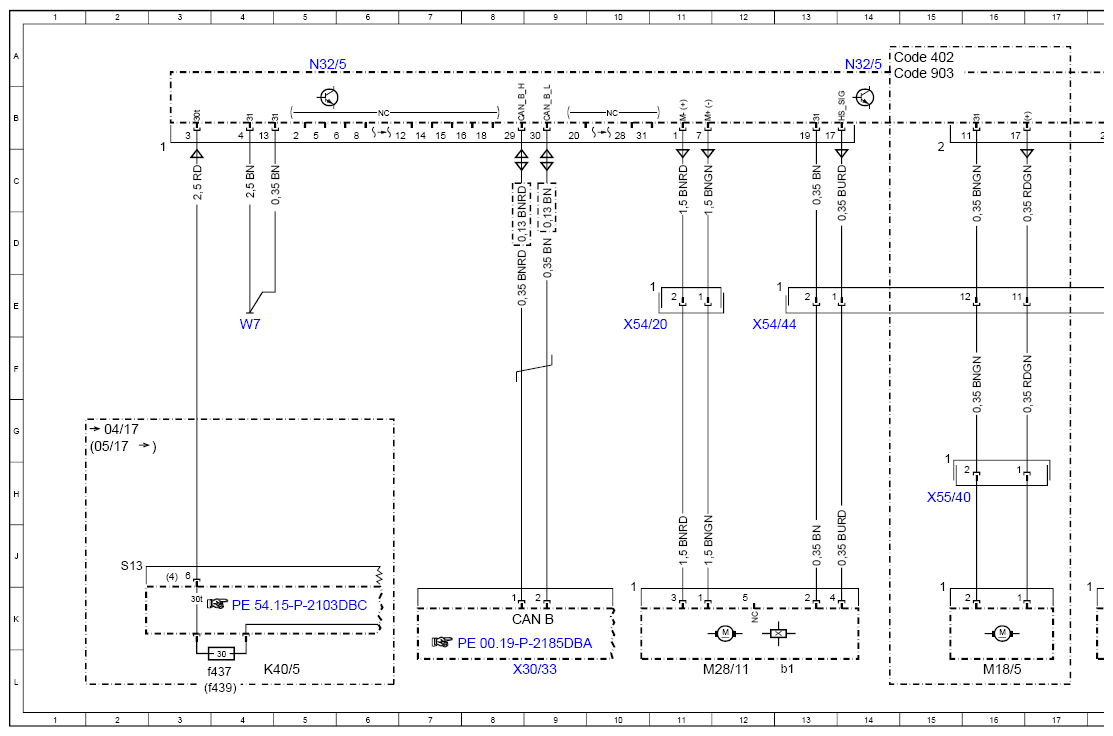

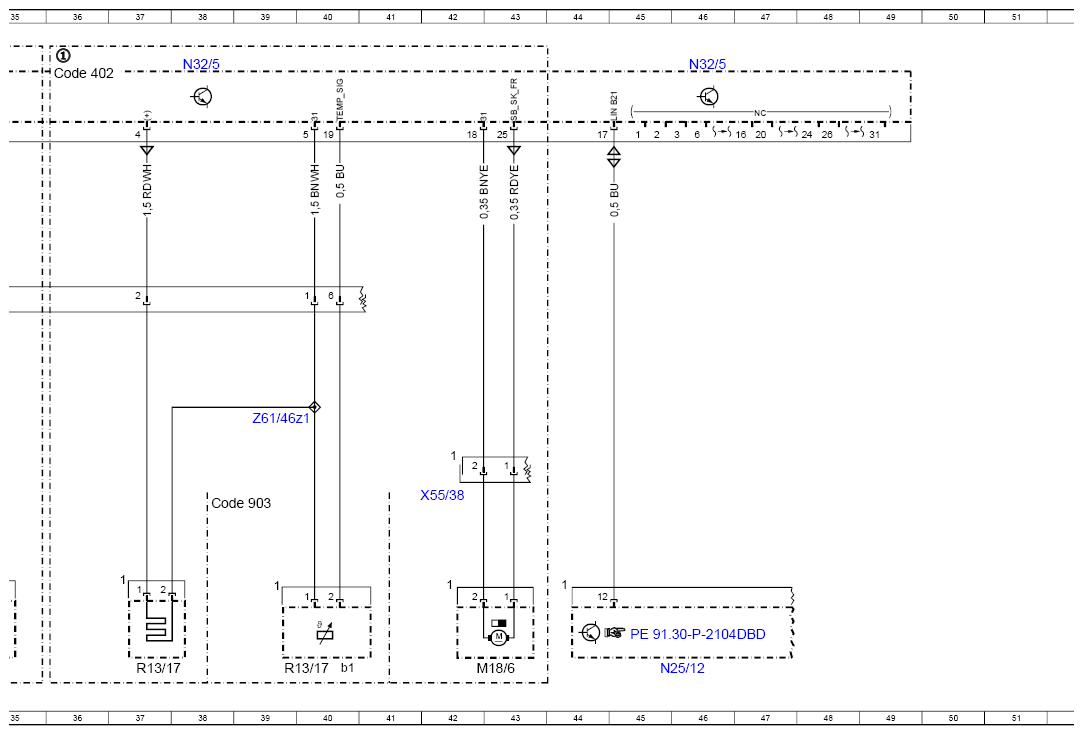

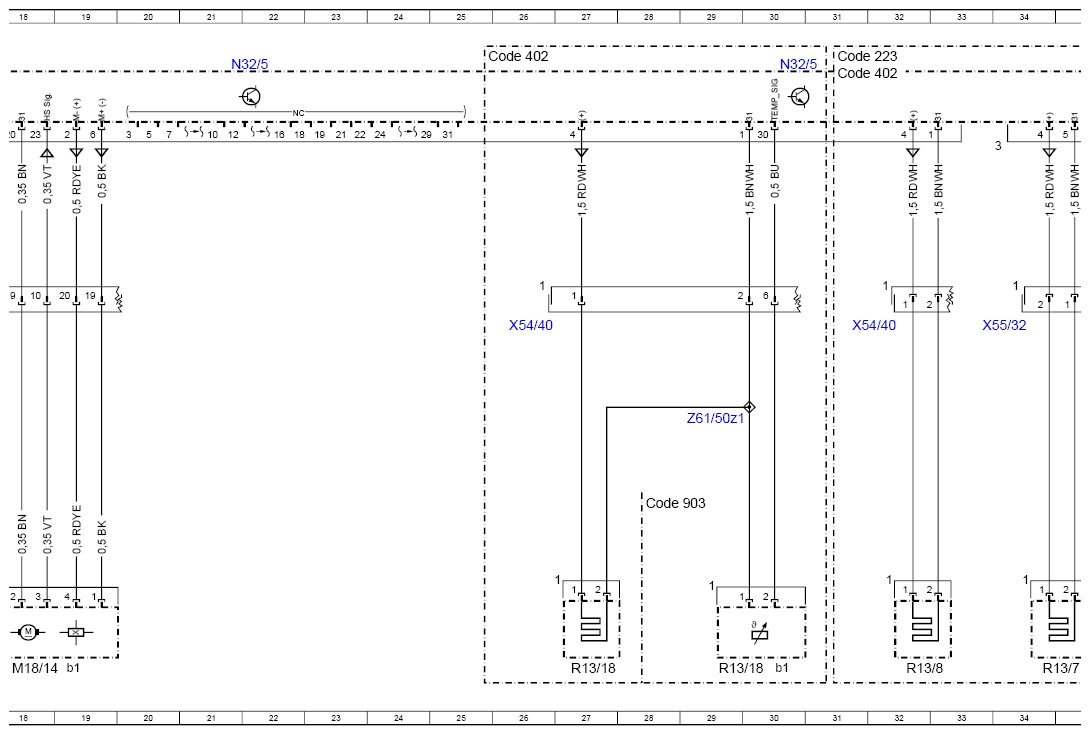

Wiring Diagram For Right Rear Seat Control Unit - PE91.29-P-2107-97DBA
Model 213 up to model year 2021 Control unit N32/5
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 56L |
| CAN B | Interior CAN | 9K |
| Code 223 | Electrically adjustable rear bench seat | 31A |
| Code 402 | Seat climate control in rear passenger compartment | 25A |
| Code 402 | Seat climate control in rear passenger compartment | 14A |
| Code 402 | Seat climate control in rear passenger compartment | 31A |
| Code 402 | Seat climate control in rear passenger compartment | 36A |
| Code 903 | Seat heater Plus for outer rear seats | 14A |
| Code 903 | Seat heater Plus for outer rear seats | 28H |
| Code 903 | Seat heater Plus for outer rear seats | 38H |
| K40/5 | Rear fuse and relay module | 4L |
| K40/5f437 | Fuse 437 | 4L |
| K40/5f439 | Fuse 439 | 4L |
| M18/14 | Right rear seat head restraint seat adjustment motor | 18L |
| M18/14b1 | Right rear seat head restraint seat adjustment motor Hall sensor | 19L |
| M18/5 | Right rear seat backrest ventilation motors | 16L |
| M18/6 | Right rear seat cushion ventilation motors | 43L |
| M28/11 | Right rear seat backrest inclination adjustment motor | 12L |
| M28/11b1 | Right rear seat backrest inclination adjustment Hall sensor | 13L |
| N25/12 | Right rear seat heater control unit | 46L |
| N32/5 | Right rear seat control unit | 5A |
| N32/5 | Right rear seat control unit | 14A |
| N32/5 | Right rear seat control unit | 21A |
| N32/5 | Right rear seat control unit | 30A |
| N32/5 | Right rear seat control unit | 38A |
| N32/5 | Right rear seat control unit | 46A |
| R13/17 | Seat cushion side bolster heater pad, right rear | 37L |
| R13/17 | Seat cushion side bolster heater pad, right rear | 39L |
| R13/17b1 | Seat cushion side bolster heater pad temperature sensor, right rear | 40L |
| R13/18 | Backrest side bolster heater pad, right rear | 27L |
| R13/18 | Backrest side bolster heater pad, right rear | 29L |
| R13/18b1 | Backrest side bolster heater pad temperature sensor, right rear | 30L |
| R13/7 | Right rear seat sitting surface heated cushion | 34L |
| R13/8 | Right rear backrest heater pad | 32L |
| W7 | Right wheelhouse trunk ground point | 4E |
| X30/33 | Right interior CAN (CAN B) potential distributor electrical connector | 9L |
| X54/20 | Right rear backrest electrical connector | 10E |
| X54/40 | Right rear backrest heater pad electrical connector | 32E |
| X54/40 | Right rear backrest heater pad electrical connector | 26E |
| X54/44 | Frame floor assembly/right rear seat backrest electrical connector | 13E |
| X55/32 | Right rear seat sitting surface heater pad electrical connector | 34E |
| X55/38 | Right rear seat cushion seat ventilation electrical connector | 42H |
| X55/40 | Right rear backrest electrical connector | 15H |
| Z61/46z1 | Right rear seat cushion side bolster seat heater connector sleeve | 39G |
| Z61/50z1 | Right rear backrest side bolster seat heater connector sleeve | 29G |
