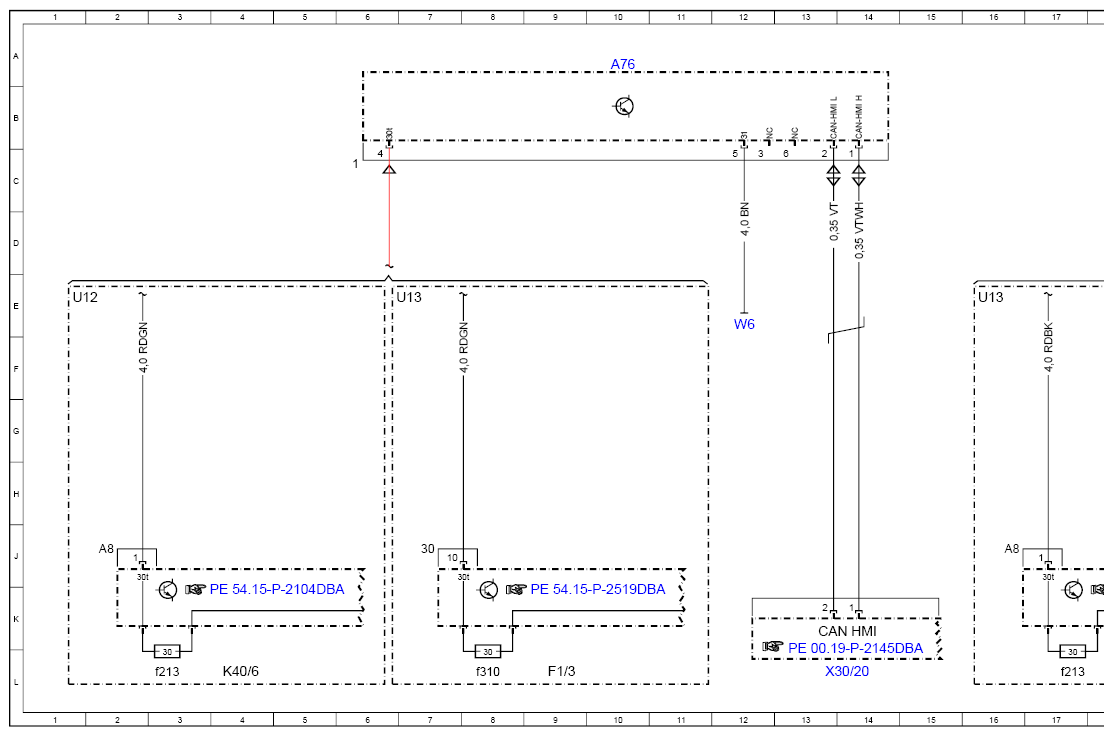

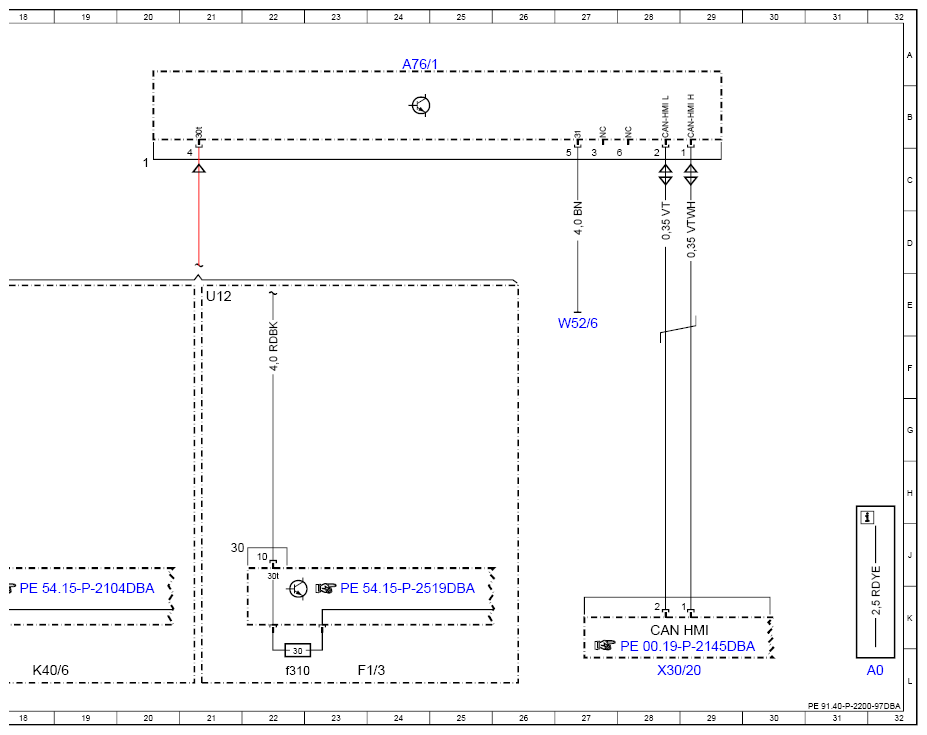

Wiring Diagram For Reversible Emergency Tensioning Retractor - PE91.40-P-2200-97DBA
Model 213 up to model year 2021 with code 299 (PRE-SAFE®) Reversible emergency tensioning retractor A76, A76/1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 32L |
| A76 | Left front reversible emergency tensioning retractor | 10A |
| A76/1 | Right front reversible emergency tensioning retractor | 24A |
| CAN HMI | User interface CAN | 13K |
| CAN HMI | User interface CAN | 28K |
| F1/3 | Passenger-side A-pillar fuse box | 9L |
| F1/3 | Passenger-side A-pillar fuse box | 23L |
| F1/3f310 | Fuse 310 | 8L |
| F1/3f310 | Fuse 310 | 22L |
| K40/6 | Driver-side fuse and relay module | 4L |
| K40/6 | Driver-side fuse and relay module | 18L |
| K40/6f213 | Fuse 213 | 3L |
| K40/6f213 | Fuse 213 | 17L |
| U12 | Valid for left-hand drive vehicles | 1E |
| U12 | Valid for left-hand drive vehicles | 21E |
| U13 | Valid for right-hand drive vehicles | 6E |
| U13 | Valid for right-hand drive vehicles | 16E |
| W52/6 | Right center longitudinal member ground point | 27E |
| W6 | Left wheel arch trunk ground point | 12E |
| X30/20 | User interface CAN (CAN HMI) potential distributor electrical connector | 13L |
| X30/20 | User interface CAN (CAN HMI) potential distributor electrical connector | 28L |
