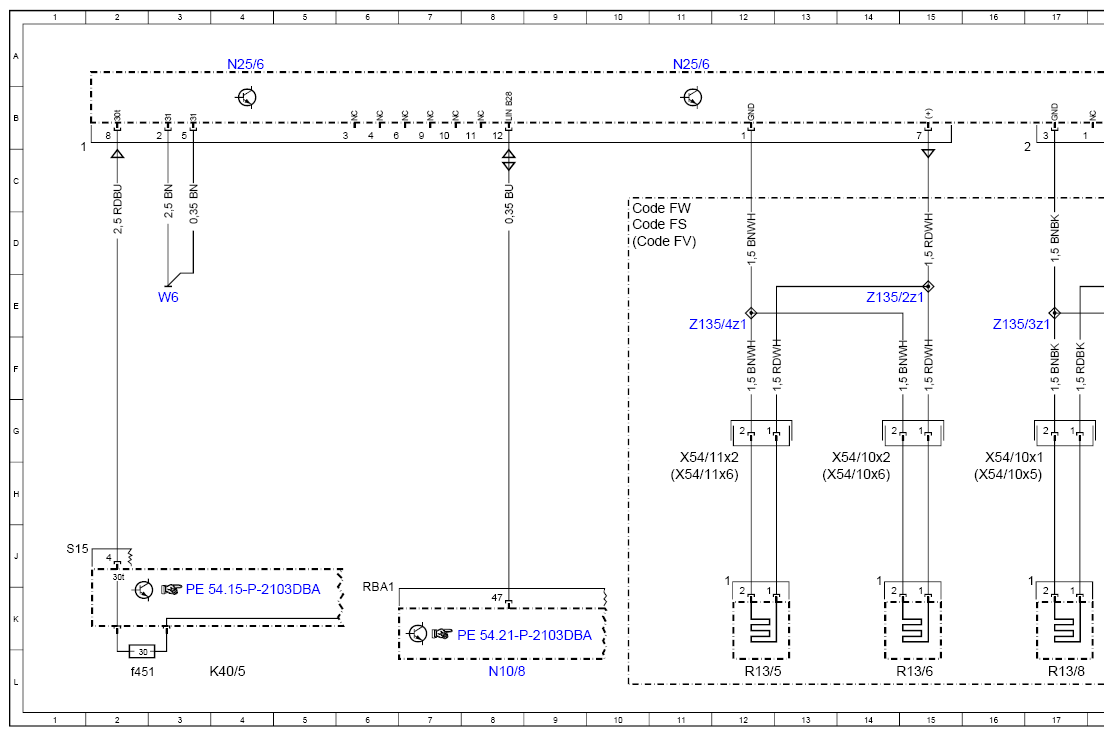

Wiring Diagram For Rear Heated Seats Control Unit - PE91.30-P-2101-97DBA
Model 213 up to model year 2021 with code 872 (Left and right rear seat heating) Control unit N25/6
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 23L |
| Code 872 | Left and right rear seat heaters | |
| Code FS | STATION WAGON | 10D |
| Code FV | LONG SEDAN | 10D |
| Code FW | SEDAN | 10D |
| K40/5 | Rear fuse and relay module | 4L |
| K40/5f451 | Fuse 451 | 2L |
| N10/8 | Rear SAM control unit | 8L |
| N25/6 | Rear seat heaters control unit | 4A |
| N25/6 | Rear seat heaters control unit | 11A |
| N25/6 | Rear seat heaters control unit | 20A |
| R13/5 | Left rear seat sitting surface heated cushion | 12L |
| R13/6 | Left rear backrest heated cushion | 15L |
| R13/7 | Right rear seat sitting surface heated cushion | 19L |
| R13/8 | Right rear backrest heater pad | 17L |
| W6 | Left wheel arch trunk ground point | 3E |
| X54/10x1 | 16H | |
| X54/10x2 | 14H | |
| X54/10x5 | 16H | |
| X54/10x6 | 14H | |
| X54/11x1 | 19H | |
| X54/11x2 | 11H | |
| X54/11x5 | 19H | |
| X54/11x6 | 11H | |
| Z135/1z1 | Left rear reclining seat heater pad circuit 30 connector sleeve | 19E |
| Z135/2z1 | Right rear reclining seat heater pad circuit 30 connector sleeve | 14E |
| Z135/3z1 | Left rear reclining seat heater pad circuit 31 connector sleeve | 16E |
| Z135/4z1 | Right rear reclining seat heater pad circuit 31 connector sleeve | 12E |
