Location Of Z-Connector Sleeves (Line Connections In Wiring Harness) - Interior Compartment, Left - GF00.19-P-3001-04DBA

Model 213

up to model year 2021

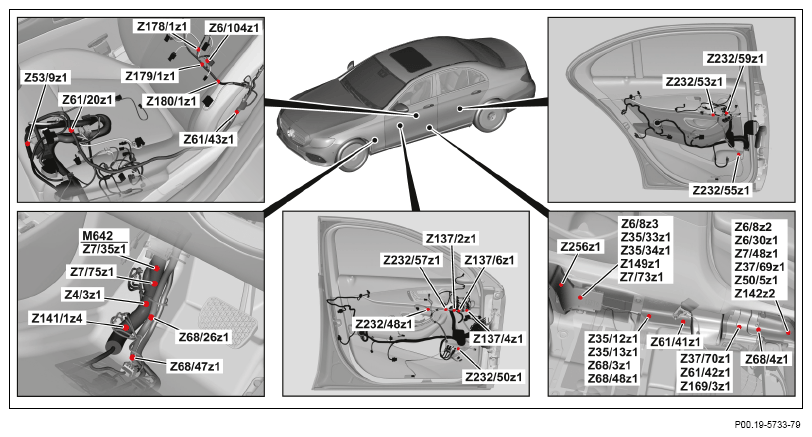

G13769355Courtesy of MERCEDES-BENZ USA

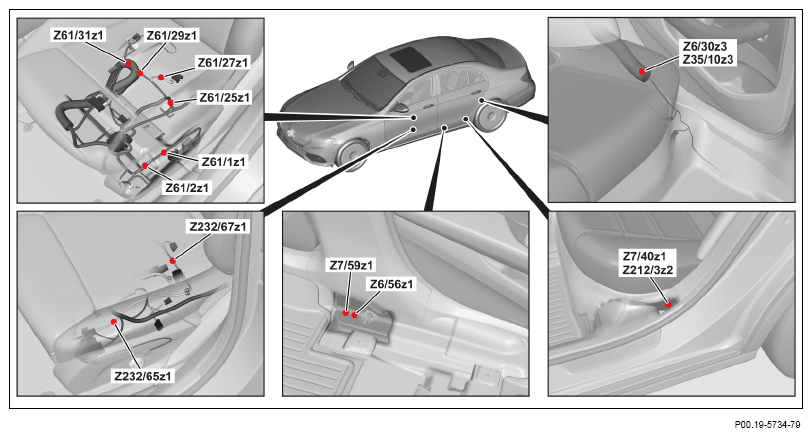

G13769356Courtesy of MERCEDES-BENZ USA

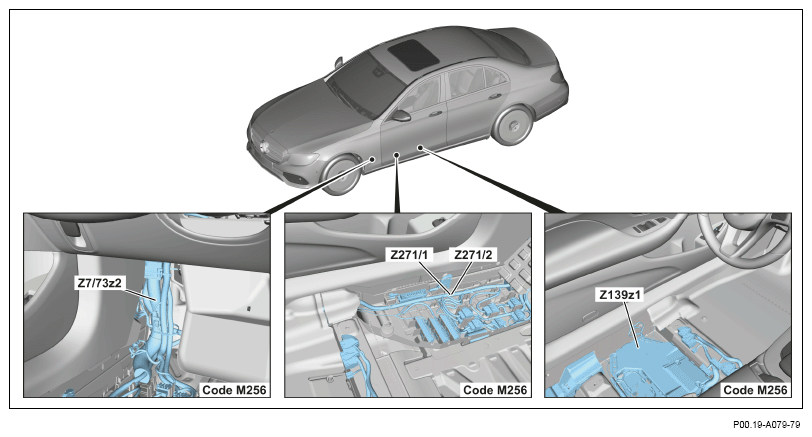

G13769357Courtesy of MERCEDES-BENZ USA

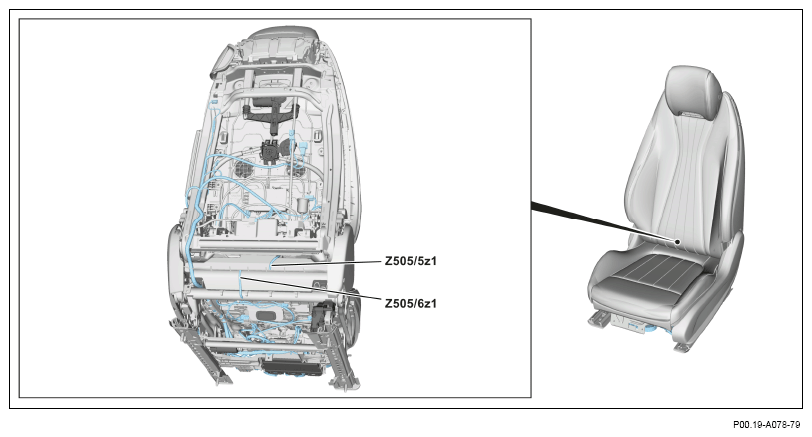

G13769358Courtesy of MERCEDES-BENZ USA

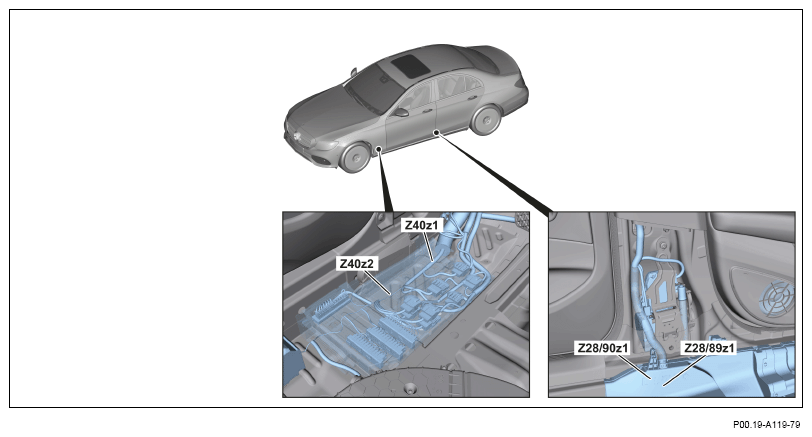

G13769359Courtesy of MERCEDES-BENZ USA

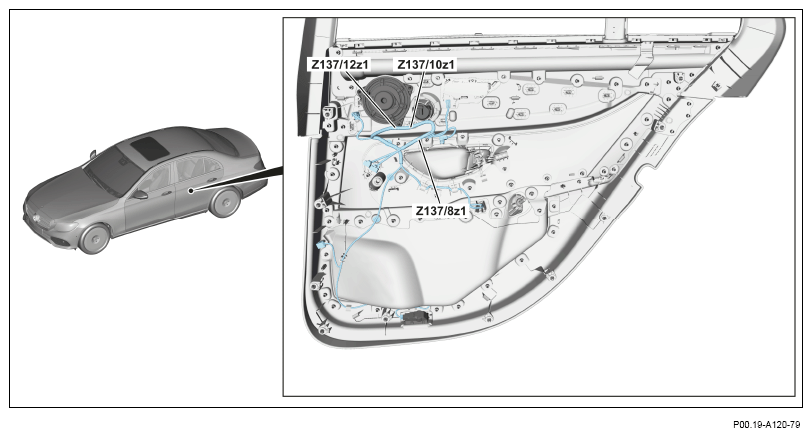

G13769360Courtesy of MERCEDES-BENZ USA

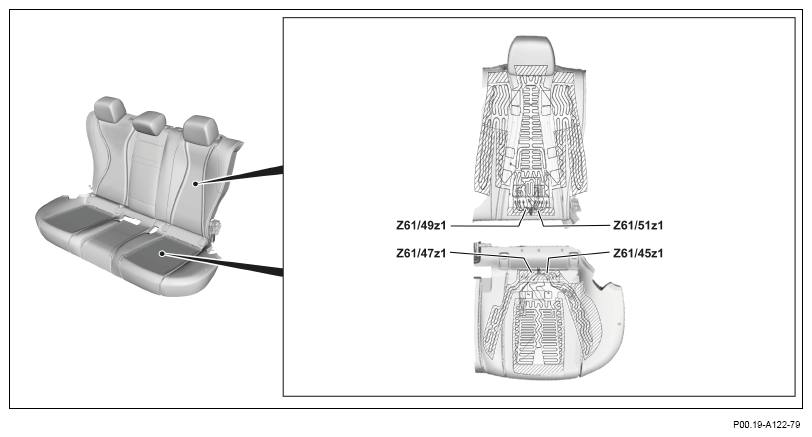

G13769361Courtesy of MERCEDES-BENZ USA
