Remove/Install Mounting Supports For Front Seat - AR86.20-P-0009LWE

Model 213, 257

with code 45P (Disability conversion - Sales control code)

Courtesy of MERCEDES-BENZ USA

	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove/install
1	Remove front seat	Model 213 with code 45P (Disability conversion - Sales control code)	AR91.10-P-1000LW
		Model 257 with code 45P (Disability conversion - Sales control code)	AR91.10-P-1000FR

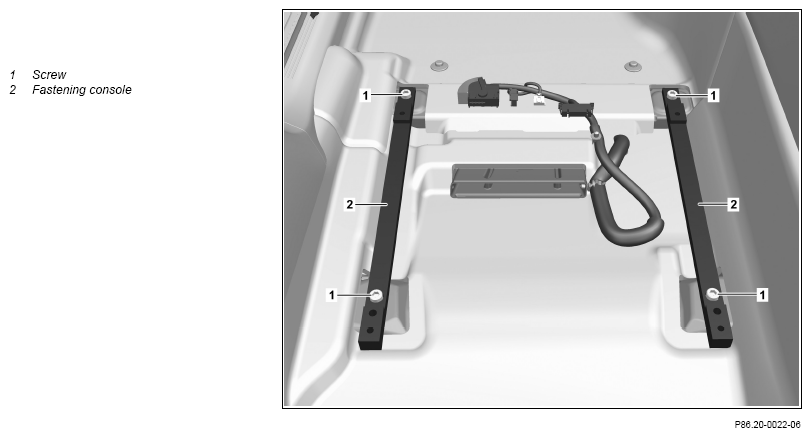

2	Remove screw/bolts (1)	Screw/bolt, seat adapter (seat adjustment toward rear) to vehicle floor	*BA86.20-P-1014-04A
3	Remove mounting consoles (2)
4	Install in the reverse order

DISABILITY EQUIPMENT

Number	Designation		Model 213	Model 257
BA86.20-P-1014-04A	Screw/bolt, seat adapter (seat adjustment toward rear) to vehicle floor	Nm	50	50
