Remove/Install Holder For Steering Wheel Knob - AR86.20-P-0001LWE

Model 213, 257

with code 45P (Disability conversion - Sales control code)

Courtesy of MERCEDES-BENZ USA

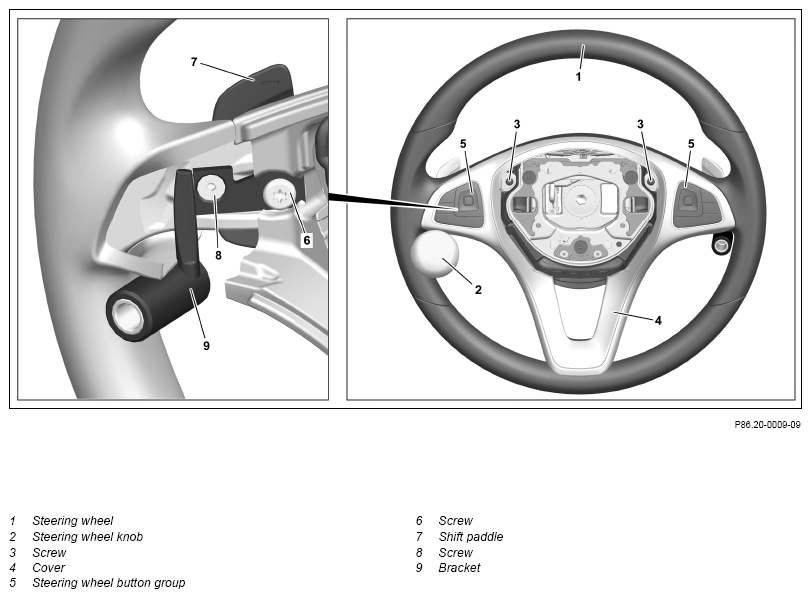

Shown on model 213 on left side

	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove/install
1	Remove airbag from steering wheel (1)	Model 213 with code 45P (Disability conversion - Sales control code)	AR91.60-P-0660LW
		Model 257 with code 45P (Disability conversion - Sales control code)	AR91.60-P-0660FR
2	Remove steering wheel knob (2)
3	Remove bolts (3)
4	Unclip trim (4), disconnect electrical connector at left and right steering wheel button group (5) and remove trim (4)
5	Remove bolt (6)	Gearshift paddle (7) is also secured with screw (6) to steering wheel.
6	Remove screw (8) and remove bracket (9)	Screw/bolt, steering wheel knob bracket to steering wheel	*BA86.20-P-1013-04A
7	Install in the reverse order
