Remove/Install Holder For Pedal Cover - AR86.20-P-0005LWE
Model 213, 257
with code 45P (Disability conversion - Sales control code)

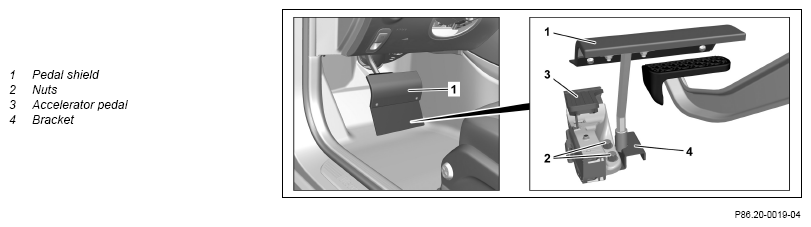

Shown on model 213
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||
| 1 | Remove pedal cover (1) from bracket (4) | ||
| 2 | Remove nuts (2) at accelerator pedal (3) | *BA86.20-P-1003-04A | |
| 3 | Remove accelerator pedal (3) and set down with connected electric lines | ||
| 4 | Remove bracket (4) | ||
| 5 | Install in the reverse order |
DISABILITY EQUIPMENT
| Number | Designation | Model 213 | Model 257 | |
|---|---|---|---|---|
| BA86.20-P-1003-04A | Nut, pedal cover/accelerator pedal to firewall | Nm | 10 | 10 |
