Remove/Install Driver For Brake Pedal - AR86.20-P-0006LWE
Model 213, 257
with code 45P (Disability conversion - Sales control code)

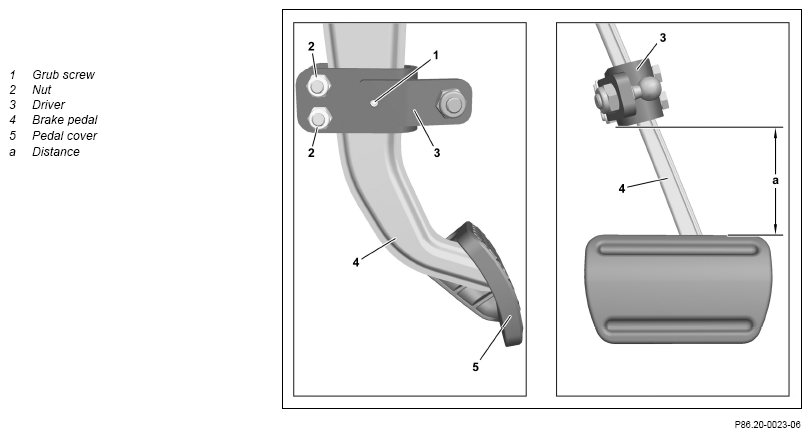

Shown on model 213
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove | |||
| 1 | Mark installation position of driver (3) at brake pedal (4) | ||
| 2 | Detach linkage of brake pedal (4) at ball head of driver (3) | ||
| 3 | Release grub screw (1) | ||
| 4 | Remove nuts (2) and remove screws | ||
| 5 | Remove driver (3) from brake pedal (4) | ||
| 6 | Remove pedal pad (5) | ||
| Install | |||
| 7 | Attach driver (3) at markings at brake pedal (4) and set distance (a) | Distance from top edge of brake pedal plate to lower edge of brake hub | *BE86.20-P-1004-01A |
| 8 | Insert screws and tighten nuts (2) alternately | *BA86.20-P-1004-04A | |
| *BA86.20-P-1005-04A | |||
| *BA86.20-P-1006-04A | |||
| 9 | Tighten grub screw (1) | ||
| 10 | Install pedal pad (5) |
DISABILITY EQUIPMENT
| Number | Designation | Model 213 | Model 257 | |
|---|---|---|---|---|
| BE86.20-P-1004-01A | Distance from top edge of brake pedal plate to lower edge of brake hub | mm | 80 | 80 |
DISABILITY EQUIPMENT
| Number | Designation | Model 213 | Model 257 | |
|---|---|---|---|---|
| BA86.20-P-1004-04A | Screw/bolt/nut, brake hub to pedal arm (Classic) | Nm | 25 | 25 |
DISABILITY EQUIPMENT
| Number | Designation | Model 213 | Model 257 | |
|---|---|---|---|---|
| BA86.20-P-1005-04A | Screw/bolt/nut, brake hub to pedal arm (Easy Speed) | Nm | 15 | 15 |
DISABILITY EQUIPMENT
| Number | Designation | Model 213 | Model 257 | |
|---|---|---|---|---|
| BA86.20-P-1006-04A | Screw/bolt/nut, brake hub to pedal arm (Multima PRO) | Nm | 20 | 20 |
