Remove/Install Accelerator Pedal Extender Holder - AR86.20-P-0004LWE
Model 213, 257
with code 45P (Disability conversion - Sales control code)
Shown on model 213
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||

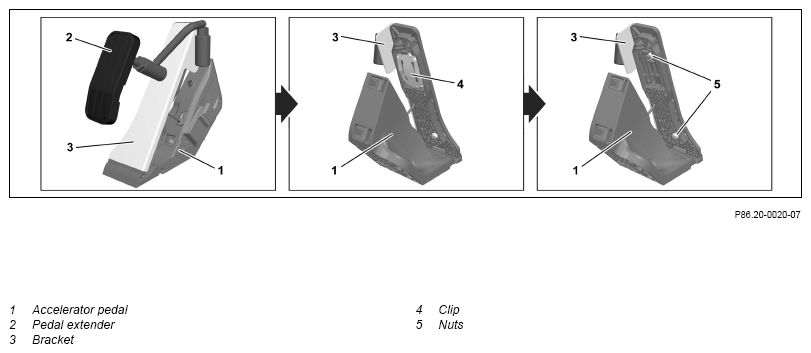

| 1 | Remove pedal extender (2) upward from bracket (3) | ||
| 2 | Unclip clip (4) at accelerator pedal (1) | ||
| 3 | Unscrew nuts (5). | *BA86.20-P-1001-04A | |
| 4 | Remove bracket (3) from accelerator pedal (1) | ||
| 5 | Install in the reverse order |
DISABILITY EQUIPMENT
| Number | Designation | Model 213 | Model 257 | |
|---|---|---|---|---|
| BA86.20-P-1001-04A | Screw/bolt/nut, pedal extender bracket to accelerator pedal | Nm | 10 | 10 |
