Electrical Function Schematic For Thermal Management - PE07.10-P-2712-97DBD

Engine 274.9 in model 213, 238 up to model year 2021

Code: Designation: Position:
1 Vehicle speed, signal 12F
1 Vehicle speed, signal 21D
1 Vehicle speed, signal 30B
10 Coolant temperature sensor, signal 7F
11 Charge air temperature sensor, signal 8D
12 Coolant thermostat heating element, actuation 4F
13 Powertrain control unit, request 14F
14 Fan motor, specified rpm request 25E
15 Circuit 87, status 7E
16 Accelerator pedal sensor, signal 19E
17 Transmission control, signal 12G
18 Engine running, signal 15H
19 Fan motor, status 23E
2 Instrument cluster, message 19F
2 Instrument cluster, message 26C
2 Instrument cluster, message 32B
20 Fan motor, request 21D
20 Fan motor, request 25B
21 Low-temperature circuit temperature sensor, signal 19G
22   28J
23 Radiator trim flap actuator motor, status 23G
24 Electric coolant pump, request 15C
25 Electric coolant pump, status 12D
3 Air conditioning, status 12F
3 Air conditioning, status 21D
3 Air conditioning, status 26B
4 Outside temperature, signal 13F
4 Outside temperature, signal 22D
4 Outside temperature, signal 28D
5 Wheel speed, signal 13F
5 Wheel speed, signal 21H
6 Engine load, signal 10D
7 Engine speed, signal 8H
8 Fuel injectors, actuation 11J
9 Throttle valve actuator motor, actuation 9J
A1 Instrument cluster 34B
B10/13 Low-temperature circuit temperature sensor 16G
B11/4 Coolant temperature sensor 4G
B17/7 Charge air temperature sensor upstream of throttle valve 9B
B17/9 Charge air temperature sensor downstream of throttle valve 9B
B28/7 Pressure sensor downstream of throttle valve 11B
B37 Accelerator pedal sensor 17D
B70 Crankshaft Hall sensor 5J
CAN B Interior CAN 31F
CAN B Interior CAN 23B
CAN C1 Drive train CAN 14H
CAN C1 Drive train CAN 16F
CAN HMI User interface CAN 31B
Code 5U3 AIRPANEL 26J
Flex E Chassis FlexRay 21J
Flex E Chassis FlexRay 23C
K40/8 Engine fuse and relay module 3A
K40/8kN Circuit 87M relay 6B
LIN C3 Drivetrain LIN 25G
LIN C3 Drivetrain LIN 24E
LIN C3 Drivetrain LIN 14D
M16/6m1 Throttle valve actuator motor 8J
M2/37 Radiator trim flap actuator motor 29J
M4/7 Fan motor 26E
M75/11 Electric coolant pump 14A
N10/6 Front SAM control unit 35E
N127 Drivetrain control unit 21E
N22/1 Climate control, control unit 18A
N3/10 ME-SFI [ME] control unit 10E
N30/4 Electronic Stability Program control unit 24J
N73 Electronic ignition switch control unit 28B
R48 Coolant thermostat heating element 3E
U1213 Valid for model 213 13J
U1213 Valid for model 213 2A
U1213 Valid for model 213 9E
U1213 Valid for model 213 20E
U1213 Valid for model 213 17A
U1213 Valid for model 213 23J
U1213 Valid for model 213 33A
U1213 Valid for model 213 27A
U1213 Valid for model 213 33D
U1238 Valid for model 238 20E
U1238 Valid for model 238 13K
U1238 Valid for model 238 2B
U1238 Valid for model 238 9E
U1238 Valid for model 238 17B
U1238 Valid for model 238 23J
U1238 Valid for model 238 33B
U1238 Valid for model 238 27B
U1238 Valid for model 238 33E
U134 Not valid for M274 (180 kW) 13A
U25 Valid for automatic transmission 13J
Y3/8n4 Fully integrated transmission control, control unit 14K
Y76/1 Cylinder 1 fuel injector 10J
Y76/2 Cylinder 2 fuel injector 10K
Y76/3 Cylinder 3 fuel injector 10K
Y76/4 Cylinder 4 fuel injector 10K

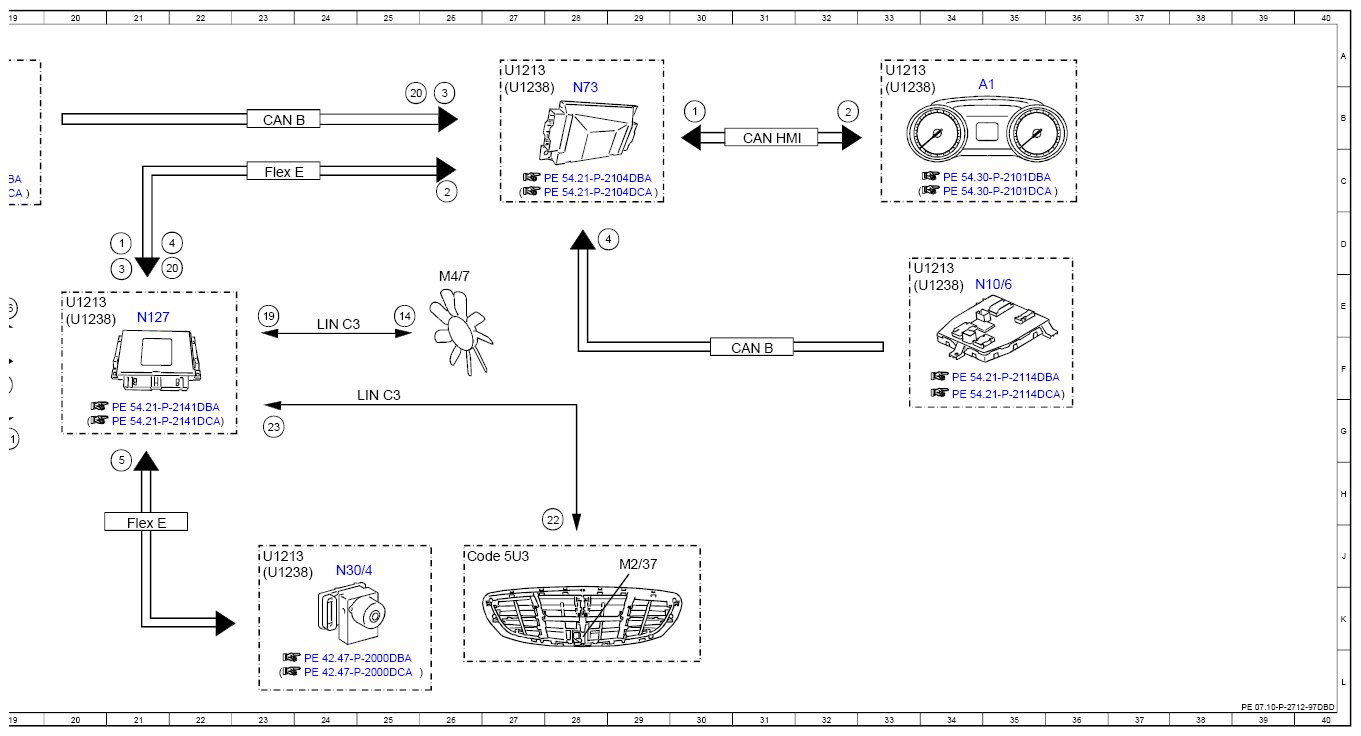

G13770497Courtesy of MERCEDES-BENZ USA

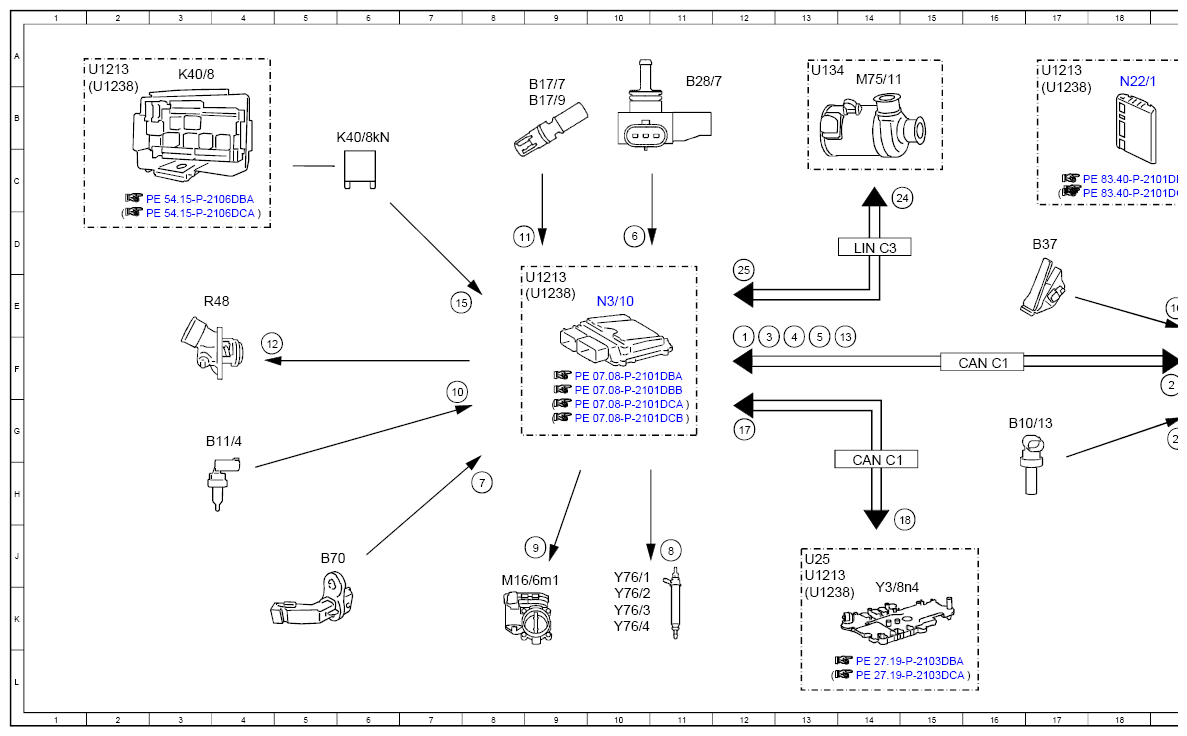

G13770498Courtesy of MERCEDES-BENZ USA
