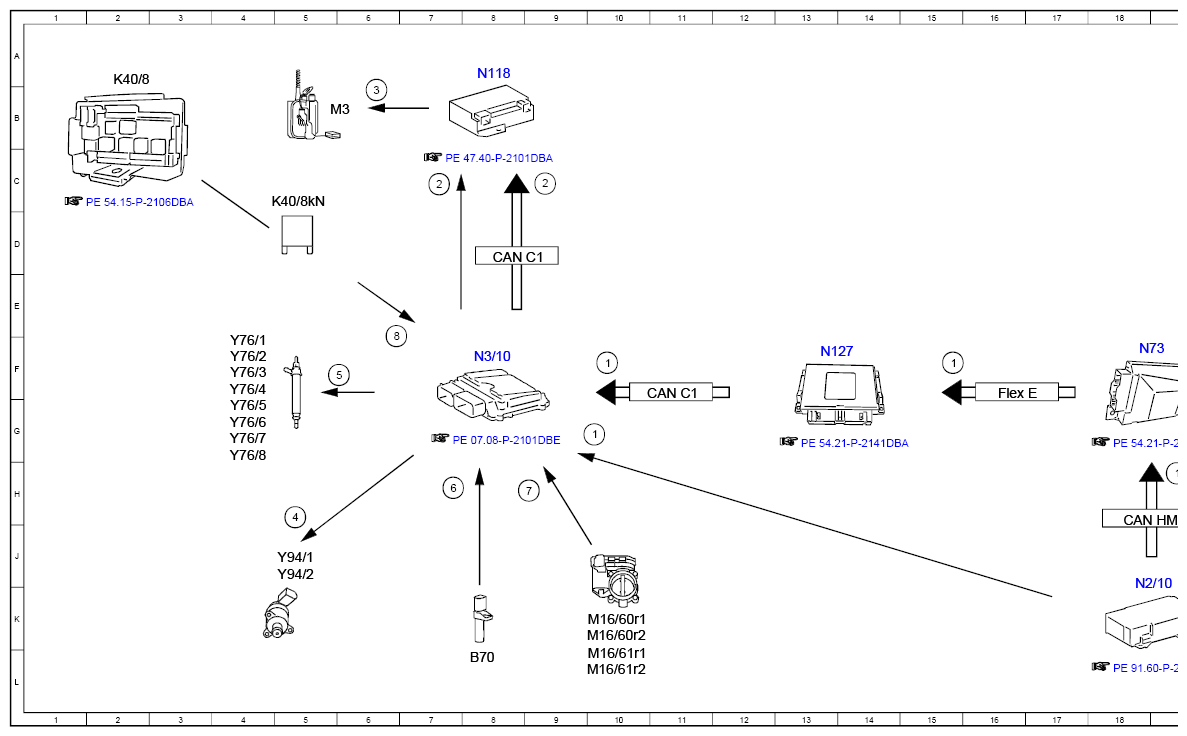

Electrical Function Schematic For Safety Fuel Shutoff - PE07.10-P-2733-97DBG
Engine 177.9 in model 213 up to model year 2021
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Crash, signal | 10F |
| 1 | Crash, signal | 15F |
| 1 | Crash, signal | 19H |
| 1 | Crash, signal | 10G |
| 2 | Fuel pump, request OFF | 9C |
| 2 | Fuel pump, request OFF | 7C |
| 3 | Fuel pump, actuation OFF | 6B |
| 4 | Quantity control valve, actuation | 5H |
| 5 | Fuel injectors, actuation | 6F |
| 6 | Engine speed, signal | 7H |
| 7 | Throttle valve position, signal | 9H |
| 8 | Circuit 87, status | 6F |
| B70 | Crankshaft Hall sensor | 8L |
| CAN C1 | Drive train CAN | 8D |
| CAN C1 | Drive train CAN | 11F |
| CAN HMI | User interface CAN | 18H |
| Flex E | Chassis FlexRay | 16F |
| K40/8 | Engine fuse and relay module | 2A |
| K40/8kN | Circuit 87M relay | 5C |
| M16/60r1 | Left actual value potentiometer 1 | 10K |
| M16/60r2 | Left actual value potentiometer 2 | 10K |
| M16/61r1 | Right actual value potentiometer 1 | 10L |
| M16/61r2 | Right actual value potentiometer 2 | 10L |
| M3 | Fuel pump (FP) | 5B |
| N118 | Fuel pump control unit | 8A |
| N127 | Drivetrain control unit | 13F |
| N2/10 | Supplemental restraint system control unit | 18K |
| N3/10 | ME-SFI [ME] control unit | 8F |
| N73 | Electronic ignition switch control unit | 18F |
| Y76/1 | Cylinder 1 fuel injector | 4F |
| Y76/2 | Cylinder 2 fuel injector | 4F |
| Y76/3 | Cylinder 3 fuel injector | 4F |
| Y76/4 | Cylinder 4 fuel injector | 4F |
| Y76/5 | Cylinder 5 fuel injector | 4G |
| Y76/6 | Cylinder 6 fuel injector | 4G |
| Y76/7 | Cylinder 7 fuel injector | 4G |
| Y76/8 | Cylinder 8 fuel injector | 4G |
| Y94/1 | Left quantity control valve | 5J |
| Y94/2 | Right quantity control valve | 5J |
