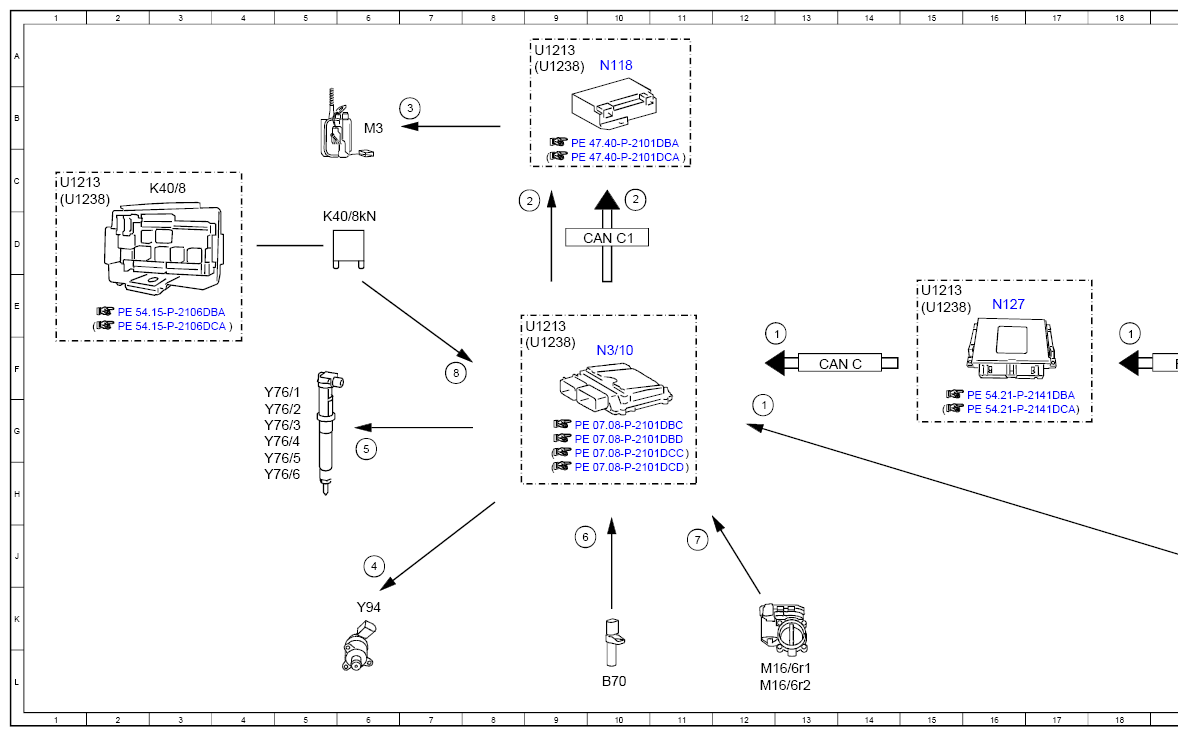

Electrical Function Schematic For Safety Fuel Shutoff - PE07.10-P-2733-97DBF
Engine 276.8 in model 213, 238 up to model year 2021
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Crash, signal | 12F |
| 1 | Crash, signal | 18F |
| 1 | Crash, signal | 22G |
| 1 | Crash, signal | 12G |
| 2 | Fuel pump, request OFF | 10C |
| 2 | Fuel pump, request OFF | 9C |
| 3 | Fuel pump, actuation OFF | 7B |
| 4 | Quantity control valve, actuation | 6J |
| 5 | Fuel injectors, actuation | 6G |
| 6 | Engine speed, signal | 9J |
| 7 | Throttle valve position, signal | 11J |
| 8 | Circuit 87, status | 7F |
| B70 | Crankshaft Hall sensor | 10L |
| CAN C | Engine CAN | 13F |
| CAN C1 | Drive train CAN | 10D |
| CAN HMI | User interface CAN | 22H |
| Flex E | Chassis FlexRay | 19F |
| K40/8 | Engine fuse and relay module | 3C |
| K40/8kN | Circuit 87M relay | 6D |
| M16/6r1 | Actual value potentiometer 1 | 12L |
| M16/6r2 | Actual value potentiometer 2 | 12L |
| M3 | Fuel pump (FP) | 6B |
| N118 | Fuel pump control unit | 10A |
| N127 | Drivetrain control unit | 16E |
| N2/10 | Supplemental restraint system control unit | 22J |
| N3/10 | ME-SFI [ME] control unit | 10F |
| N73 | Electronic ignition switch control unit | 22E |
| U1213 | Valid for model 213 | 9A |
| U1213 | Valid for model 213 | 9E |
| U1213 | Valid for model 213 | 15E |
| U1213 | Valid for model 213 | 21E |
| U1213 | Valid for model 213 | 1C |
| U1213 | Valid for model 213 | 21J |
| U1238 | Valid for model 238 | 9A |
| U1238 | Valid for model 238 | 9F |
| U1238 | Valid for model 238 | 15E |
| U1238 | Valid for model 238 | 21E |
| U1238 | Valid for model 238 | 1C |
| U1238 | Valid for model 238 | 21J |
| Y76/1 | Cylinder 1 fuel injector | 4F |
| Y76/2 | Cylinder 2 fuel injector | 4G |
| Y76/3 | Cylinder 3 fuel injector | 4G |
| Y76/4 | Cylinder 4 fuel injector | 4G |
| Y76/5 | Cylinder 5 fuel injector | 4H |
| Y76/6 | Cylinder 6 fuel injector | 4H |
| Y94 | Quantity control valve | 6K |
