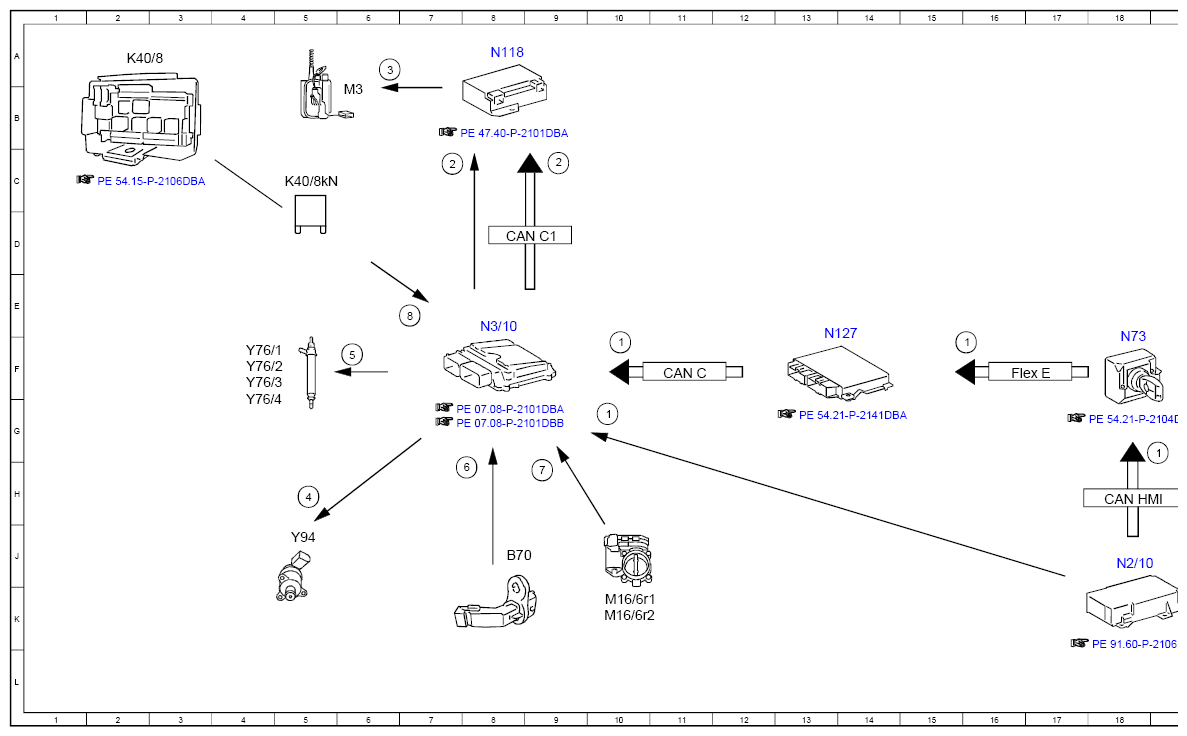

Electrical Function Schematic For Safety Fuel Shutoff - PE07.10-P-2733-97DBD
Engine 274.9 in model 213, 238 up to model year 2021
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Crash, signal | 10G |
| 1 | Crash, signal | 10F |
| 1 | Crash, signal | 19G |
| 1 | Crash, signal | 16F |
| 2 | Fuel pump, request OFF | 7C |
| 2 | Fuel pump, request OFF | 9C |
| 3 | Fuel pump, actuation OFF | 6A |
| 4 | Quantity control valve, actuation | 5H |
| 5 | Fuel injectors, actuation | 6F |
| 6 | Engine speed, signal | 8H |
| 7 | Throttle valve position, signal | 9H |
| 8 | Circuit 87, status | 7E |
| B70 | Crankshaft Hall sensor | 8J |
| CAN C | Engine CAN | 11F |
| CAN C1 | Drive train CAN | 8D |
| CAN HMI | User interface CAN | 18H |
| Flex E | Chassis FlexRay | 16F |
| K40/8 | Engine fuse and relay module | 2A |
| K40/8kN | Circuit 87M relay | 5C |
| M16/6r1 | Actual value potentiometer 1 | 10K |
| M16/6r2 | Actual value potentiometer 2 | 10K |
| M3 | Fuel pump (FP) | 6B |
| N118 | Fuel pump control unit | 8A |
| N127 | Drivetrain control unit | 13F |
| N2/10 | Supplemental restraint system control unit | 18J |
| N3/10 | ME-SFI [ME] control unit | 8E |
| N73 | Electronic ignition switch control unit | 18F |
| Y76/1 | Cylinder 1 fuel injector | 4F |
| Y76/2 | Cylinder 2 fuel injector | 4F |
| Y76/3 | Cylinder 3 fuel injector | 4F |
| Y76/4 | Cylinder 4 fuel injector | 4G |
| Y94 | Quantity control valve | 5J |
