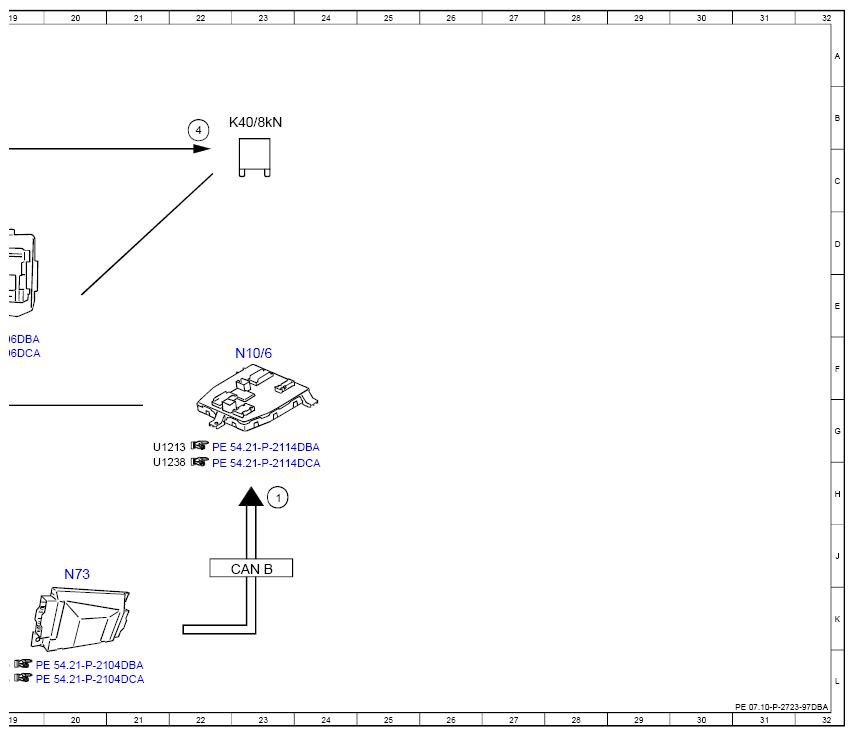

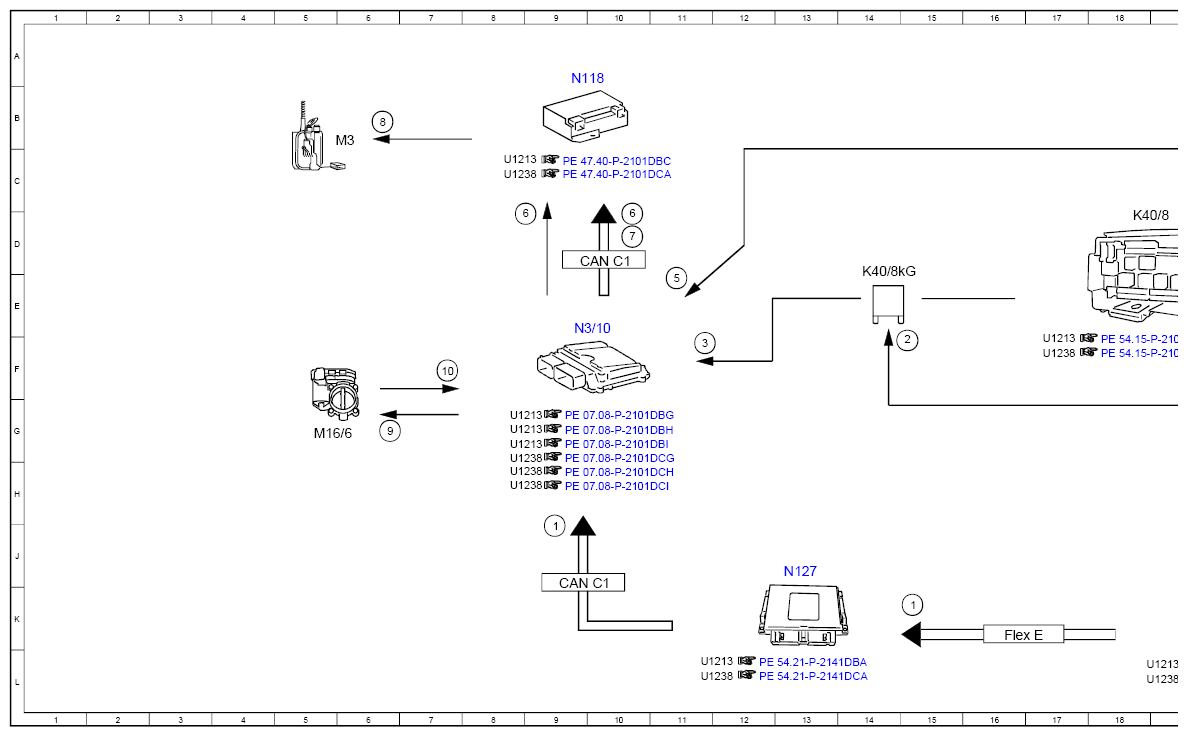

Electrical Function Schematic For Ignition - PE07.10-P-2723-97DBA
Engine 256.9 in model 213, 238 up to model year 2021
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 9J |
| 1 | Circuit 15, status | 15K |
| 1 | Circuit 15, status | 23H |
| 10 | Throttle valve actuator, signal | 7F |
| 2 | Circuit 15 relay, actuation | 15F |
| 3 | Circuit 15, status ON | 11F |
| 4 | Combustion engine circuit 87 relay, actuation | 22B |
| 5 | Circuit 87, status | 11E |
| 6 | Fuel pump, request | 10D |
| 6 | Fuel pump, request | 8D |
| 7 | Fuel pump, specified pressure request | 10D |
| 8 | Fuel pump, actuation | 6B |
| 9 | Throttle valve actuator, actuation | 6G |
| CAN B | Interior CAN | 23J |
| CAN C1 | Drive train CAN | 10D |
| CAN C1 | Drive train CAN | 9K |
| Flex E | Chassis FlexRay | 16K |
| K40/8 | Engine fuse and relay module | 18D |
| K40/8kG | Engine compartment terminal 15 relay | 14E |
| K40/8kN | Circuit 87M relay | 23B |
| M16/6 | Throttle valve actuator | 5G |
| M3 | Fuel pump (FP) | 6B |
| N10/6 | Front SAM control unit | 23F |
| N118 | Fuel pump control unit | 9A |
| N127 | Drivetrain control unit | 13J |
| N3/10 | ME-SFI [ME] control unit | 9E |
| N73 | Electronic ignition switch control unit | 20J |
