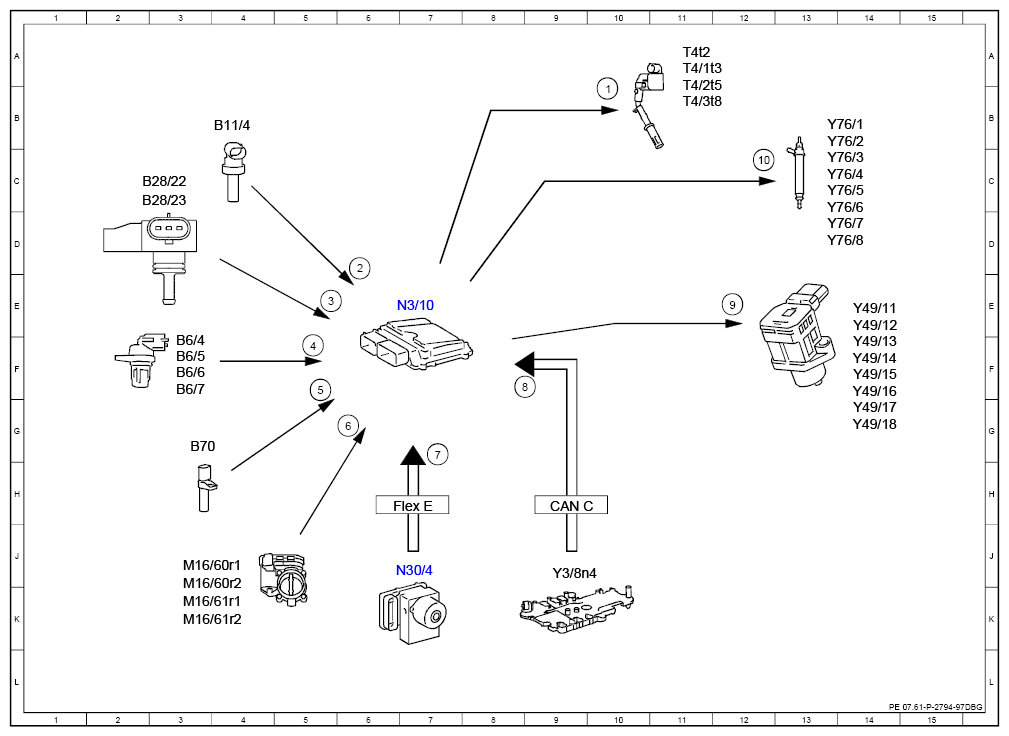

Electrical Function Schematic For Cylinder Shutoff - PE07.61-P-2794-97DBG
Engine 177.9 in model 213 up to model year 2021
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Ignition coils, actuation | 10B |
| 10 | Fuel injectors, actuation | 12C |
| 2 | Coolant temperature sensor, signal | 6D |
| 3 | Engine load, signal | 5E |
| 4 | Camshaft Hall sensor, signal | 5F |
| 5 | Engine speed, signal | 5F |
| 6 | Throttle valve position, signal | 6G |
| 7 | Wheel speed, signal | 7G |
| 8 | Gear range, status | 8F |
| 9 | CAMTRONIC actuator, actuation | 12E |
| B11/4 | Coolant temperature sensor | 4B |
| B28/22 | Left pressure sensor downstream of throttle valve | 3C |
| B28/23 | Right pressure sensor downstream of throttle valve | 3C |
| B6/4 | Left intake camshaft Hall sensor | 3F |
| B6/5 | Right intake camshaft Hall sensor | 3F |
| B6/6 | Left exhaust camshaft Hall sensor | 3F |
| B6/7 | Right exhaust camshaft Hall sensor | 3F |
| B70 | Crankshaft Hall sensor | 3G |
| CAN C | Engine CAN | 9H |
| Flex E | Chassis FlexRay | 7H |
| M16/60r1 | Left actual value potentiometer 1 | 3J |
| M16/60r2 | Left actual value potentiometer 2 | 3K |
| M16/61r1 | Right actual value potentiometer 1 | 3K |
| M16/61r2 | Right actual value potentiometer 2 | 3K |
| N3/10 | ME-SFI [ME] control unit | 7E |
| N30/4 | Electronic Stability Program control unit | 7J |
| T4/1t3 | Cylinder 3 ignition coil | 11A |
| T4/2t5 | Cylinder 5 ignition coil | 11B |
| T4/3t8 | Cylinder 8 ignition coil | 11B |
| T4t2 | Cylinder 2 ignition coil | 11A |
| Y3/8n4 | Fully integrated transmission control, control unit | 9J |
| Y49/11 | Cylinder 2 intake CAMTRONIC actuator | 14E |
| Y49/12 | Cylinder 2 exhaust CAMTRONIC actuator | 14E |
| Y49/13 | Cylinder 3 intake CAMTRONIC actuator | 14F |
| Y49/14 | Cylinder 3 exhaust CAMTRONIC actuator | 14F |
| Y49/15 | Cylinder 5 intake CAMTRONIC actuator | 14F |
| Y49/16 | Cylinder 5 exhaust CAMTRONIC actuator | 14F |
| Y49/17 | Cylinder 8 intake CAMTRONIC actuator | 14G |
| Y49/18 | Cylinder 8 exhaust CAMTRONIC actuator | 14G |
| Y76/1 | Cylinder 1 fuel injector | 13B |
| Y76/2 | Cylinder 2 fuel injector | 13B |
| Y76/3 | Cylinder 3 fuel injector | 13C |
| Y76/4 | Cylinder 4 fuel injector | 13C |
| Y76/5 | Cylinder 5 fuel injector | 13C |
| Y76/6 | Cylinder 6 fuel injector | 13C |
| Y76/7 | Cylinder 7 fuel injector | 13D |
| Y76/8 | Cylinder 8 fuel injector | 13D |
