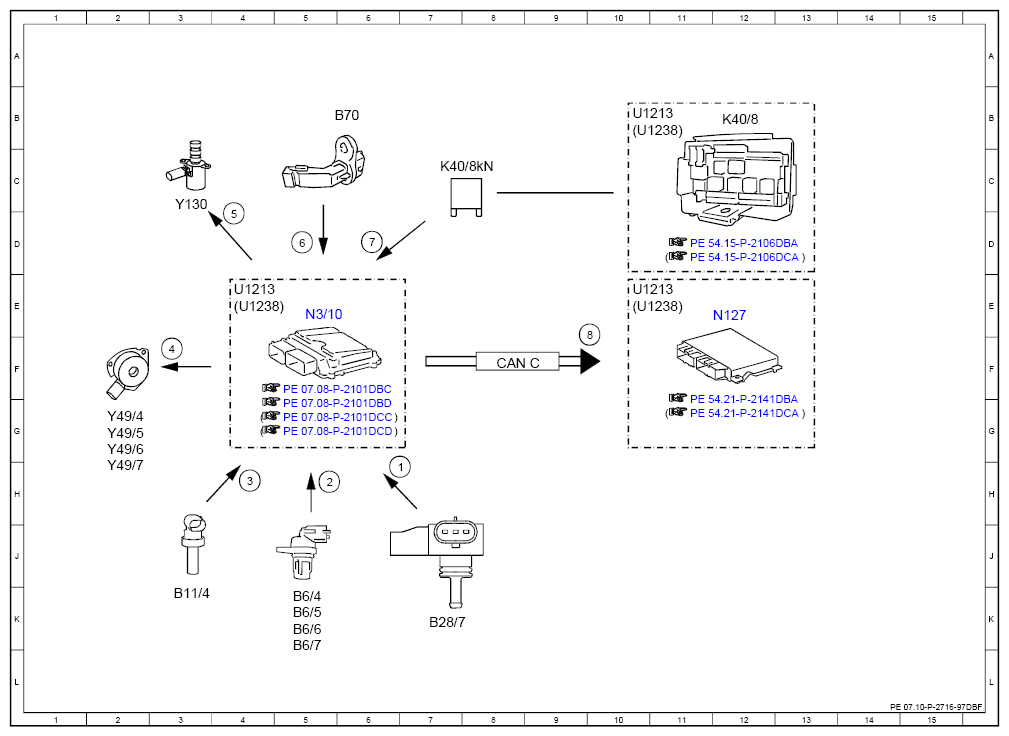

Electrical Function Schematic For Camshaft Adjustment - PE07.10-P-2716-97DBF

Engine 276.8 in model 213, 238 up to model year 2021

Code: Designation: Position:
1 Engine load, signal 6H
2 Camshaft Hall sensor, signal 5H
3 Coolant temperature sensor, signal 4H
4 Camshaft solenoids, actuation 3F
5 Engine oil pump valve, actuation 4D
6 Engine speed, signal 5D
7 Circuit 87, status 6D
8 Engine running, signal 10F
B11/4 Coolant temperature sensor 3K
B28/7 Pressure sensor downstream of throttle valve 7K
B6/4 Left intake camshaft Hall sensor 5K
B6/5 Right intake camshaft Hall sensor 5K
B6/6 Left exhaust camshaft Hall sensor 5K
B6/7 Right exhaust camshaft Hall sensor 5L
B70 Crankshaft Hall sensor 5B
CAN C Engine CAN 8F
K40/8 Engine fuse and relay module 12B
K40/8kN Circuit 87M relay 7C
N127 Drivetrain control unit 12E
N3/10 ME-SFI [ME] control unit 5E
U1213 Valid for model 213 10B
U1213 Valid for model 213 4E
U1213 Valid for model 213 10E
U1238 Valid for model 238 10B
U1238 Valid for model 238 4E
U1238 Valid for model 238 10E
Y130 Engine oil pump valve 3C
Y49/4 Left intake camshaft solenoid 2G
Y49/5 Right intake camshaft solenoid 2G
Y49/6 Left exhaust camshaft solenoid 2G
Y49/7 Right exhaust camshaft solenoid 2H
G13770527Courtesy of MERCEDES-BENZ USA
