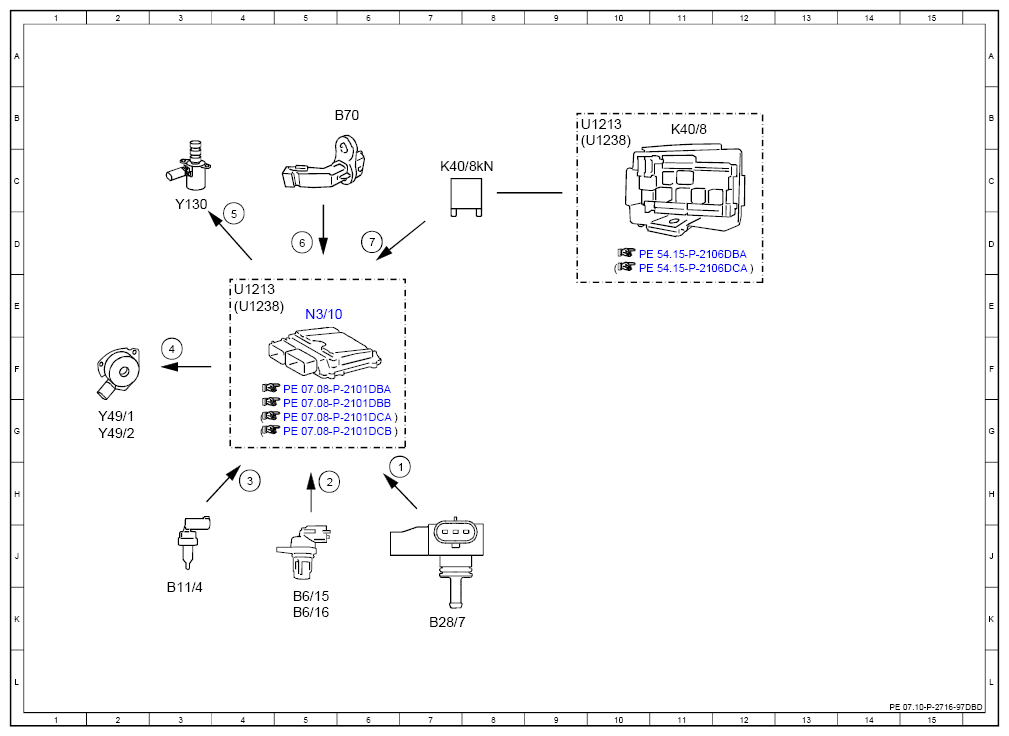

Electrical Function Schematic For Camshaft Adjustment - PE07.10-P-2716-97DBD

Engine 274.9 in model 213, 238 up to model year 2021

Code: Designation: Position:
1 Engine load, signal 6H
2 Camshaft Hall sensor, signal 5H
3 Coolant temperature sensor, signal 4H
4 Camshaft solenoids, actuation 3F
5 Engine oil pump valve, actuation 4D
6 Engine speed, signal 5D
7 Circuit 87, status 6D
B11/4 Coolant temperature sensor 3K
B28/7 Pressure sensor downstream of throttle valve 7K
B6/15 Intake camshaft Hall sensor 5K
B6/16 Exhaust camshaft Hall sensor 5K
B70 Crankshaft Hall sensor 5B
K40/8 Engine fuse and relay module 11B
K40/8kN Circuit 87M relay 7C
N3/10 ME-SFI [ME] control unit 5E
U1213 Valid for model 213 9B
U1213 Valid for model 213 4E
U1238 Valid for model 238 9B
U1238 Valid for model 238 4E
Y130 Engine oil pump valve 3C
Y49/1 Intake camshaft solenoid 2G
Y49/2 Exhaust camshaft solenoid 2G
G13770526Courtesy of MERCEDES-BENZ USA
