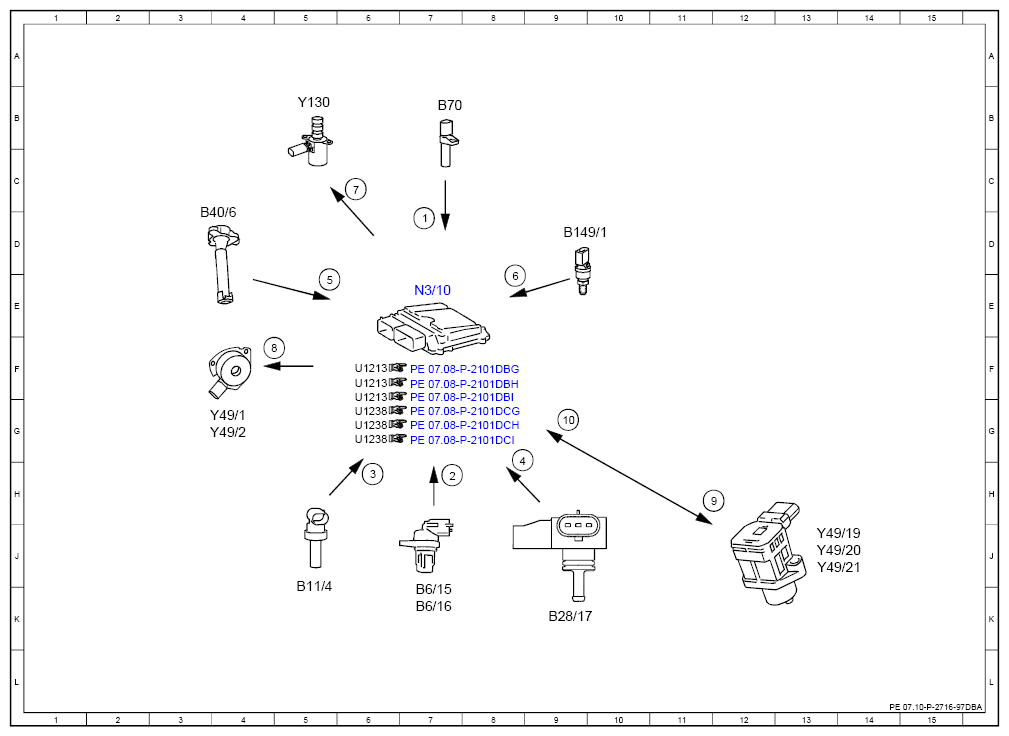

Electrical Function Schematic For Camshaft Adjustment - PE07.10-P-2716-97DBA
Engine 256.9 in model 213, 238 up to model year 2021
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Crankshaft Hall sensor, signal | 7D |
| 10 | Intake camshaft valve lift switching Hall sensor, signal | 9G |
| 2 | Camshaft Hall sensor, signal | 7H |
| 3 | Coolant temperature sensor, signal | 6H |
| 4 | Pressure and temperature sensor downstream of throttle valve, signal | 9G |
| 5 | Engine oil fill level sensor, signal | 6E |
| 6 | Engine oil pressure and temperature sensor, signal | 9E |
| 7 | Engine oil pump valve, actuation | 6C |
| 8 | Camshaft solenoids, actuation | 4F |
| 9 | CAMTRONIC actuator, actuation | 11H |
| B11/4 | Coolant temperature sensor | 5K |
| B149/1 | Engine oil pressure and temperature sensor | 9D |
| B28/17 | Pressure and temperature sensor downstream of exhaust gas turbocharger | 9K |
| B40/6 | Engine oil fill level sensor | 3D |
| B6/15 | Intake camshaft Hall sensor | 7K |
| B6/16 | Exhaust camshaft Hall sensor | 7K |
| B70 | Crankshaft Hall sensor | 7B |
| N3/10 | ME-SFI [ME] control unit | 7E |
| Y130 | Engine oil pump valve | 5B |
| Y49/1 | Intake camshaft solenoid | 3G |
| Y49/19 | Cylinder 1 and 2 intake CAMTRONIC actuator | 13J |
| Y49/2 | Exhaust camshaft solenoid | 3G |
| Y49/20 | Cylinder 3 and 4 intake CAMTRONIC actuator | 13J |
| Y49/21 | Cylinder 5 and 6 intake CAMTRONIC actuator | 13J |
