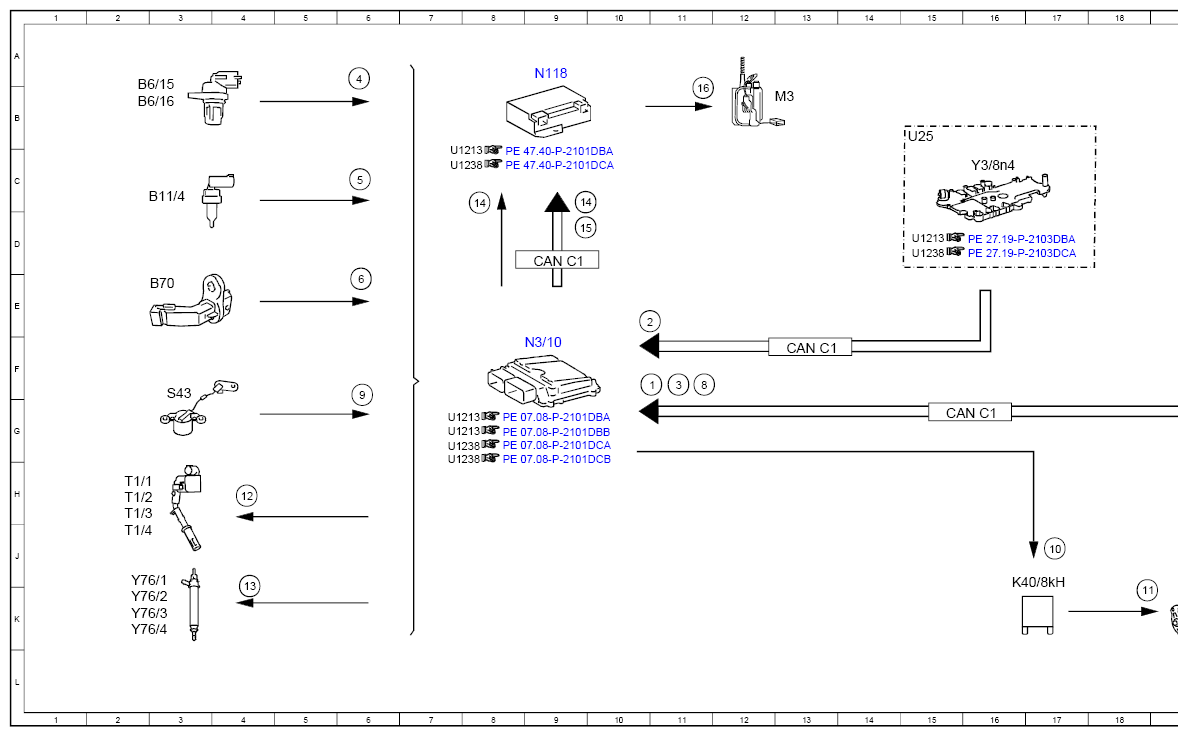

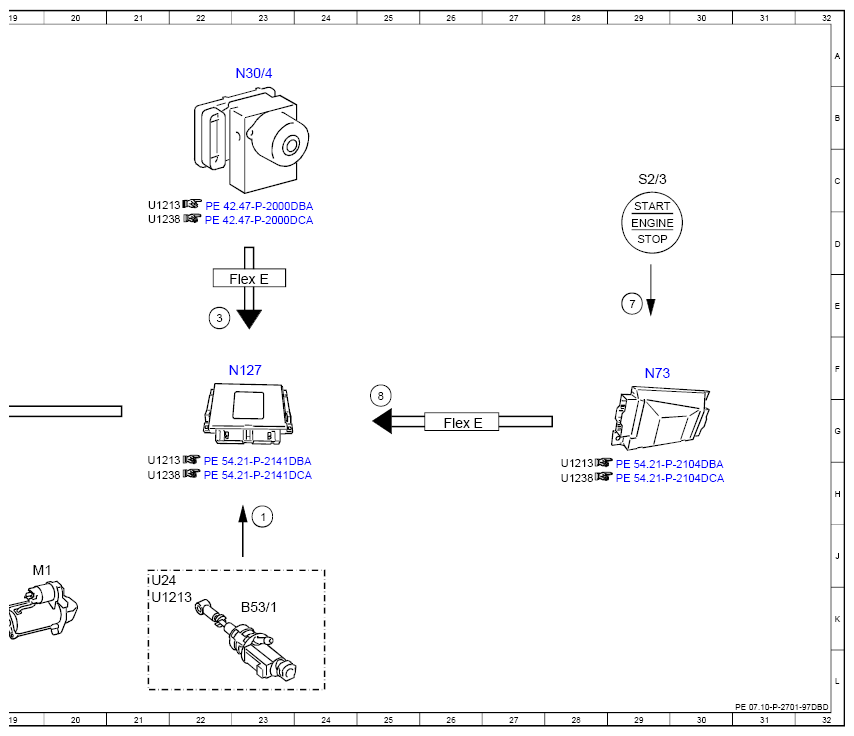

Electrical Function Schematic For Starting - PE07.10-P-2701-97DBD
Engine 274.9 in model 213 (except 213.050/053/054/153), 238 up to model year 2021
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Clutch pedal sensor, signal | 11F |
| 1 | Clutch pedal sensor, signal | 23H |
| 10 | Starter circuit 50 relay, actuation | 17J |
| 11 | Starter, actuation | 18K |
| 12 | Ignition coils, actuation | 4H |
| 13 | Fuel injectors, actuation | 4K |
| 14 | Fuel pump, request ON | 8C |
| 14 | Fuel pump, request ON | 9C |
| 15 | Fuel pump, specified pressure request | 9D |
| 16 | Fuel pump, actuation | 11B |
| 2 | Gear range, status | 10E |
| 3 | Service brake, status | 11F |
| 3 | Service brake, status | 22E |
| 4 | Camshaft Hall sensor, signal | 6A |
| 5 | Coolant temperature sensor, signal | 6C |
| 6 | Engine speed, signal | 6E |
| 7 | KEYLESS-GO start/stop button, status | 29E |
| 8 | Circuit 50, status | 11F |
| 8 | Circuit 50, status | 25G |
| 9 | Oil sensor (oil level, temperature and quality), signal | 6F |
| B11/4 | Coolant temperature sensor | 3C |
| B53/1 | Clutch pedal sensor | 23K |
| B6/15 | Intake camshaft Hall sensor | 2B |
| B6/16 | Exhaust camshaft Hall sensor | 2B |
| B70 | Crankshaft Hall sensor | 3E |
| CAN C1 | Drive train CAN | 9D |
| CAN C1 | Drive train CAN | 15G |
| CAN C1 | Drive train CAN | 13F |
| Flex E | Chassis FlexRay | 26G |
| Flex E | Chassis FlexRay | 23E |
| K40/8kH | Starter circuit 50 relay | 17J |
| M1 | Starter | 19J |
| M3 | Fuel pump (FP) | 13B |
| N118 | Fuel pump control unit | 9A |
| N127 | Drivetrain control unit | 23F |
| N3/10 | ME-SFI [ME] control unit | 9F |
| N30/4 | Electronic Stability Program control unit | 23A |
| N73 | Electronic ignition switch control unit | 29F |
| S2/3 | KEYLESS GO start/stop button | 29C |
| S43 | Oil level check switch | 3F |
| T1/1 | Cylinder 1 ignition coil | 2H |
| T1/2 | Cylinder 2 ignition coil | 2H |
| T1/3 | Cylinder 3 ignition coil | 2H |
| T1/4 | Cylinder 4 ignition coil | 2J |
| U1213 | Valid for model 213 | 21K |
| U24 | Valid for manual transmission | 21J |
| U25 | Valid for automatic transmission | 15B |
| Y3/8n4 | Fully integrated transmission control, control unit | 16C |
| Y76/1 | Cylinder 1 fuel injector | 2J |
| Y76/2 | Cylinder 2 fuel injector | 2K |
| Y76/3 | Cylinder 3 fuel injector | 2K |
| Y76/4 | Cylinder 4 fuel injector | 2K |
