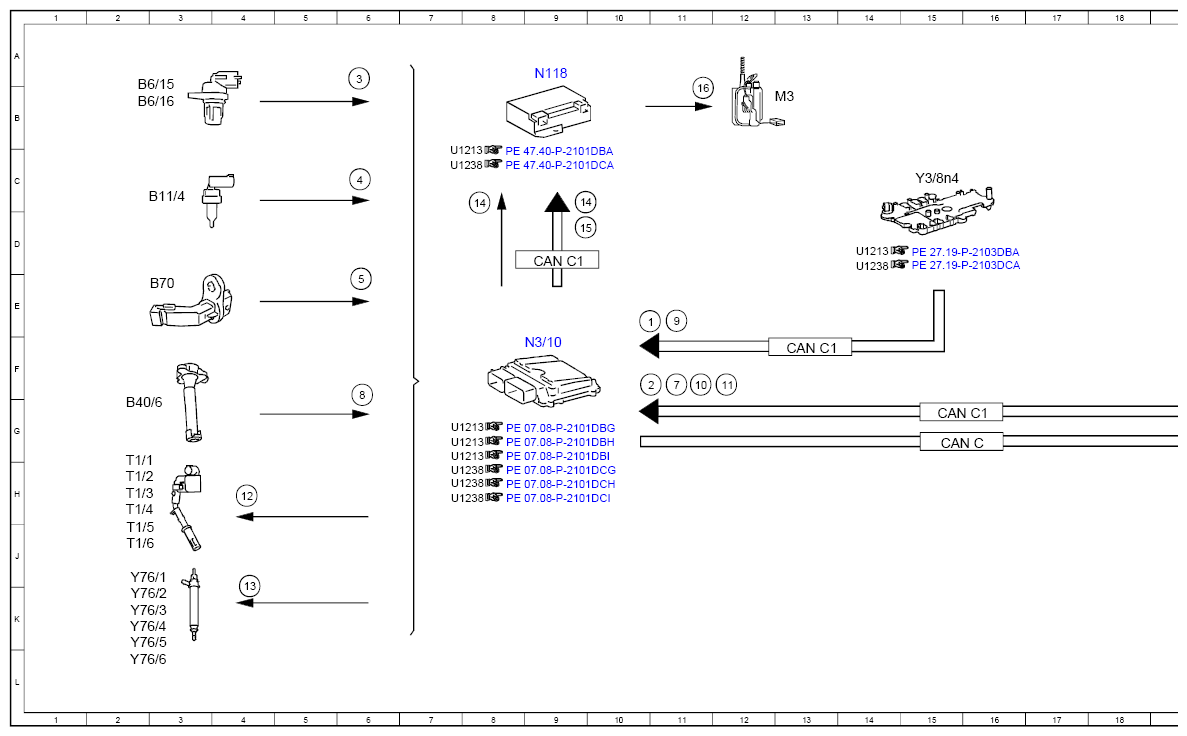

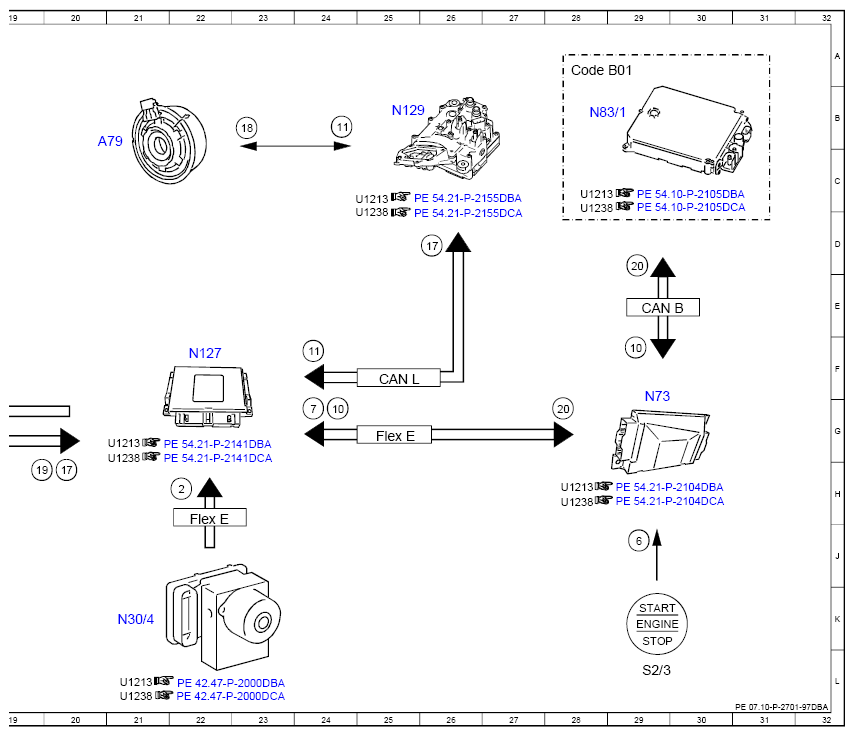

Electrical Function Schematic For Starting - PE07.10-P-2701-97DBA
Engine 256.9 in model 213, 238 up to model year 2021
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Gear range, status | 10E |
| 10 | 48 V on-board electrical system battery, status | 11F |
| 10 | 48 V on-board electrical system battery, status | 24F |
| 10 | 48 V on-board electrical system battery, status | 29F |
| 11 | Starter-alternator, status | 24B |
| 11 | Starter-alternator, status | 24F |
| 11 | Starter-alternator, status | 24F |
| 12 | Ignition coils, actuation | 4H |
| 13 | Fuel injectors, actuation | 4K |
| 14 | Fuel pump, request ON | 8C |
| 14 | Fuel pump, request ON | 9C |
| 15 | Fuel pump, specified pressure request | 9D |
| 16 | Fuel pump, actuation | 11B |
| 17 | Starter-alternator, request | 26D |
| 17 | Starter-alternator, request | 20H |
| 18 | Starter generator, actuation | 23B |
| 19 | Engine speed, signal | 19H |
| 2 | Service brake, status | 10F |
| 2 | Service brake, status | 22H |
| 20 | Engine running, signal | 29D |
| 20 | Engine running, signal | 28G |
| 3 | Camshaft Hall sensor, signal | 6A |
| 4 | Coolant temperature sensor, signal | 6C |
| 5 | Crankshaft Hall sensor, signal | 6E |
| 6 | KEYLESS-GO start/stop button, status | 29J |
| 7 | Circuit 50, status | 11F |
| 7 | Circuit 50, status | 24G |
| 8 | Engine oil fill level sensor, signal | 6G |
| 9 | Transmission oil temperature, signal | 11E |
| A79 | Integrated starter generator | 20B |
| B11/4 | Coolant temperature sensor | 3C |
| B40/6 | Engine oil fill level sensor | 2G |
| B6/15 | Intake camshaft Hall sensor | 2B |
| B6/16 | Exhaust camshaft Hall sensor | 2B |
| B70 | Crankshaft Hall sensor | 3E |
| CAN B | Interior CAN | 29E |
| CAN C | Engine CAN | 15G |
| CAN C1 | Drive train CAN | 9D |
| CAN C1 | Drive train CAN | 15G |
| CAN C1 | Drive train CAN | 13F |
| CAN L | Hybrid CAN | 25F |
| Code B01 | 48V technology | 28A |
| Flex E | Chassis FlexRay | 25G |
| Flex E | Chassis FlexRay | 22H |
| M3 | Fuel pump (FP) | 13B |
| N118 | Fuel pump control unit | 9A |
| N127 | Drivetrain control unit | 22F |
| N129 | Starter generator control unit | 25B |
| N3/10 | ME-SFI [ME] control unit | 9F |
| N30/4 | Electronic Stability Program control unit | 21K |
| N73 | Electronic ignition switch control unit | 29G |
| N83/1 | DC/DC converter control unit | 28B |
| S2/3 | KEYLESS GO start/stop button | 29L |
| T1/1 | Cylinder 1 ignition coil | 2H |
| T1/2 | Cylinder 2 ignition coil | 2H |
| T1/3 | Cylinder 3 ignition coil | 2H |
| T1/4 | Cylinder 4 ignition coil | 2H |
| T1/5 | Cylinder 5 ignition coil | 2J |
| T1/6 | Cylinder 6 ignition coil | 2J |
| Y3/8n4 | Fully integrated transmission control, control unit | 15C |
| Y76/1 | Cylinder 1 fuel injector | 2J |
| Y76/2 | Cylinder 2 fuel injector | 2K |
| Y76/3 | Cylinder 3 fuel injector | 2K |
| Y76/4 | Cylinder 4 fuel injector | 2K |
| Y76/5 | Cylinder 5 fuel injector | 2K |
| Y76/6 | Cylinder 6 fuel injector | 2L |
