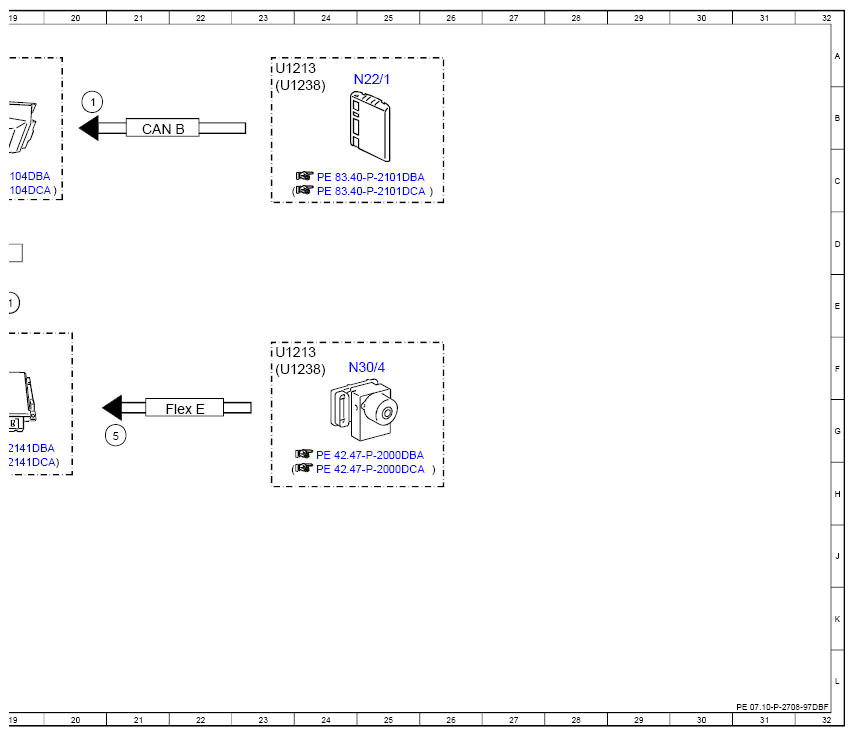

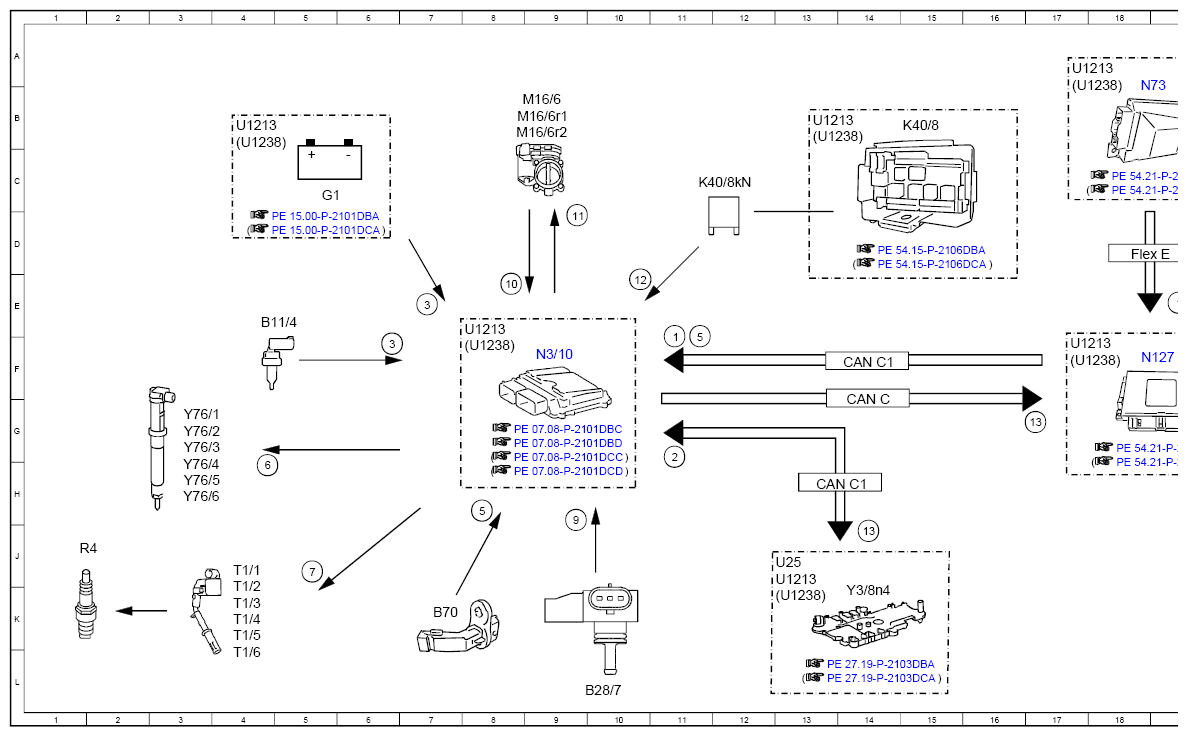

Electrical Function Schematic For RPM Control - PE07.10-P-2708-97DBF
Engine 276.8 in model 213, 238 up to model year 2021
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Air conditioning, status | 11F |
| 1 | Air conditioning, status | 19E |
| 1 | Air conditioning, status | 20B |
| 10 | Throttle valve position, signal | 8E |
| 11 | Throttle valve actuator motor, actuation | 9D |
| 12 | Circuit 87, status | 10E |
| 13 | Engine running, signal | 17G |
| 13 | Engine running, signal | 14J |
| 2 | Gear range, status | 11G |
| 3 | Circuit 30, status | 6F |
| 5 | Engine speed, signal | 8H |
| 6 | Fuel injectors, actuation | 4H |
| 7 | Ignition coils, actuation | 5J |
| 9 | Engine load, signal | 9H |
| B11/4 | Coolant temperature sensor | 4E |
| B28/7 | Pressure sensor downstream of throttle valve | 10L |
| B70 | Crankshaft Hall sensor | 7K |
| CAN B | Interior CAN | 21B |
| CAN C | Engine CAN | 14G |
| CAN C1 | Drive train CAN | 13H |
| CAN C1 | Drive train CAN | 14F |
| Flex E | Chassis FlexRay | 22G |
| Flex E | Chassis FlexRay | 18D |
| G1 | On-board electrical system battery | 5C |
| K40/8 | Engine fuse and relay module | 15B |
| K40/8kN | Circuit 87M relay | 12C |
| M16/6 | Throttle valve actuator | 9B |
| M16/6r1 | Actual value potentiometer 1 | 9B |
| M16/6r2 | Actual value potentiometer 2 | 9B |
| N127 | Drivetrain control unit | 19F |
| N22/1 | Climate control, control unit | 25A |
| N3/10 | ME-SFI [ME] control unit | 9F |
| N30/4 | Electronic Stability Program control unit | 25F |
| N73 | Electronic ignition switch control unit | 18B |
| R4 | Spark plugs | 1J |
| T1/1 | Cylinder 1 ignition coil | 4J |
| T1/2 | Cylinder 2 ignition coil | 4K |
| T1/3 | Cylinder 3 ignition coil | 4K |
| T1/4 | Cylinder 4 ignition coil | 4K |
| T1/5 | Cylinder 5 ignition coil | 4K |
| T1/6 | Cylinder 6 ignition coil | 4L |
| U1213 | Valid for model 213 | 13J |
| U1213 | Valid for model 213 | 8E |
| U1213 | Valid for model 213 | 13B |
| U1213 | Valid for model 213 | 17F |
| U1213 | Valid for model 213 | 17A |
| U1213 | Valid for model 213 | 23F |
| U1213 | Valid for model 213 | 4B |
| U1213 | Valid for model 213 | 23A |
| U1238 | Valid for model 238 | 13K |
| U1238 | Valid for model 238 | 8F |
| U1238 | Valid for model 238 | 13B |
| U1238 | Valid for model 238 | 17F |
| U1238 | Valid for model 238 | 17B |
| U1238 | Valid for model 238 | 23F |
| U1238 | Valid for model 238 | 4B |
| U1238 | Valid for model 238 | 23B |
| U25 | Valid for automatic transmission | 13J |
| Y3/8n4 | Fully integrated transmission control, control unit | 14K |
| Y76/1 | Cylinder 1 fuel injector | 3G |
| Y76/2 | Cylinder 2 fuel injector | 3G |
| Y76/3 | Cylinder 3 fuel injector | 3G |
| Y76/4 | Cylinder 4 fuel injector | 3H |
| Y76/5 | Cylinder 5 fuel injector | 3H |
| Y76/6 | Cylinder 6 fuel injector | 3H |
