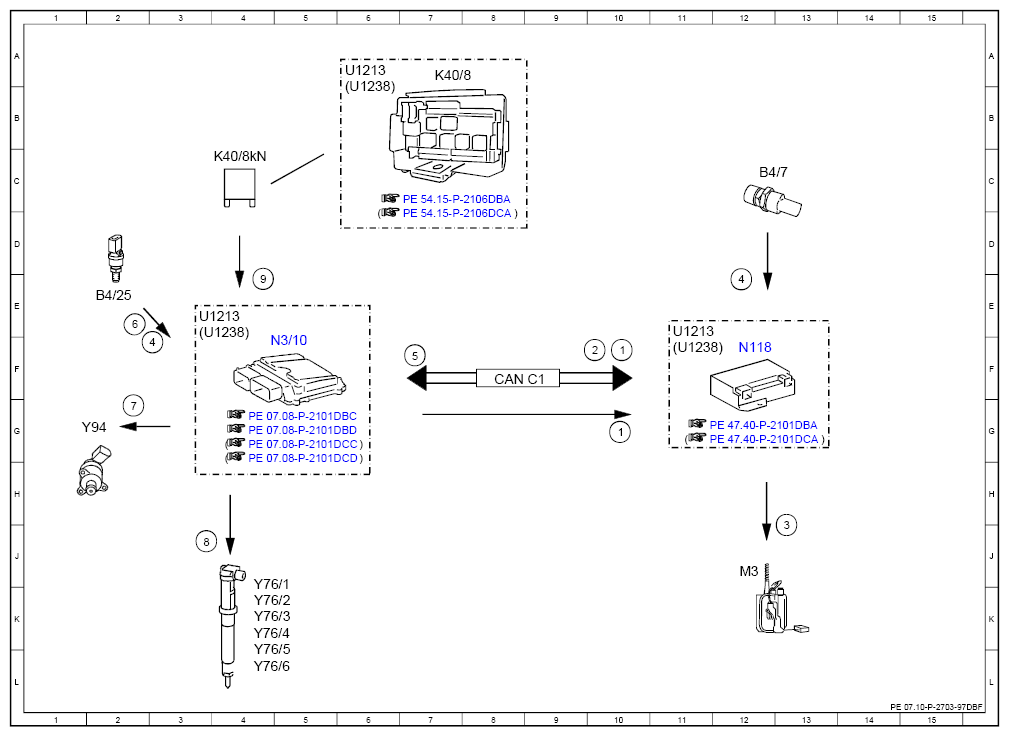

Electrical Function Schematic For Fuel Supply - PE07.10-P-2703-97DBF
Engine 276.8 in model 213, 238 up to model year 2021
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Fuel pump, request ON | 10F |
| 1 | Fuel pump, request ON | 10G |
| 2 | Fuel pump, specified pressure request | 10F |
| 3 | Fuel pump, actuation | 13J |
| 4 | Fuel pressure, signal | 3F |
| 4 | Fuel pressure, signal | 12E |
| 5 | Fuel pressure, status | 7F |
| 6 | Fuel temperature, signal | 2E |
| 7 | Quantity control valve, actuation | 2G |
| 8 | Fuel injectors, actuation | 3J |
| 9 | Circuit 87, status | 4E |
| B4/25 | Fuel pressure and temperature sensor | 2E |
| B4/7 | Fuel pressure sensor | 12C |
| CAN C1 | Drive train CAN | 8F |
| K40/8 | Engine fuse and relay module | 7A |
| K40/8kN | Circuit 87M relay | 4C |
| M3 | Fuel pump (FP) | 12J |
| N118 | Fuel pump control unit | 12F |
| N3/10 | ME-SFI [ME] control unit | 5F |
| U1213 | Valid for model 213 | 3E |
| U1213 | Valid for model 213 | 6A |
| U1213 | Valid for model 213 | 11E |
| U1238 | Valid for model 238 | 3F |
| U1238 | Valid for model 238 | 6B |
| U1238 | Valid for model 238 | 11F |
| Y76/1 | Cylinder 1 fuel injector | 4K |
| Y76/2 | Cylinder 2 fuel injector | 4K |
| Y76/3 | Cylinder 3 fuel injector | 4K |
| Y76/4 | Cylinder 4 fuel injector | 4K |
| Y76/5 | Cylinder 5 fuel injector | 4L |
| Y76/6 | Cylinder 6 fuel injector | 4L |
| Y94 | Quantity control valve | 1G |
