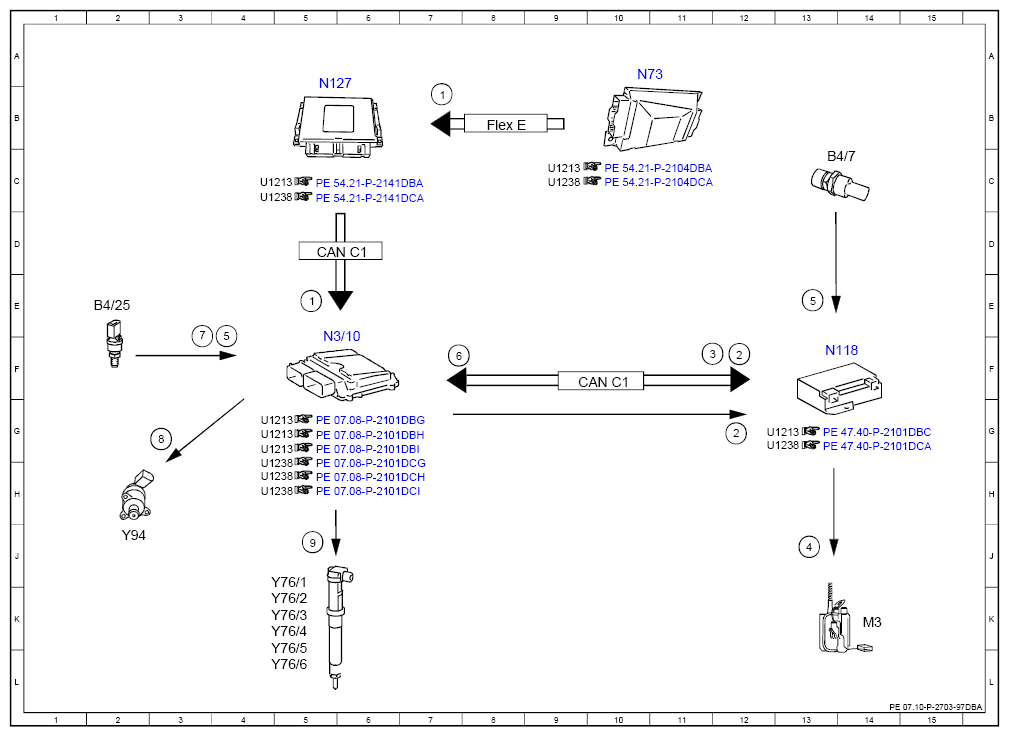

Electrical Function Schematic For Fuel Supply - PE07.10-P-2703-97DBA
Engine 256.9 in model 213, 238 up to model year 2021
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 7B |
| 1 | Circuit 15, status | 5E |
| 2 | Fuel pump, request ON | 12F |
| 2 | Fuel pump, request ON | 12G |
| 3 | Fuel pump, specified pressure request | 11F |
| 4 | Fuel pump, actuation | 13J |
| 5 | Fuel pressure sensor, signal | 4F |
| 5 | Fuel pressure sensor, signal | 13E |
| 6 | Fuel pressure, status | 7F |
| 7 | Fuel temperature, signal | 3F |
| 8 | Quantity control valve, actuation | 3G |
| 9 | Fuel injectors, actuation | 5J |
| B4/25 | Fuel pressure and temperature sensor | 2E |
| B4/7 | Fuel pressure sensor | 13C |
| CAN C1 | Drive train CAN | 10F |
| CAN C1 | Drive train CAN | 5D |
| Flex E | Chassis FlexRay | 8B |
| M3 | Fuel pump (FP) | 14K |
| N118 | Fuel pump control unit | 13F |
| N127 | Drivetrain control unit | 5B |
| N3/10 | ME-SFI [ME] control unit | 5F |
| N73 | Electronic ignition switch control unit | 10A |
| Y76/1 | Cylinder 1 fuel injector | 4J |
| Y76/2 | Cylinder 2 fuel injector | 4K |
| Y76/3 | Cylinder 3 fuel injector | 4K |
| Y76/4 | Cylinder 4 fuel injector | 4K |
| Y76/5 | Cylinder 5 fuel injector | 4L |
| Y76/6 | Cylinder 6 fuel injector | 4L |
| Y94 | Quantity control valve | 2J |
