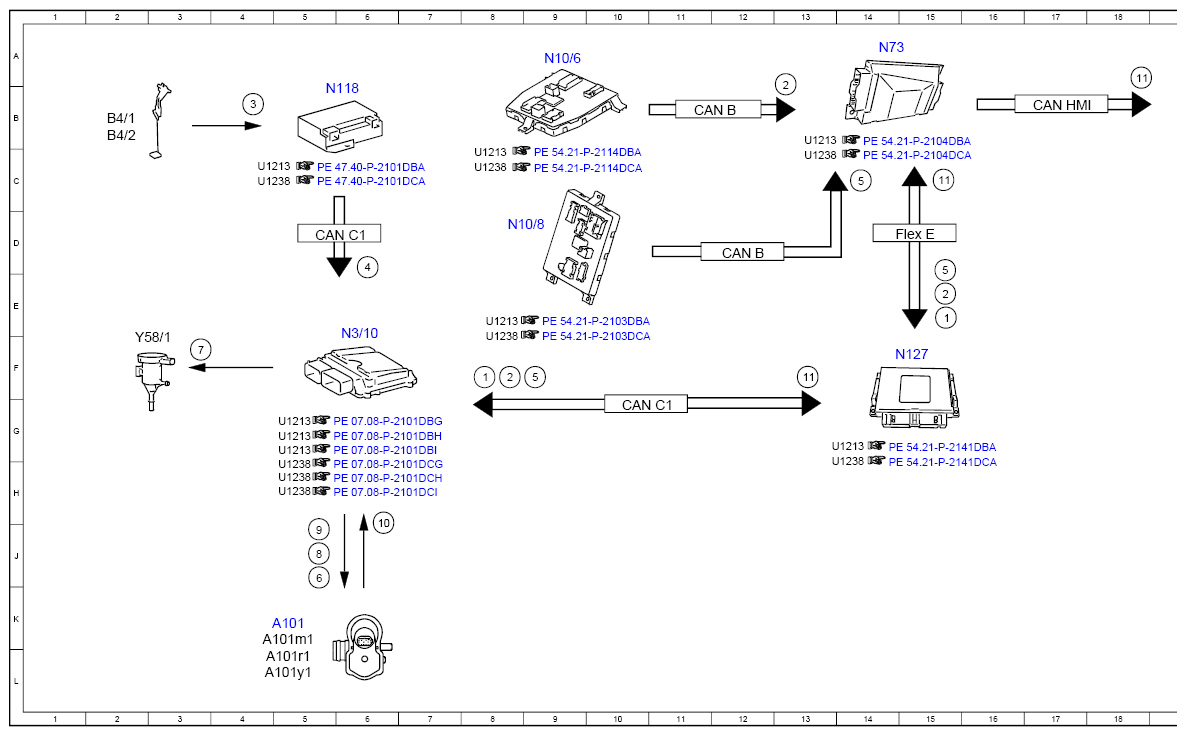

Electrical Function Schematic For Purge System With Leak Test - PE47.30-P-2053-97DBA
Engine 256.9 in model 213, 238 up to model year 2021
with code 494 (US version)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 8F |
| 1 | Circuit 15, status | 15E |
| 10 | Fuel tank diagnostic module, status | 6J |
| 11 | Indicator lamp, request | 15C |
| 11 | Indicator lamp, request | 18B |
| 11 | Indicator lamp, request | 13F |
| 2 | Outside temperature, signal | 13B |
| 2 | Outside temperature, signal | 8F |
| 2 | Outside temperature, signal | 15E |
| 3 | Fuel tank fuel level indicator fill level sensor, signal | 4B |
| 4 | Fuel level, signal | 6D |
| 5 | Fuel filler flap open, status | 9F |
| 5 | Fuel filler flap open, status | 14C |
| 5 | Fuel filler flap open, status | 15E |
| 6 | Fuel tank diagnostic module heating element, actuation | 5J |
| 7 | Purging switchover valve, actuation | 3F |
| 8 | Fuel tank diagnostic module pump, actuation | 5J |
| 9 | Fuel tank diagnostic module solenoid valve, actuation | 5J |
| A1 | Instrument cluster | 20A |
| A101 | Fuel tank diagnostic module | 5K |
| A101m1 | Fuel tank diagnostic module pump | 5K |
| A101r1 | Fuel tank diagnostic module heating element | 5L |
| A101y1 | Fuel tank diagnostic module solenoid valve | 5L |
| B4/1 | Fuel tank fuel level indicator fill level sensor, left | 2B |
| B4/2 | Fuel tank fuel level indicator fill level sensor, right | 2B |
| CAN B | Interior CAN | 11B |
| CAN B | Interior CAN | 12D |
| CAN C1 | Drive train CAN | 10G |
| CAN C1 | Drive train CAN | 5D |
| CAN HMI | User interface CAN | 17B |
| Flex E | Chassis FlexRay | 15D |
| N10/6 | Front SAM control unit | 9A |
| N10/8 | Rear SAM control unit | 8D |
| N118 | Fuel pump control unit | 5B |
| N127 | Drivetrain control unit | 15F |
| N3/10 | ME-SFI [ME] control unit | 6F |
| N73 | Electronic ignition switch control unit | 14A |
| Y58/1 | Purge control valve | 2F |
