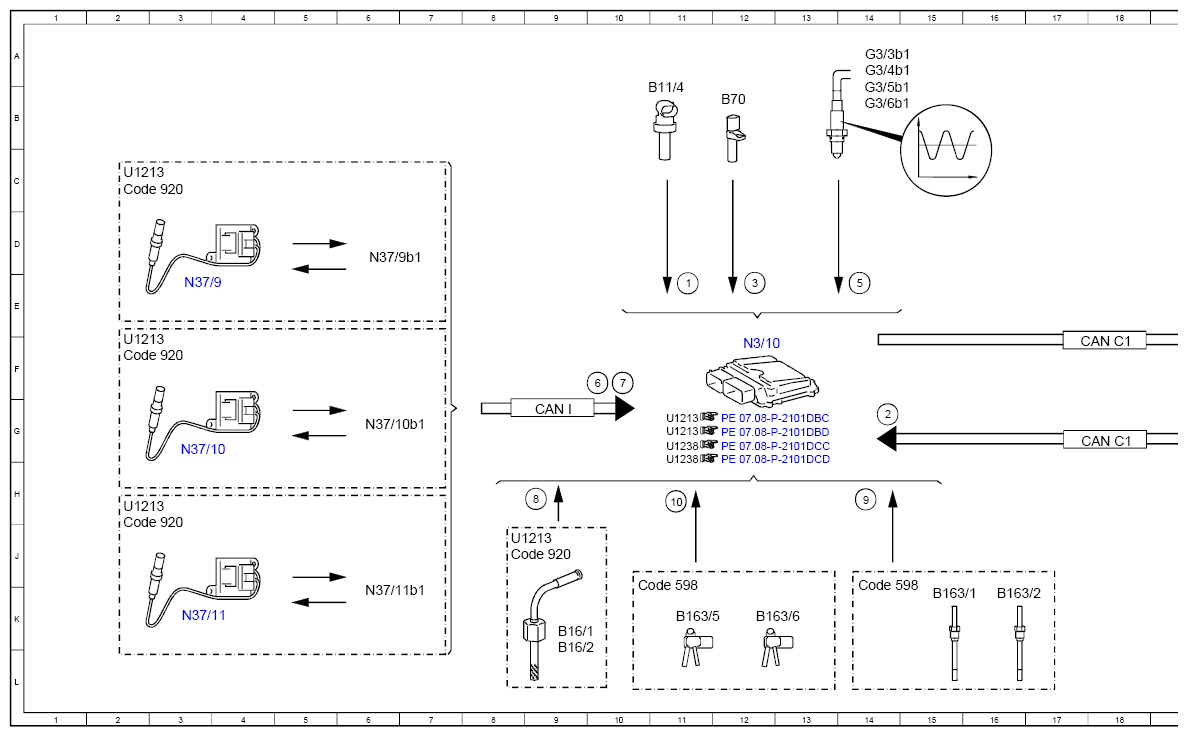

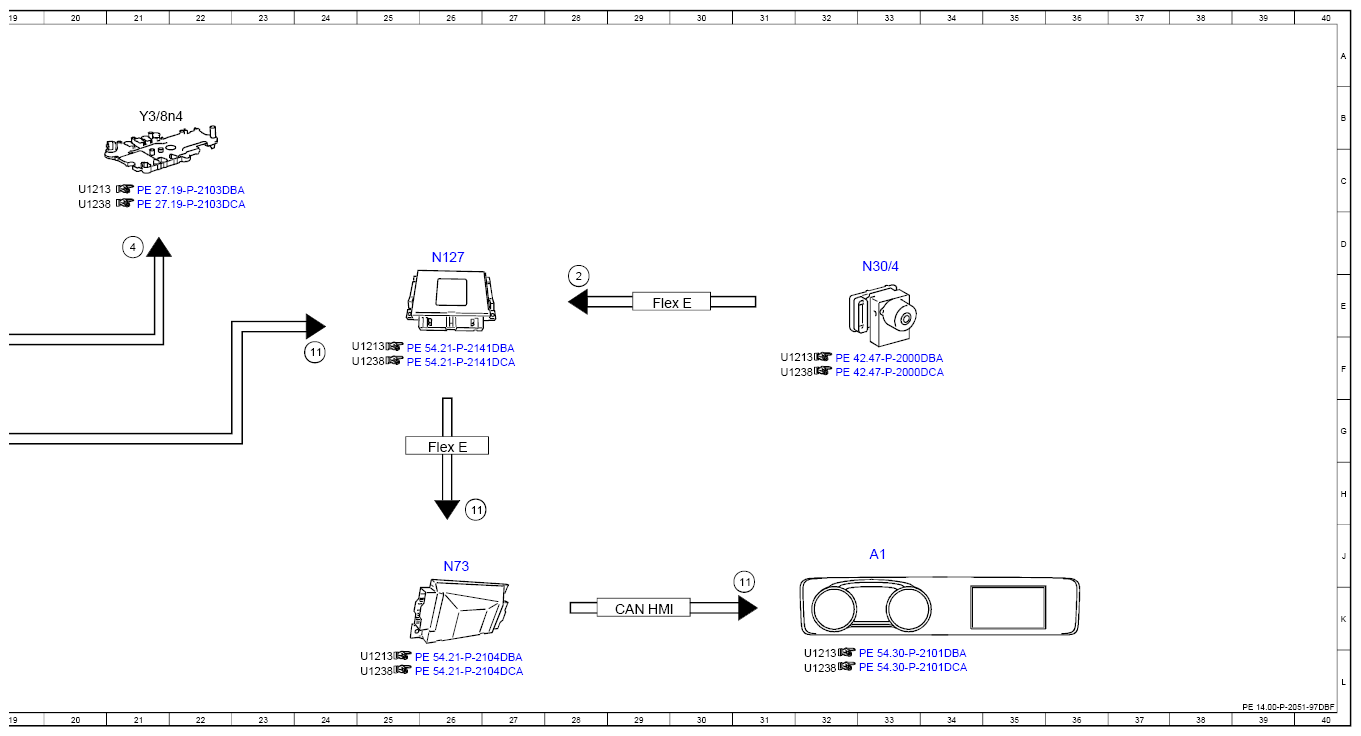

Electrical Function Schematic For Exhaust Treatment - PE14.00-P-2051-97DBF
Engine 276.8 in model 213, 238 up to model year 2021
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Coolant temperature sensor, signal | 11E |
| 10 | Gasoline particulate filter differential pressure sensor, signal | 11H |
| 11 | Engine diagnosis fault message, request | 24F |
| 11 | Engine diagnosis fault message, request | 31K |
| 11 | Engine diagnosis fault message, request | 31K |
| 2 | Wheel speed, signal | 28E |
| 2 | Wheel speed, signal | 14G |
| 3 | Engine speed, signal | 12E |
| 4 | Shift point, increase request | 21D |
| 5 | Oxygen sensor element, signal | 14E |
| 6 | Nitrogen oxide proportion, status | 10F |
| 7 | Oxygen proportion, status | 10F |
| 8 | Exhaust temperature, signal | 9H |
| 9 | Temperature sensor upstream of gasoline particulate filter, signal | 14H |
| A1 | Instrument cluster | 33J |
| B11/4 | Coolant temperature sensor | 11B |
| B16/1 | Temperature sensor upstream of NOx storage catalytic converter, left | 9K |
| B16/2 | Temperature sensor upstream of NOx storage catalytic converter, right | 9L |
| B163/1 | Temperature sensor upstream of left gasoline particulate filter | 15K |
| B163/2 | Temperature sensor upstream of right gasoline particulate filter | 16K |
| B163/5 | Left gasoline particulate filter differential pressure sensor | 11K |
| B163/6 | Right gasoline particulate filter differential pressure sensor | 12K |
| B70 | Crankshaft Hall sensor | 12B |
| CAN C1 | Drive train CAN | 18G |
| CAN C1 | Drive train CAN | 18F |
| CAN HMI | User interface CAN | 29K |
| CAN I | Drive train sensor CAN | 9G |
| Code 598 | Gasoline particulate filter (OPF) with sensor system | 10K |
| Code 598 | Gasoline particulate filter (OPF) with sensor system | 14K |
| Code 920 | Gasoline direct injection with stratified charge | 2C |
| Code 920 | Gasoline direct injection with stratified charge | 2F |
| Code 920 | Gasoline direct injection with stratified charge | 2J |
| Code 920 | Gasoline direct injection with stratified charge | 8J |
| Flex E | Chassis FlexRay | 29E |
| Flex E | Chassis FlexRay | 26G |
| G3/3b1 | Left oxygen sensor element upstream of catalytic converter | 14A |
| G3/4b1 | Right oxygen sensor element upstream of catalytic converter | 14A |
| G3/5b1 | Left oxygen sensor element downstream of catalytic converter | 14B |
| G3/6b1 | Right oxygen sensor element downstream of catalytic converter | 14B |
| N127 | Drivetrain control unit | 26D |
| N3/10 | ME-SFI [ME] control unit | 12F |
| N30/4 | Electronic Stability Program control unit | 33D |
| N37/10 | Control unit of right NOx sensor upstream of NOx storage catalytic converter | 3G |
| N37/10b1 | Right NOx sensor upstream of NOx storage catalytic converter | 6G |
| N37/11 | Control unit of NOx sensor downstream of NOx storage catalytic converter | 3K |
| N37/11b1 | NOx sensor downstream of NOx storage catalytic converter | 6K |
| N37/9 | Control unit of left NOx sensor upstream of NOx storage catalytic converter | 3E |
| N37/9b1 | Left NOx sensor upstream of NOx storage catalytic converter | 6D |
| N73 | Electronic ignition switch control unit | 26J |
| U1213 | Valid for model 213 | 2C |
| U1213 | Valid for model 213 | 2F |
| U1213 | Valid for model 213 | 2H |
| U1213 | Valid for model 213 | 8J |
| U1213 | Valid for model 213 | 20C |
| U1213 | Valid for model 213 | 24F |
| U1213 | Valid for model 213 | 31F |
| U1213 | Valid for model 213 | 25L |
| U1213 | Valid for model 213 | 11G |
| U1213 | Valid for model 213 | 11G |
| U1213 | Valid for model 213 | 32L |
| U1238 | Valid for model 238 | 20C |
| U1238 | Valid for model 238 | 24F |
| U1238 | Valid for model 238 | 31F |
| U1238 | Valid for model 238 | 25L |
| U1238 | Valid for model 238 | 11G |
| U1238 | Valid for model 238 | 11H |
| U1238 | Valid for model 238 | 32L |
| Y3/8n4 | Fully integrated transmission control unit | 21B |
