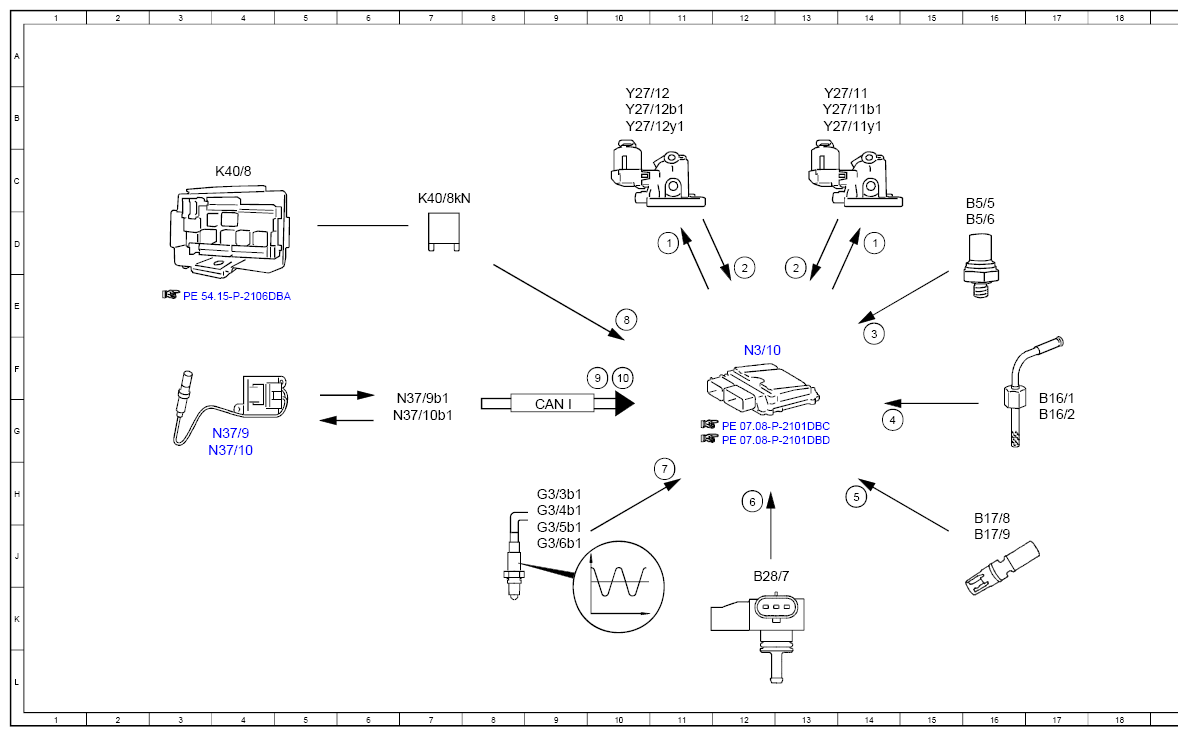

Electrical Function Schematic For Exhaust Gas Recirculation - PE14.20-P-2052-97DBF
Engine 276.8 in model 213 up to model year 2021 with code 920 (Direct petrol injection with stratified charging)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Exhaust gas recirculation valve rotating magnet, actuation | 11D |
| 1 | Exhaust gas recirculation valve rotating magnet, actuation | 14D |
| 10 | Oxygen proportion, status | 10F |
| 2 | Exhaust gas recirculation valve Hall sensor, signal | 12D |
| 2 | Exhaust gas recirculation valve Hall sensor, signal | 13D |
| 3 | Exhaust gas recirculation pressure, signal | 14E |
| 4 | Exhaust temperature, signal | 14G |
| 5 | Charge air temperature sensor, signal | 14H |
| 6 | Engine load, signal | 12H |
| 7 | Oxygen sensor element, signal | 11H |
| 8 | Circuit 87, status | 10E |
| 9 | Nitrogen oxide proportion, status | 10F |
| B16/1 | Temperature sensor upstream of NOx storage catalytic converter, left | 17G |
| B16/2 | Temperature sensor upstream of NOx storage catalytic converter, right | 17G |
| B17/8 | Charge air temperature sensor | 16H |
| B17/9 | Charge air temperature sensor downstream of throttle valve | 16J |
| B28/7 | Pressure sensor downstream of throttle valve | 12J |
| B5/5 | Exhaust gas recirculation pressure sensor 1 | 16C |
| B5/6 | Exhaust gas recirculation pressure sensor 2 | 16D |
| CAN I | Drive train sensor CAN | 9G |
| G3/3b1 | Left oxygen sensor element upstream of catalytic converter | 9H C |
| G3/4b1 | Right oxygen sensor element upstream of catalytic converter | 9H |
| G3/5b1 | Left oxygen sensor element downstream of catalytic converter | 9J |
| G3/6b1 | Right oxygen sensor element downstream of catalytic converter | 9J |
| K40/8 | Engine fuse and relay module | 4C |
| K40/8kN | Ci reu it 87M relay | 7C |
| N3/10 | ME-SFI [ME] control unit | 12F |
| N37/10 | Control unit of right NOx sensor upstream of NOx storage catalytic converter | 4G |
| N37/10b1 | Right NOx sensor upstream of NOx storage catalytic converter | 7G |
| N37/9 | Control unit of left NOx sensor upstream of NOx storage catalytic converter | 4G |
| N37/9b1 | Left NOx sensor upstream of NOx storage catalytic converter | 7G |
| Y27/11 | Left exhaust gas recirculation valve | 13B |
| Y27/11b1 | Left exhaust gas recirculation valve Hall sensor | 14B |
| Y27/11y1 | Left exhaust gas recirculation valve rotating magnet | 14B |
| Y27/12 | Right exhaust gas recirculation valve | 10B |
| Y27/12M | Right exhaust gas recirculation valve Hall sensor | 10B |
| Y27/12y1 | Right exhaust gas recirculation valve rotating magnet | 10B |
