Remove/Install Valves - AR05.30-P-3511MSA

Engine 256.9 in model 213, 238, 257, 290

Courtesy of MERCEDES-BENZ USA

Example illustration

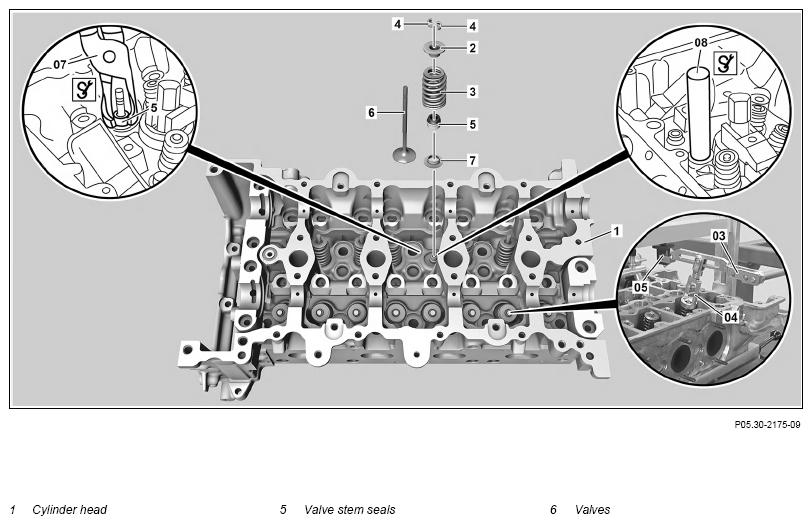

Fig 1: Valves Components Location - Engine 256.9 In Model 213 (Example Illustration)

Courtesy of MERCEDES-BENZ USA

Example illustration

	Remove/install
1	Remove the valve stem seals (5).		AR05.30-P-3510MSA
2	Close the compressed air valve on the assembly device (01) and let compressed air out of the assembly device (01).	Follow operating instructions of manufacturer of assembly device (01).
		Assembly tool	Fig 2
3	Remove the cylinder head (1) from the assembly device (01).	Follow operating instructions of manufacturer of assembly device (01).
		Assembly tool	Fig 2
4	Remove the valves (6). General information on checking valves, valve seats and valve guides		AH05.30-P-1000-02SZ
	Check
5	Check valve stems for formation of burrs and pitting.	If ridging is available, ↓ Deburr valve stems. If pitting is present, ↓ Install new valves (6).
6	Check the valve seats for pitting and cracks.	If pitting or cracks are present, ↓ Replace cylinder head (1).	AR01.30-P-5800MSA
7	Install in the reverse order.

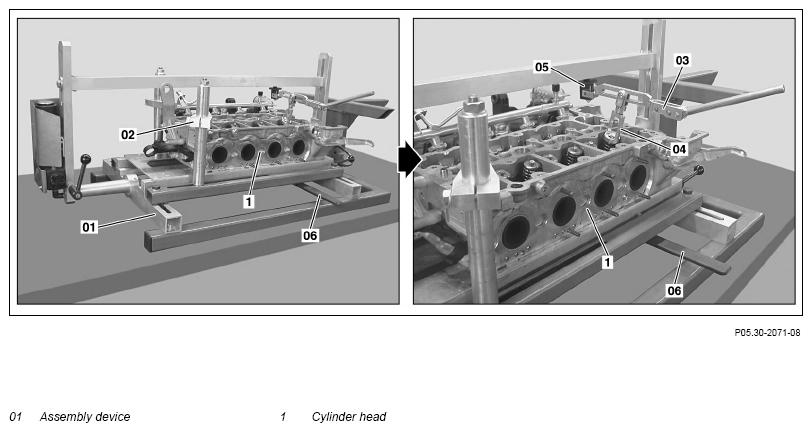

Fig 2: Identifying Assembly Tool (271 589 00 59 00)

Courtesy of MERCEDES-BENZ USA
