Remove/Install Oil Circuit Return Line Of Left Turbocharger - AR09.40-P-6041MNE

Engine 177 in model 213

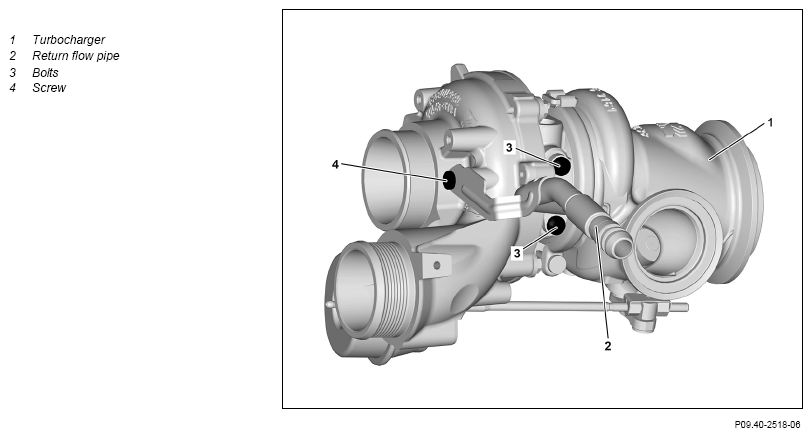

Fig 1: Oil Circuit Return Line Of Left Turbocharger Components Location - Engine 177 In Model 213

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove left ATL (1)		AR09.40-P-6026MNE
2	Clean area around return line (2)	Assembly cleaner	*BR00.45-Z-1028-04A
3	Remove screw (4)	Bolt, oil return line to turbocharger/crankcase	*BA09.40-P-1003-01ZA
4	Remove screws (3)	Bolt, oil return line to turbocharger/crankcase	*BA09.40-P-1003-01ZA
5	Remove return line (2) at turbocharger (1), and seal openings with suitable stop plugs	Replace return line (2) and seal. Record plug	Fig 2
6	Install in the reverse order

TURBOCHARGER

Number	Designation		Engine 177
BA09.40-P-1003-01ZA	Bolt, oil return line to turbocharger/crankcase	Nm	9

Fig 2: Identifying Record Plug (129 589 00 91 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1028-04A	Assembly cleaner	A 000 986 56 01
